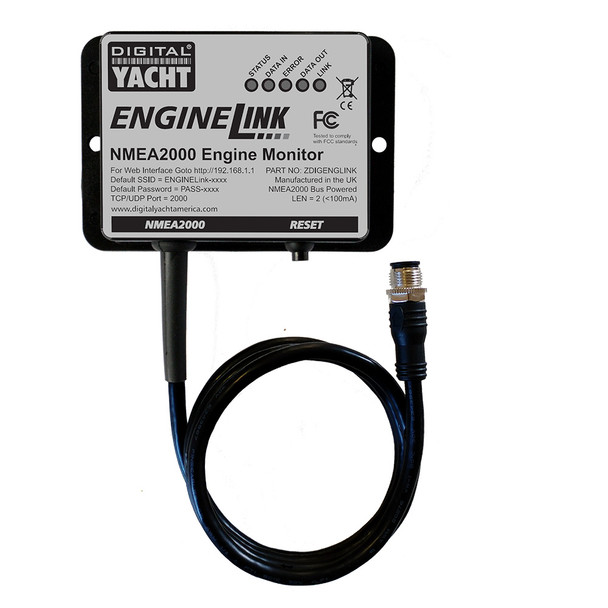

Digital Yacht Engine Link NMEA 2000 Engine Monitor - Wireless Marine Data Display

Engine Link NMEA 2000 Engine Monitor

ENGINELink interface is an NMEA 2000 wireless device that allows mobile phones, iPads, and tablets to display engine data as well as provide a link to boat AIS, depth, and GPS information for popular apps such as Navionics, NavLink, iNavX, SavyNavy, AquaMaps and 100's more. Now boaters can have boat engine data plus their favorite charting app displayed on their mobiles and tablets in real-time.

Engine information such as RPM, temperature, pressure, and battery voltage is displayed as an attractive dashboard display through the web browser so theres no need for a custom app. Setup and installation are easy. Just T into the boat's NMEA 2000 backbone and ENGINELink is self-powered from the network. It creates a secure, password-protected local wifi network with up to 7 devices able to connect simultaneously. UDP and TCP-IP protocols are supported for compatibility with 3rd party apps.

Either single or dual-engine installations are supported. If the vessel is fitted with NMEA 2000 compatible trim tabs or jack plates, then the status of these performance-critical systems is also displayed on the dashboard.

You can configure ENGINELink through its own simple web interface - just open your web browser, enter its IP address and you'll access the attractive dash to display and configure your gauges. No complicated programming software or app is required. iOS and Android devices can display a navigation app and a web browser side by side - so you can have your favorite charting app open alongside engine instrument displays.

You can change the network name password and even merge the wifi to an existing wifi network on board. NMEA 2000 data can be viewed and logged in the web browser allowing for easy fault finding of issues. If the engine generates diagnostic alerts then these can be displayed and interrogated too.

Features:

• Connect to any NMEA 2000-ready engine or network


• Built-in web gauge display no app needed


• Display single or dual-engine gauges


• Configurable gauges choose the parameters you want to monitor


• Set alarm/alert thresholds and view diagnostics


• TCP/UDP streaming of navigation data (GPS/AIS/Depth) for popular navigation apps


• Tank levels, fuel flow, and trip computer-type displays


• Tilt, trim tabs, and jack plate support


• Manufacturer-specific engine modes

Specifications:

• Powered from NMEA 2000 Network fits in seconds


• Password-protected wireless interface 802.11b/g/n


• AP or STA mode (can join another boat wifi network)


• TCP/UDP streaming of navigation data (AIS, GPS, and depth) to popular apps like Navionics, TZ, AquaMaps, iNavX etc


• Supported PGNs (1st Release) 127488, 127489, 127493, 130312, 130316, 127505, 130576, 128780


• Preset gauge displays for leading manufacturers or customize your display


• Flexible, upgradeable interface

Target Markets Applications:

• Brings boat engine data to mobile devices


• Primarily aimed at the US center console and sports fishing market where outboard-powered craft have NMEA 2000 networks with engine data available but will work with any NMEA 2000 ready engine installation inboard or outboard


• Provides additional data displays and extra functionality than MFDs


• Low-cost dashboard repeater accessible anywhere onboard


• Ideal test tool for service technicians


• Will be at the leading edge of electric propulsion PGN implementation


• Logging and replay of data for onshore analysis


• Support for the latest jack plate and trim tab PGNs, for optimizing boat performance


• Connects to Navionics app (and 100s more) for AIS, GPS, and depth data

The Digital Yacht Engine Link NMEA 2000 Engine Monitor offers boaters a seamless way to access engine and vessel data on their mobile devices. This wireless device connects directly to any NMEA 2000-compatible engine or network, providing real-time information such as RPM, temperature, pressure, and battery voltage through an intuitive web-based dashboard. The monitor supports both single and dual-engine configurations and can display additional system data like trim tabs, jack plates, and fuel levels, making it an invaluable tool for boat owners and service technicians alike.

Installation is straightforward—simply tap into the boat's NMEA 2000 backbone, and the device is self-powered from the network. It creates a secure Wi-Fi network that can accommodate up to seven devices simultaneously, compatible with iOS and Android devices. Users can customize gauges, set alert thresholds, and access diagnostics via a simple web interface by entering the device’s IP address. This setup eliminates the need for dedicated apps or complex programming, allowing boaters to monitor engine parameters alongside navigation apps like Navionics, AquaMaps, and iNavX for a comprehensive onboard experience.

The Engine Link supports TCP and UDP protocols to stream navigation data such as GPS, AIS, and depth information to popular apps, enhancing situational awareness. It also offers features like configurable gauges for monitoring tank levels, fuel flow, and trip data, making it suitable for a wide range of vessel types and applications. Whether used as a low-cost dashboard repeater onboard or as a diagnostic tool, this device provides valuable insights into vessel performance and engine health. Its upgradeable interface and support for manufacturer-specific engine modes ensure it remains a versatile and future-proof solution for marine data monitoring.

Features:

• Connects to any NMEA 2000-ready engine or network

• Built-in web gauge display requires no app installation

• Supports both single and dual-engine configurations

• Configurable gauges for monitoring preferred parameters

• Ability to set alarm/alert thresholds and view diagnostics

• Supports TCP/UDP streaming of navigation data for popular apps

• Displays tank levels, fuel flow, and trip computer data

• Supports tilt, trim tabs, and jack plate status monitoring

• Compatible with manufacturer-specific engine modes

• Powered directly from the NMEA 2000 network for quick installation

• Password-protected Wi-Fi with adjustable network settings

• Supports AP or STA mode, enabling connection to existing onboard Wi-Fi

• Supports key PGNs for comprehensive vessel data

• Supports logging and replay of data for analysis

• Ideal for boat owners, technicians, and performance optimization
