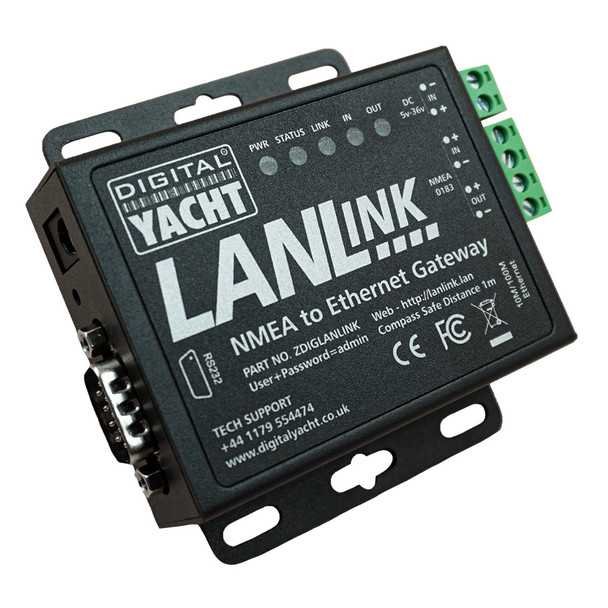

Digital Yacht LANLink NMEA 0183 To Ethernet Gateway ZDIGLANLINK

LANLink NMEA 0183 To Ethernet Gateway

More and more boats now have a wireless router fitted or utilize services like Digital Yacht 4G Connect for internet connectivity. LANLink is an NMEA to ethernet gateway that enables the boats NMEA data to integrate into the router network -allowing connected devices and apps to take advantage of the data.

LANLinkis available in two versions suitable for NMEA 0183 and NMEA 2000 respectively. It features an easy-to-use web interface allowing any device with a browser to configure NMEA baud rates and IP/Port information.

It can support multiple TCP/IP connections and is bi-directional. Once connected to the onboard network via a simple CAT 5/6 patch cable, users can set apps like TZ iBoat, iNavX, NavLink, iSailor, Imray, Weather 4D, etc., by simply entering the IP address and port for streaming NMEA data.

Features:

• NMEA 0183 to ethernet gateway version


• 12/24v DC low power operation


• Connects to router or devices via simple RJ45 Cat 5/6 patch cable connection


• The web user interface for easy setup from the connected device via the browser


• TCP/IP or UDP connection modes support for up to 5 connected devices with TCP/IP


• Bi-Directional


• The NMEA 2000 variant can offer raw mode with encapsulated PGNs or conversion mode (for apps) supporting AIS, instruments, and GPS


• RS232 port for PC apps too


• Status indicators for power, data in-out, network link, and server status

Set-Up:

• Easy menu-driven web UI accessible via web browser on a client device with no complicated software to install for setup


• Configure NMEA data for 4800 or 38400 baud and set mode (TCP/IP or UDP) and port


• Set up with fixed or dynamic IP address


• Status page for system diagnostics

Specifications:

• Power: 10-35V DC (Consumption approx. 50mA at 12V DC)


• Network Port: Ethernet RJ45 10/100MB


• IP Mode: Static or DHCP


• Operating Mode *TCP/IP or UDP; Support for up to 5 connected devices in TCP/IP mode; *Recommended mode of operation


• NMEA Input: Configurable 4800 or 38400 baud (NMEA 0183)


• NMEA 2000 option via iKonvertgateway


• Operating temp: -25 to +70 degrees C


• LED Indicators: Power -Status -Link -Data In -Data Out


• Options: RS232 connectivity (non-concurrent with NMEA)


• Dimensions (W x H): 95mm x 86mm

The Digital Yacht LANLink NMEA 0183 To Ethernet Gateway enables seamless integration of marine NMEA data into your boat's wireless network, making it ideal for modern vessels equipped with routers or internet services like Digital Yacht 4G Connect. This gateway supports NMEA 0183 protocols, allowing your boat's instruments, GPS, AIS, and other devices to stream data directly to connected apps and devices via Ethernet. Its straightforward setup and web interface facilitate easy configuration of baud rates, IP addresses, and ports, enabling quick deployment without complex software requirements. Once connected via a standard RJ45 patch cable, users can stream NMEA data to multiple devices supporting TCP/IP or UDP modes, including popular navigation and weather apps such as iNavX, TZ iBoat, and Weather 4D. The device's bi-directional communication ensures real-time data exchange, improving navigation safety and situational awareness on the water. The NMEA 2000 variant offers additional functionality, including raw PGN encapsulation or conversion modes, supporting AIS, instruments, and GPS data streams, making this gateway versatile for various onboard systems. Optional RS232 connectivity extends compatibility to PC applications, while status indicators provide real-time diagnostics for power, network link, and data flow. The gateway operates efficiently on 12 or 24 volts DC, consuming minimal power, and is built to withstand harsh marine environments with an operating temperature range from -25°C to +70°C. Its compact design, measuring 3.75 inches wide by 3.39 inches high, allows easy installation in tight spaces onboard your vessel. Overall, the Digital Yacht LANLink NMEA 0183 To Ethernet Gateway offers a reliable, flexible solution for integrating your marine data into a modern digital network, enhancing navigation, communication, and data management capabilities on your boat.

Features:

• NMEA 0183 to Ethernet gateway supporting seamless data integration

• Supports 12/24V DC low power operation for efficient energy use

• Connects via simple RJ45 Cat 5/6 patch cable to your router or network devices

• User-friendly web interface for easy setup and configuration from any browser-enabled device

• Supports multiple TCP/IP or UDP connections (up to 5 devices) for versatile networking

• Bi-directional data flow ensures real-time communication between onboard instruments and connected apps

• NMEA 2000 variant offers raw PGN mode or conversion mode for AIS, GPS, and instruments

• RS232 port for compatibility with PC applications

• Status indicators provide diagnostics for power, data, network link, and server status

• Configurable baud rates of 4800 or 38400 for NMEA 0183 data streams

• Flexible IP setup options including static and DHCP modes

• Compact design suitable for tight installation spaces onboard
