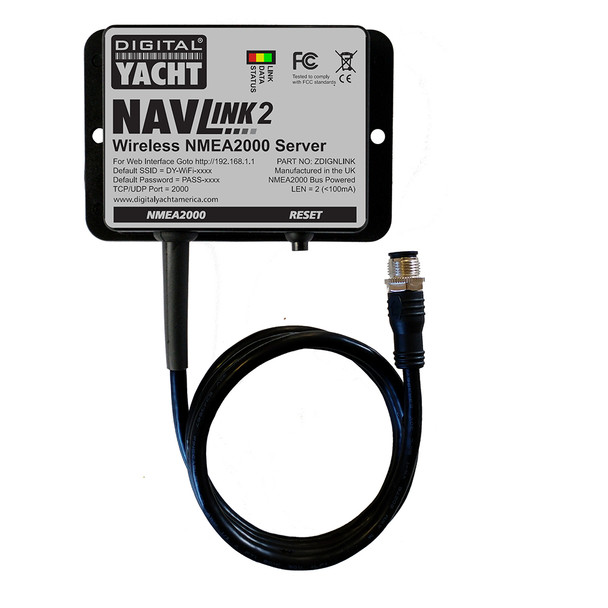

Digital Yacht NavLink 2 NMEA 2000 to WiFi Gateway for Marine Navigation Data

NavLink 2

NavLink 2 is an easy to fit NMEA 2000 to Wifi server designed to make NMEA 2000 navigation data available for apps on smartphones, tablets, iPads and PCs.

Features:

NavLink 2 is an easy to fit NMEA 2000 to Wifi server designed so that NMEA 2000 navigation data can be made available for apps on smartphones, tablets, iPads and PCs. Installation takes seconds as a result of direction connection to the NMEA 2000 back bone and self-powered from the data network.

Once installed, it creates a local WiFi network for devices to connect or can be programmed to join an existing wireless network if one is already installed. This is ideal for devices like the Furuno wireless radar which require operation through their own dedicated network but require NMEA 2000 data integration for charting apps.

NavLink 2 now works with the popular Navionics Boating App forApple iOSandAndroid.Therefore allowing display of GPS and AIS data on your Navionics charts.

Specifications:

• NMEA 2000 to WiFi server


• Self powered from NMEA 2000 bus fits in seconds


• Supports TCP/IP and UDP connection modes


• Provides AIS, navigation and instrument data to apps


• Compatible with all popular apps like iNavX, TimeZero, Weather 4D, Navionics, SailGrib,NavLink, iSailor, SeaPilot, AquaMap etc


• Up to 7 connected devices


• Compatible with Windows, Linux, MAC OS, iOS and Android


• Easy web interface for programming


• Password protected


• Can act as dedicated wireless server or rather can connect to an existing wireless network


• Diagnostic data display mode and LED status lights


• Internal hi gain WiFi antenna


• Super-fast 230KBs operation


• Optional raw data mode for developers and likewise advanced users


• Supplied with NMEA 2000 cable

The Digital Yacht NavLink 2 (Part Number: ZDIGNLINK) is a versatile NMEA 2000 to WiFi server designed to seamlessly transmit marine navigation data to a wide range of devices. Its quick installation involves a simple connection to your existing NMEA 2000 backbone, and it is powered directly from the data network, eliminating the need for separate power sources. Once configured, NavLink 2 creates a secure local WiFi network or can join an existing wireless network, providing flexibility for various marine setups. This feature makes it ideal for integrating NMEA 2000 data with apps on smartphones, tablets, iPads, and PCs, including popular navigation and charting applications like Navionics, iNavX, and Weather 4D. Additionally, it supports connection modes such as TCP/IP and UDP, ensuring compatibility with a broad spectrum of marine electronics and software solutions.

The NavLink 2 is compatible with multiple operating systems including Windows, Linux, Mac OS, iOS, and Android, facilitating seamless data sharing across devices. Its advanced features include support for AIS, navigation, and instrument data, enabling users to monitor vital information like GPS, AIS, and system status on their preferred apps. With support for up to seven connected devices, it is suitable for both small and large boat systems. The device also features a user-friendly web interface for programming, password protection for security, diagnostic data display mode, and LED status lights for quick troubleshooting. The internal high-gain WiFi antenna ensures a robust and fast connection, capable of operating at speeds up to 230 KB/sec. For advanced users and developers, an optional raw data mode is available for custom applications. Supplied with an NMEA 2000 cable, the NavLink 2 offers a comprehensive solution for marine navigation data sharing and integration, streamlining the connection between your NMEA 2000 network and wireless devices for enhanced navigation experience.

Features:

• NMEA 2000 to WiFi server for marine navigation data transmission

• Supports TCP/IP and UDP connection modes for versatile device compatibility

• Self-powered from the NMEA 2000 bus for quick and simple installation

• Creates a dedicated local WiFi network or joins an existing network

• Supports up to 7 connected devices across Windows, Linux, Mac OS, iOS, and Android

• Compatible with popular navigation, charting, and AIS apps including Navionics, iNavX, and Weather 4D

• Provides AIS, navigation, and instrument data for comprehensive marine monitoring

• Easy web interface for configuration and programming with password protection

• LED status lights and diagnostic data display mode for troubleshooting

• Internal high-gain WiFi antenna delivers fast and reliable connections
