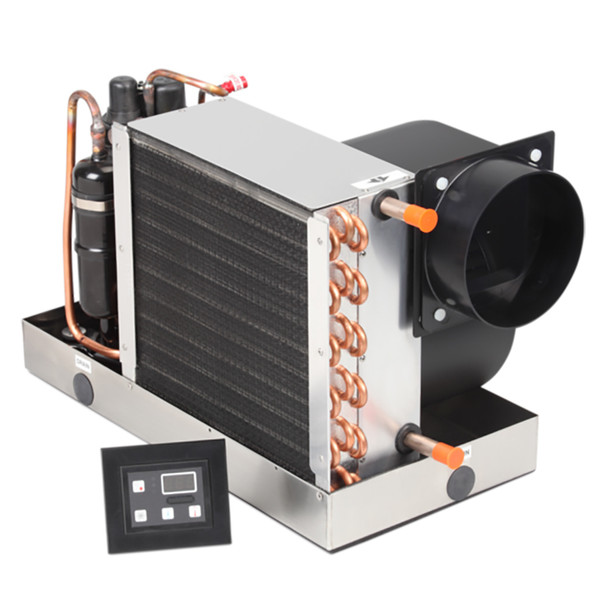

Dometic EnviroComfort ECD6K-HV 6,000 BTU AC Retrofit Kit - 115V for Marine Applications

EnviroComfort ECD6K-HV AC Retrofit Kit - 115V - 6,000 BTU

The Dometic Marine Air 6,000 BTU EnviroComfort Air Conditioning Retrofit Kit provides reverse-cycle cooling and heating capability so you stay comfortable onboard year-round. This 6,000 BTU unit replaces an older self-contained air conditioner of comparable capacity in the 5,000 to 7,000 BTU range.

All units have high-velocity blowers with internal motors for a more compact installation footprint. The blower can be rotated to a horizontal or vertical position for greater installation flexibility. Units are built on an easy-to-plumb stainless-steel drain pan, and the pre-installed return-air filter is removable for cleaning.

ECD kits are ideal for replacing an existing air conditioning system or for a new air conditioning installation. The Retrofit Kit includes the ECD self-contained air conditioning unit and digital control with bezel and is intended to replace an older self-contained air conditioner of comparable capacity.

Legacy Part Number - 207500306

Features:

• High-velocity, rotatable blower for horizontal or vertical installation


• Environmentally friendly R-410A refrigerant


• Easy to use Dometic Passport I/O digital control and display (P/N 9600005997)


• Plastic remote electrical box for convenience in mounting


• Stainless-steel drain pan


• Pre-installed return-air filter, easily removable and cleanable


• Small, compact, space-saving design

Specifications:

• Input voltage - 115 V


• Starting amps - 36 A


• Fuse Max. / Min. - 20 A/12 A


• Input frequency 50/60 Hz


• Refrigerant type - R410A


• Colling capacity - 6,000 BTU


• Min. supply duct size - 4"


• Seawater inlet connection - .625"


• Dimensions - Height 11.25" x Width 16" x Depth 9"

In the Box:

• Self-contained AC unit


• Digital control w/bezel and 15' cable


• Instruction manual

*Sold as an Individual

WARNING: This product can expose you to chemicals including ARSENIC which is known to the State of California to cause cancer or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Dometic EnviroComfort ECD6K-HV AC Retrofit Kit offers reliable year-round climate control for marine environments with its 6,000 BTU capacity. This retrofit kit replaces existing self-contained air conditioners within the 5,000 to 7,000 BTU range, providing an efficient solution for upgrading or installing new cooling and heating systems onboard. Designed with high-velocity blowers that can be rotated for horizontal or vertical installation, the unit ensures flexible mounting options to suit various vessel layouts. It features a stainless-steel drain pan for durability and a pre-installed, removable return-air filter that simplifies maintenance and enhances air quality. The compact design minimizes space requirements, making it ideal for tight spaces on boats and yachts. The included digital control with bezel allows for intuitive operation, and the environmentally friendly R-410A refrigerant ensures eco-conscious performance. This kit is suitable for replacing outdated systems or installing new units, offering a seamless upgrade with minimal disruption. All components are designed for straightforward plumbing and installation, backed by comprehensive instructions to facilitate a smooth setup process. The product's robust construction and versatile features make it a dependable choice for marine climate control. It operates on 115V power and is compatible with standard boat electrical systems, with a starting current of 36 amps. The unit's dimensions are compact, fitting well within confined spaces without sacrificing performance. The kit includes the self-contained AC unit, digital control with bezel and a 15-foot cable, and an instruction manual for quick reference. Please note the product’s environmental warning regarding chemicals like arsenic, and contact the manufacturer directly for support or concerns. This model is sold individually and is engineered to meet marine-specific demands for durability and efficiency.

Features:

• High-velocity, rotatable blower for flexible installation orientations

• Environmentally friendly R-410A refrigerant for eco-conscious operation

• Digital control with bezel for easy system management

• Plastic remote electrical box for convenient mounting

• Stainless-steel drain pan for durability in marine environments

• Pre-installed, removable return-air filter for easy maintenance

• Compact, space-saving design suitable for tight marine spaces
