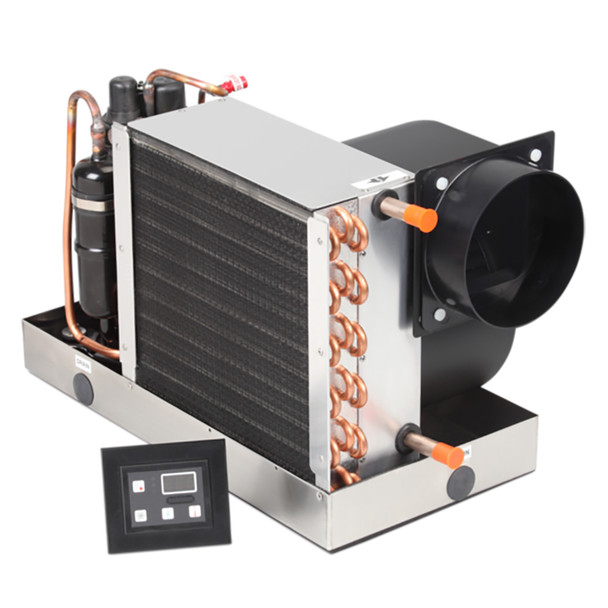

Dometic EnviroComfort ECD6KZ-HV 6,000 BTU AC Retrofit Kit for Marine Use

EnviroComfort ECD6KZ-HV AC Retrofit Kit - 6,000 BTU - 230V

The Dometic Marine Air 6,000 BTU EnviroComfort Air Conditioning Retrofit Kit provides reverse-cycle cooling and heating capability so you stay comfortable onboard year-round. This 6,000 BTU unit replaces an older self-contained air conditioner of comparable capacity in the 5,000 to 7,000 BTU range.

All units have high-velocity blowers with internal motors for a more compact installation footprint. The blower can be rotated to a horizontal or vertical position for greater installation flexibility. Units are built on an easy-to-plumb stainless-steel drain pan, and the pre-installed return-air filter is removable for cleaning.

ECD kits are ideal for replacing an existing air conditioning system or for a new air conditioning installation. The Retrofit Kit includes the ECD self-contained air conditioning unit and digital control with bezel and is intended to replace an older self-contained air conditioner of comparable capacity.

Legacy Part Number - 207500307

Features:

• High-velocity, rotatable blower for horizontal or vertical installation


• Environmentally friendly R-410A refrigerant


• Easy to use Dometic Passport I/O digital control and display (P/N 9600005997)


• Plastic remote electrical box for convenience in mounting


• Stainless-steel drain pan


• Pre-installed return-air filter, easily removable and cleanable


• Small, compact, space-saving design

Specifications:

• Input voltage - 230 V


• Starting amps - 34 A


• Fuse Max. / Min. - 20 A/12 A


• Input frequency 50/60 Hz


• Refrigerant type - R410A


• Colling capacity - 6,000 BTU


• Min. supply duct size - 4"


• Seawater inlet connection - .625"


• Dimensions - Height 11.25" x Width 16" x Depth 9"

In the Box:

• Self-contained AC unit


• Digital control w/bezel and 15' cable


• Instruction manual

*Sold as an Individual

WARNING: This product can expose you to chemicals including ARSENIC which is known to the State of California to cause cancer or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Dometic EnviroComfort ECD6KZ-HV AC Retrofit Kit offers reliable 6,000 BTU cooling and heating performance, designed specifically for marine applications to ensure year-round comfort onboard. This self-contained unit replaces older air conditioning systems with similar capacity, providing an efficient upgrade that supports both cooling and heating functions. Its compact design allows for flexible installation in tight spaces, making it ideal for retrofit projects or new installations on boats and yachts. The high-velocity blower is rotatable, enabling horizontal or vertical mounting, and the stainless-steel drain pan simplifies plumbing with its corrosion-resistant construction. The pre-installed, removable return-air filter facilitates easy maintenance, helping to maintain optimal air quality onboard. The package includes the digital Passport I/O control with bezel, providing intuitive operation and display, along with a plastic remote electrical box for convenient mounting. Environmentally friendly R-410A refrigerant ensures efficient cooling while adhering to modern standards. Power requirements are 230V with a starting current of 34A, suitable for standard marine power systems. The unit’s small footprint, measuring approximately 11.25 inches high, 16 inches wide, and 9 inches deep, allows installation in confined spaces without sacrificing performance. The included components—self-contained AC unit, digital control with a 15-foot cable, and instruction manual—make installation straightforward and hassle-free. Whether replacing an existing system or installing anew, this retrofit kit is designed for durability and ease of use, ensuring consistent comfort in marine environments. Download the owner’s manual here. Please note, this product contains chemicals such as arsenic and may pose health risks, so proper handling and disposal are recommended.

Features:

• High-velocity, rotatable blower for flexible horizontal or vertical installation

• Environmentally friendly R-410A refrigerant for efficient cooling and heating

• Easy-to-use Dometic Passport I/O digital control with display and bezel

• Plastic remote electrical box for convenient mounting options

• Stainless-steel drain pan for corrosion resistance and durability

• Pre-installed, removable return-air filter for easy maintenance

• Compact, space-saving design suitable for tight marine spaces
