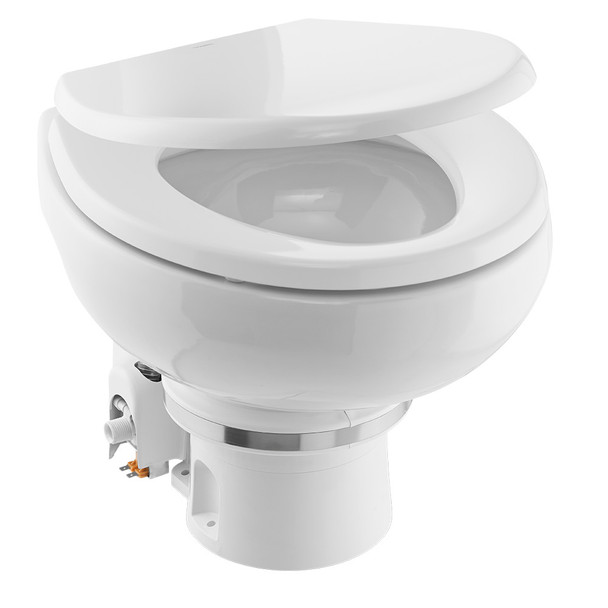

Dometic MasterFlush 7160 White Electric Macerating Toilet with Orbit Base and Raw Water Flush – 12V

MasterFlush 7160 White Electric Macerating Toilet with Orbit Base, Raw Water Flush - 12V

Features:

• Full 360 bowl-to-base rotation allows virtually limitless positioning to accommodate small spaces and diverse plumbing layouts


• Slow Close Seat Lid


• Small footprint to fit in tight spaces


• Dual-Stage impeller/macerator cutting wheel pulverizes waste for the most thorough waste tank pump-out


• Standard Single-function DFS-1 flush switch, allowing a one-motion flush with water


• Flushes on as little as 1/3-gallon (1.2L) of fresh water


• Integrated impeller to draw the raw water in


• Draws only 20 amps at 12V DC; 10 amps at 24V DC


• Freshwater and Raw Water flush models available


• Color: White


• 7100 series MasterFlush has a large residential-style seat and bowl for premium comfort

Specifications:

• Dimensions product depth: 19


• Dimensions product height: 14-3/4


• Dimensions product width: 15


• Net weight: 35 lbs

The Dometic MasterFlush 7160 White Electric Macerating Toilet offers a reliable and space-efficient solution for marine, RV, or small watercraft applications. Featuring a full 360-degree bowl-to-base rotation, this toilet allows for virtually limitless positioning, making it ideal for tight spaces and diverse plumbing configurations. Its compact footprint ensures seamless installation without compromising comfort, thanks to the large residential-style seat and bowl designed for premium user experience. The toilet is equipped with a dual-stage impeller and cutting wheel that pulverize waste thoroughly, ensuring efficient and complete pump-outs of the waste tank.

Operation is simple with a standard single-function DFS-1 flush switch, which provides a one-motion flush using as little as 1/3-gallon (1.2 liters) of water. The integrated impeller draws raw water efficiently for flushing, and the system is designed to work with either freshwater or raw water models, providing flexibility based on your plumbing setup. Its low power consumption—drawing only 20 amps at 12V DC or 10 amps at 24V DC—makes it suitable for systems where power efficiency is critical. The toilet features a slow-close seat lid for added convenience and safety, and its white finish complements most interior décors.

The Dometic MasterFlush 7160 is crafted for durability and ease of maintenance, with features that ensure thorough waste processing and quiet operation. Designed for ease of installation and versatility, this model is an excellent choice for those seeking a high-quality, space-saving macerating toilet that combines functionality, comfort, and efficiency in one package.

Features:

• Full 360 bowl-to-base rotation for versatile positioning in tight spaces

• Slow close seat lid for safety and convenience

• Compact design to fit small or constrained areas

• Dual-stage impeller and cutting wheel pulverize waste thoroughly

• Standard single-function DFS-1 flush switch for easy operation

• Efficient flushing with as little as 1/3-gallon of water

• Integrated impeller draws raw water for flushing

• Low power consumption: 20 amps at 12V DC or 10 amps at 24V DC

• Available in freshwater and raw water flush models

• Large residential-style comfort seat and bowl for a premium experience
