Description

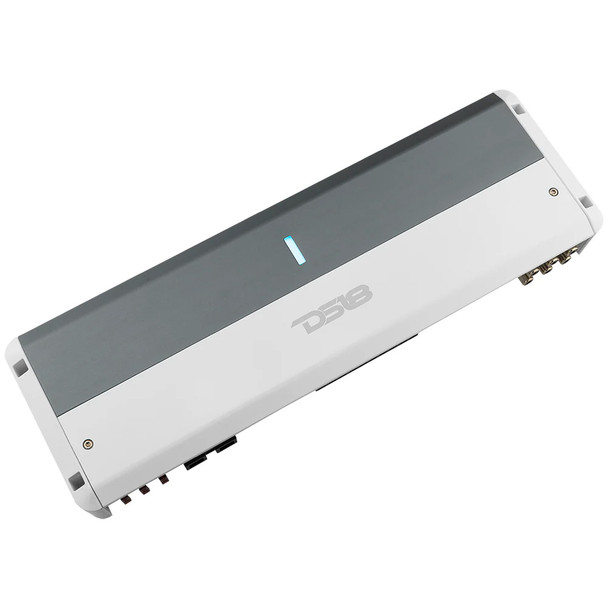

NXL-M5 Full Range 5 Channel Class D Amplifier - 4 x 150W @ 4-Ohm 1 x 600W RMS @ 2-Ohm
DS18s NXL-M5 is a full-range marine amplifier that combines cutting-edge technology, unmatched durability, and mind-blowing sound quality. Utilizing an impressive MAX power of 3600W, the NXL-M5 delivers unrivaled performance that will make a system soar. With its RMS power output of 4 x 150W and a whopping 600W for SUBs, the NXL-M5 guarantees consistent audio performance that is guaranteed to satisfy even the most discerning audiophile. The DS18 NXL-M5 covers the full range of frequencies, ensuring that every beat, note, and whisper is reproduced with unrivaled precision.
Features:
- Marine full range
- 5 channel
- 4 x 150 Watts @ 4 Ohm + 1 x 600 Watts @ 2 Ohm
- Built-in crossover
- Class D
- Water-resistant IPX5
Technical Specifications:
- Number of Channels: 5
- Frequency Response: 20Hz - 20KHz
- 2 Ohm RMS Power Per Channel: 4 x 230W / SUB: 600W
- 4 Ohm RMS Power Per Channel: 4 x 150W / SUB: 300W
- 4 Ohm RMS Power Bridge Channel: 2 x 440W
- Signal-to-Noise Ratio: >90dB
- Product Dimensions: (L x W x H): 14.3 x 4.5 x 1.7
The DS18 NXL-M5 is a versatile and durable marine amplifier designed to deliver high-quality sound in demanding environments. Featuring a full-range 5-channel design, this amplifier provides 4 channels at 150W each into 4 Ohms and a dedicated 600W channel for subwoofers, ensuring rich, detailed audio across the entire frequency spectrum. Its advanced Class D circuitry offers efficient power delivery with minimal heat, making it suitable for marine applications where space and reliability are critical. Built-in crossover controls allow for precise sound tuning, while the water-resistant IPX5 rating provides protection against splashes and moisture, making it an excellent choice for boat or outdoor use. The NXL-M5’s impressive MAX power output of 3600W underscores its ability to handle demanding audio systems, delivering consistent performance that satisfies audiophiles and casual listeners alike. Its compact size makes installation straightforward, fitting neatly into tight spaces without sacrificing power or sound quality.
Features:
- Marine full range amplifier designed for outdoor and aquatic environments
- 5 channel configuration with 4 x 150W RMS @ 4 Ohm and 1 x 600W RMS @ 2 Ohm
- Built-in crossover for precise sound control and frequency management
- Class D amplifier topology for high efficiency and reduced heat generation
- Water-resistant IPX5 rating provides protection against water splashes and moisture
