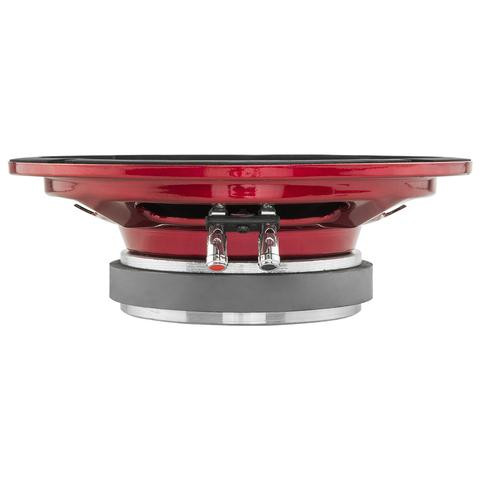

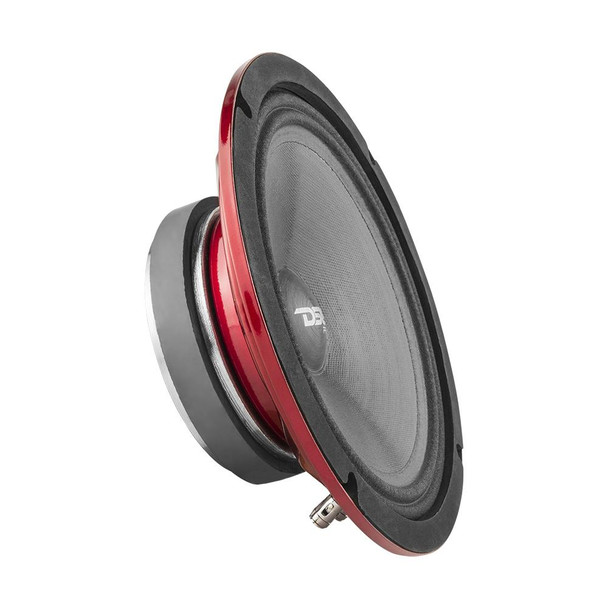

DS18 PRO-SM8.2 Slim 8-Inch Motorcycle Midrange Speaker with IPX6 Water Resistance

Slim 8" Motorcycle Midrange Speaker

The DS18 Slim midrange speaker was made for the motorcycle music fanatics. IPX6 rating, protecting it from any water that might come along the ride.

Specifications:

• Model: PRO-SM8.2


• Type: Midrange Loudspeaker


• Size: 8"


• RMS Power: 250W


• MAX Power: 500W


• Frequency Response: 65-12kHz


• Impedance: 2 ohm


• Sensitivity: 97dB

Materials:

• Surround: Cloth Edge


• Frame: Red Steel Basket


• Cone: Non-Pressed Paper Cone


• Magnet: Ferrite


• Voice Coil Wire: CCAW

Diameters:

• Voice Coil Size: 1.5"


• Magnet Size: 25 oz


• Mounting Depth: 2.45" (55.5mm)


• Cut-Out Dimension: 6.99" (177.4mm)

Parameters:

• Vas 11.321LTR


• Xmax 8 mm


• Fs 110 Hz


• Qms 3.881


• Qes 0.78


• Qts 0.718


• Re 2 Ohms

Sold as an Individual

Designed for motorcycle enthusiasts who demand high-quality sound on the road, the DS18 PRO-SM8.2 Slim 8-inch midrange speaker offers powerful audio performance in a compact form. Featuring an IPX6 rating, this speaker is built to withstand water splashes and rain, making it ideal for outdoor riding conditions. Its robust construction includes a red steel basket and a non-pressed paper cone, ensuring durability and reliable sound reproduction even in challenging environments. The cloth edge surround enhances the speaker's longevity and flexibility, providing a smooth and consistent sound experience.
The PRO-SM8.2 delivers an RMS power of 250 watts and a peak power of 500 watts, capable of producing clear midrange frequencies from 65Hz to 12kHz. Its 1.5-inch voice coil and 25 oz ferrite magnet contribute to efficient magnetic flux and sound clarity. With a sensitivity of 97dB, this speaker offers impressive volume and responsiveness, ensuring your motorcycle audio system is both loud and crisp. It has a low impedance of 2 ohms, compatible with most motorcycle audio setups, and features a mounting depth of 2.45 inches, with a cut-out diameter of 6.99 inches for easy installation.
This midrange speaker's parameters, including a Vas of 11.321 liters, an Xmax of 8 mm, and a resonant frequency of 110 Hz, optimize sound quality across various riding conditions. Its Q factors (Qms, Qes, Qts) indicate a well-balanced performance suitable for midrange sound reproduction. The speaker is sold individually, providing flexibility for customized audio configurations. For detailed installation instructions and maintenance, refer to the owner’s manual available online. Whether you're upgrading your motorcycle's sound system or installing a new setup, the DS18 PRO-SM8.2 ensures excellent sound clarity and durability for your riding adventures.

Features:

• Water-resistant design with IPX6 rating for outdoor motorcycle use

• 8-inch midrange loudspeaker with powerful 250W RMS output

• Constructed with a durable red steel basket and cloth edge surround

• Frequency response range of 65Hz to 12kHz for clear midrange sound

• Efficient 1.5-inch voice coil and 25 oz ferrite magnet for optimal magnetic flux

• Low impedance of 2 ohms compatible with most motorcycle audio systems

• Easy to install with a mounting depth of 2.45 inches and cut-out diameter of 6.99 inches

• Designed for durability and high performance in outdoor riding environments
