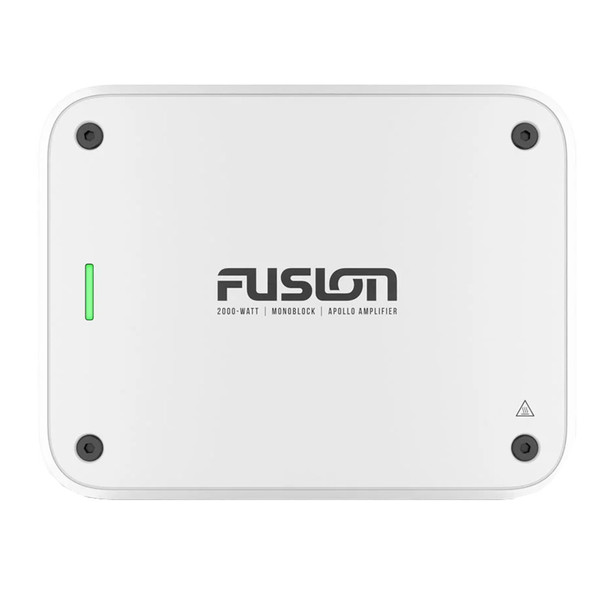

Fusion Apollo Monoblock Marine 650-Watt RMS Amplifier - 2000-Watt Peak Power for Marine Subwoofer Systems

Apollo Monoblock Marine 650-Watt RMS Amplifier

Add extra power to a system with this 2000-watt (650-watt RMS) monoblock amplifier thats specifically designed to power a subwoofer. This efficient, easy-to-install monoblock amplifier works with your compatible Fusion stereo system.

Features:

• Keep the music going for longer without draining your battery as quickly


• No more manual adjustments to your audio settings. The Easy Tune feature does it for you


• A glance at the LED indicators lets you identify if the amplifiers have a short or if theyre overheating


• Less distortion and noise, so you enjoy quality audio


• Mounting brackets are included for simple installation


• Dont worry about potential overheating damage with our ignition protection design

Power Efficiency

The Apollo amplifiers are designed to produce impressive power with less drain on your battery. The monoblock produces 650-watt RMS.

Easy Tune Feature

These amplifiers use the Easy Tune feature, which automatically regulates audio settings. So, users can get the best quality sound without making manual adjustments.

Less Distortion

Some amplifiers distort audio when they add power. Fusions are specifically designed with minimal distortion and noise, so you can enjoy high-quality audio, even at higher volumes.

LED Indicators

Identify electrical issues at a glance. These indicator lights will show you issues with electrical currents and shorts, as well as temperature.

Mounting Brackets

Easily install the amplifiers on board with the included mounting brackets.

Ignition Protected

The ignition-protected design helps prevent potential damage from overheating.

Conformal-Coated PCBS

The amplifiers circuit board has been specially coated to provide extra protection from the marine elements.

2 OHM Stable

Connect up to two speakers per channel, increasing setup options.

Fusion True-Marine Design

The amplifier is designed to last season after season. They have been tested to a high level of protection against salt fog, temperature, vibration, and UV.

In the Box:

• One Apollo monoblock amplifier


• One mounting bracket


• One power connector


• One speaker connector


• Four 8-gauge, flat-head self-tapping screws


• Four 8-gauge, pan-head self-tapping screws (for mounting bracket)


• Four screw covers


• Fuse holder


• Mounting template


• Installation instructions


• Important safety and product information (ISPI)

Specifications:

• Physical Dimensions without Bracket (L x W x H): 9.25" x 7.06" x 1.75" (235 x 180 x 45 mm)


• Physical Dimensions with Bracket (L x W x H): 9.25" x 7.06" x 2.13" (235 x 180 x 50 mm)


• Weight: 4.85 lb (2.2 kg)


• Water Rating: IPX2


• Amplifier Class: Class-D


• CEA-2006 Power Rating: 650 watts RMS x 1 @ 14.4 V input, 4 ohms, < 1% THD


• Total Rated Power Output, 2 Ohm (Watts): 1100 watts RMS x 1 @ 14.4 V input, 2 ohm < 1% THD


• Peak Power (watts): 2000 watts


• Input Sensitivity: 2.15 V RMS


• Input Impedance: 22k ohm


• Operating Voltage: 10.8 V - 16 V DC


• Current Draw, in Standby/off Using Amplifier on Wire: < 5 mA @ 14.4 V input


• Current Draw, On, No Audio: < 1.15 A @ 14.4 V input


• Fuse Rating: 125 A electronic fuse (no replacement necessary)


• Power-Cable Fuse Model and Rating: Bussmann BK/AMI-030 30 A fast-acting


• Ignition Safety Protected (SAE J1171): Yes


• Protection Circuits: Reverse voltage, input under/over voltage, over temperature, and output short circuit


• Operating temperature range: 32 to 122 F (0 to 50 C)


• Warranty: 3 years

Enhance your marine audio experience with the Fusion Apollo Monoblock Marine 650-Watt RMS Amplifier. Designed specifically for marine environments, this amplifier delivers reliable power to your subwoofer system with a peak output of 2000 watts. Its efficient Class-D design ensures optimal power output while minimizing drain on your vessel's battery, allowing for extended listening without sacrificing performance. The compact size and included mounting brackets facilitate straightforward installation, making it ideal for both new setups and upgrades. The amplifier's conformally-coated circuit boards provide extra protection against salt fog, humidity, and other harsh marine elements, ensuring durability season after season.

The Apollo amplifier features an innovative Easy Tune function that automatically adjusts audio settings for the best sound quality without manual intervention. This ensures consistent, high-quality audio at all volume levels, reducing distortion and noise that can compromise sound clarity. LED indicators on the unit allow quick diagnostics, alerting you to issues like electrical shorts or overheating, which are further mitigated by the ignition-protected design and thermal protection circuits. The amplifier is stable at 2 ohms per channel, allowing connection of up to two speakers per channel for flexible system configurations.

Included accessories such as mounting brackets, power and speaker connectors, and a comprehensive installation kit streamline the setup process. With a robust fuse system and advanced protection circuits for reverse polarity, over-temperature, and voltage fluctuations, the Fusion Apollo Monoblock Marine Amplifier offers dependable performance in demanding marine environments. Whether you're upgrading your boat’s audio system or installing a new one, this amplifier provides the power, durability, and ease of use necessary to enjoy high-quality sound on the water.

Features:

• Power: 650 watts RMS, 2000 watts peak for powerful marine audio performance

• Efficient Class-D design for high power output with minimal battery drain

• Easy Tune feature automatically adjusts audio settings for optimal sound quality

• LED indicators for quick diagnostics of electrical issues and overheating

• Less distortion and noise for clear, high-quality audio at high volumes

• Includes mounting brackets for simple installation

• Ignition protected design prevents damage from overheating and electrical faults

• Conformal-coated PCBs offer extra protection against salt fog, humidity, and temperature extremes

• 2 ohm stability allows connection of up to two speakers per channel

• Designed for durability with salt fog, temperature, vibration, and UV testing for reliable marine use
