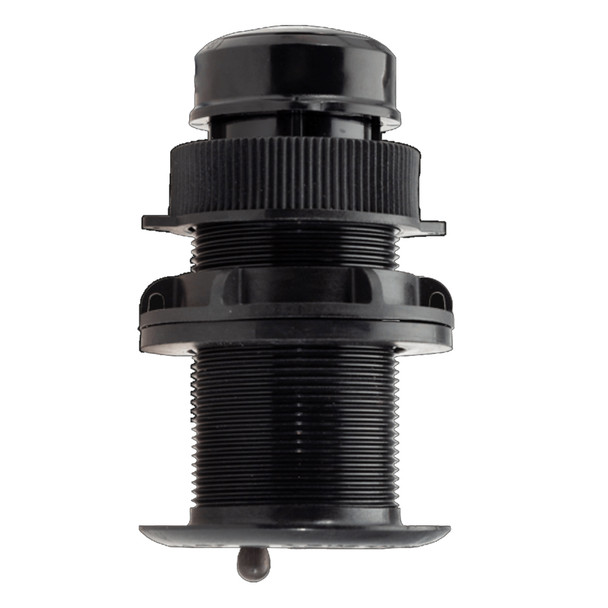

Garmin Airmar DST 810 Smart Transducer - 0 Degree for Marine Depth, Speed, and Temperature Monitoring

Airmar DST 810 Smart Transducer - 0 Degree

This plastic thru-hull NMEA 2000 smart transducer combines precise depth, speed and temperature signals with attitude sensing for heel/trim and pitch/roll data. It can read depths to 330 and offers fast 5 Hz water speed signal output for smoother visualization on compatible chartplotters or other displays.

Wireless BLUETOOTH connectivity makes it easy to manage calibration of sensor data through the Airmar Cast app interface. And the 235 kHz sensor operating frequency helps prevent mutual interference with other echosounder devices on the vessel. The transducers wide, fan-shaped beamwidth of 10x44 degrees enables it to find bottom even when installed on steep deadrise hulls or heeling sailboats.

Specifications:

• Frequency: 235kHz


• Power: 100w


• Beamwidth: 10 x 44 degrees


• Maximum Depth: 300 ft.


• Depth/Speed/Temperature: Depth, Temperature and Speed


• Number of Pins: NMEA 2000


• Supported Deadrise/Transom Angles: 0 to 22 degrees

The Garmin Airmar DST 810 Smart Transducer offers advanced marine sensing capabilities with a durable plastic thru-hull design compatible with NMEA 2000 networks. This transducer provides precise depth readings up to 330 feet, fast water speed signals at 5 Hz, and accurate temperature measurements, making it ideal for navigation, fishing, and vessel control. Its attitude sensing features include heel/trim and pitch/roll data, which enhance vessel stability and navigation accuracy. The wide beamwidth of 10 by 44 degrees ensures reliable bottom detection even on steep deadrise hulls or heeling sailboats. Wireless Bluetooth connectivity allows for effortless calibration management through the Garmin Cast app, simplifying setup and adjustments. The 235 kHz operating frequency minimizes interference with other sonar devices, ensuring clear and reliable data transmission. Supported vessel angles from 0 to 22 degrees make this transducer versatile across a variety of boat types and configurations. Built with high-quality materials, it is designed to withstand marine environments and deliver consistent performance. The integrated NMEA 2000 interface ensures seamless data sharing with compatible chartplotters and marine electronics, enhancing your vessel’s navigational and monitoring capabilities.

Features:

• Frequency: 235kHz for minimal interference and clear signal transmission

• Power: 100 watts for strong, reliable performance

• Beamwidth: 10 x 44 degrees for wide-bottom coverage

• Maximum Depth: 330 feet for deep-water navigation

• Water Speed Signal: 5 Hz for smooth, real-time visualization

• Supported Vessel Angles: 0 to 22 degrees for versatile installation

• Wireless Bluetooth Connectivity: Simplifies calibration via Garmin Cast app

• NMEA 2000 Compatibility: Ensures seamless data sharing with marine electronics

• Durable plastic thru-hull construction designed for marine environments
