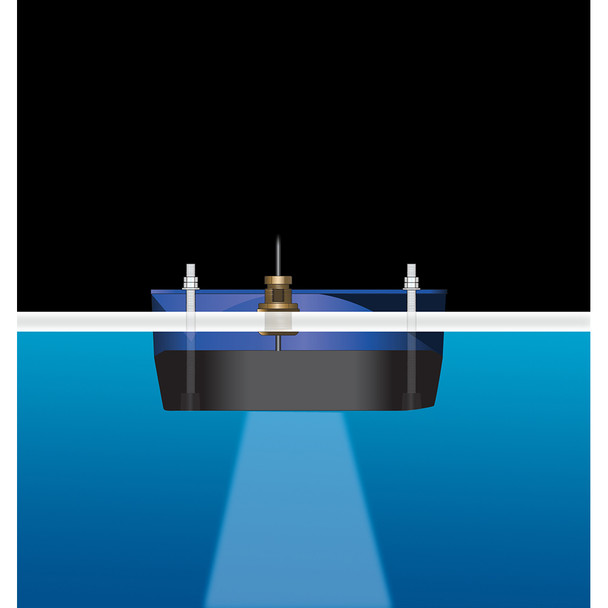

Garmin Airmar R109LM Thru-Hull Transducer with Bare Wires for Deep-Water Fishing

Airmar R109LM Thru-Hull Transducer - Bare Wires

Rely on Airmars broadband transducers for your ultimate fishing mission. Whether youre a commercial fisherman, charter captain, or tournament angler, theres a new game in town! Chirp transducers enable bottom detection down to 3,000M (10,000) with 5 to 10 times greater detail and resolution so precise its possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 107 kHz of total bandwidth in just one installation, saving customers time and money.

As the HARD CORE model in the Chirp Thru-Hull product line, the R109LM Chirps across the following bandwidths:

LM Model - Low Frequency 38-75 kHz/Medium Frequency 80-130 kHz

Features:

• Depth fast-response water-temperature sensor


• LowCHIRPS from 38 kHz to 75 kHz 19 to 10 port-starboard beamwidth (10 to 5 fore-aft beamwidth)


• MediumCHIRPS from 80 kHz to 130 kHz 13 to 8 beamwidth


• 87 kHz of total bandwidth from one transducer


• Covers popular fishing frequencies of 38, 50, 88, and107 kHz plus everything else in the bandwidth


• Fishing Profile: Commercial and recreational inshore and offshore fishing (deep-water canyon and sea-mount tracking)


• Urethane transducer housing with High-Performance Fairing


• Boat Size: 12 m (40) and above


• Hull Type: Fiberglass, wood, or metal


• Exclusive Xducer ID technology

Specifications:

• Hull Deadrise: 0 to 25


• Acoustic Window: Epoxy/urethane


• Weight: 15.1 kg (33.3 lb)

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Garmin Airmar R109LM Thru-Hull Transducer is a high-performance broadband transducer designed for serious inshore and offshore anglers, commercial fishermen, and charter captains. Engineered for vessels 40 feet and larger, it delivers exceptional bottom detection capabilities with a total bandwidth of 87 kHz, enabling detailed fish and structure identification even at depths of up to 10,000 feet. Its advanced Chirp technology allows for 5 to 10 times greater resolution compared to traditional transducers, making it possible to distinguish baitfish, game fish, and underwater structures with precision. This transducer's design incorporates a urethane housing with a high-performance fairing, ensuring durability and consistent performance in challenging marine environments.

The R109LM model covers multiple frequencies, including low Chirp frequencies of 38-75 kHz and medium frequencies of 80-130 kHz, providing flexibility for various fishing conditions. It features a fast-response water-temperature sensor for real-time environmental data, enhancing your fishing strategy. Its beamwidth varies across frequencies, offering broad coverage for deep-water canyon and seamount tracking, making it suitable for both recreational and commercial applications. The transducer's exclusive Xducer ID technology simplifies installation and configuration, ensuring compatibility with Garmin marine electronics.

Constructed with epoxy/urethane epoxy epoxy material, the transducer is built to withstand harsh marine environments. Its weight of approximately 33 pounds and dimensions designed for hull compatibility make it an ideal choice for larger fiberglass, wood, or metal hulls. The R109LM also features a high-performance fairing that improves water flow and signal clarity. Please note that this product is not returnable to the original point of purchase, and users should contact Garmin directly for support or concerns. It is important to be aware of chemical exposure warnings related to this product, as detailed in the safety information provided.

Features:

• Depth and water-temperature sensor for real-time environmental data

• Low Chirp frequencies from 38 kHz to 75 kHz with 19° to 10° beamwidth

• Medium Chirp frequencies from 80 kHz to 130 kHz with 13° to 8° beamwidth

• 87 kHz total bandwidth for versatile fishing applications

• Covers popular fishing frequencies of 38, 50, 88, and 107 kHz

• Designed for deep-water canyon and seamount tracking

• Urethane transducer housing with high-performance fairing for durability

• Suitable for larger vessels 40 feet and above with fiberglass, wood, or metal hulls

• Exclusive Xducer ID technology for easy installation and configuration
