Description

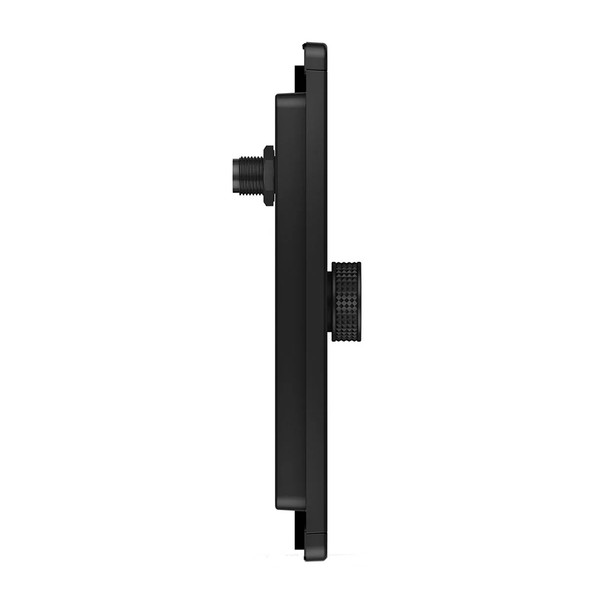

APK 10 Autopilot Keyboard - Vertical
GAIN PRECISE CONTROL OF YOUR AUTOPILOT
Get easy-to-use control of your Reactor 40 autopilot, and put simple, intuitive knob and button activation, heading changes, and more at your fingertips.
Rotary Knob
The LED-encircled knob provides precise heading control and colored reference of autopilot status.
Autopilot Buttons
Dedicated engage and standby buttons make starting and stopping your autopilot easy.
Multipurpose Buttons
Add more autopilot control functions based on your vessel type and setup preferences.
Simple Installation
Connect to your NMEA 2000 network with a single port and cable for integration and power.
Compact Design
A low-profile design matches the height of your GHC 50 instrument and GPSMAP chartplotter. The APK 10 keypad accessory comes in horizontal and vertical mounting options to suit your new or existing helm.
In The Box:
- APK 10 autopilot keypad (vertical)
- Backbone/drop cable (2 m) and T-connector for the NMEA 2000Network
- Mounting hardware (flushand surface)
- Documentation
Specifications:
- Dimensions (WxHxD): Flush mount: 1.6 x 6.2 x 0.28 (40.1 x 157.0 x 7.0 mm)Surface mount: 1.6 x 6.2 x 0.65 (41.1 x 158.0 x 16.4 mm)
- Weight: Vertical: 3.5 oz (100 g)
- Temperature range: From 5 to 158F (from -15 to 70C)
- Material: Fully-gasketed, high-impact plastic
- Water rating: IPX7
- Compass-safe distance: 4.5 (114 mm)
- Powered input: Powered supplied from the NMEA 2000 network
Enhance your vessel's autopilot capabilities with the Garmin APK 10 Autopilot Keyboard in vertical orientation. Designed specifically for seamless integration with the Garmin Reactor 40 autopilot system, this keypad offers precise and intuitive control at your fingertips. Its user-friendly design simplifies heading adjustments, autopilot engagement, and additional functions, making navigation safer and more efficient. The device features a rotary knob encircled with LEDs, providing accurate heading control and visual cues of autopilot status, ensuring quick and reliable operation in all conditions. Dedicated engage and standby buttons allow for effortless activation and deactivation of the autopilot, while multipurpose buttons offer customizable control options tailored to your vessel's setup and preferences. Installing the APK 10 is straightforward; it connects to your NMEA 2000 network with a single port and cable, eliminating complex wiring and enabling quick setup. Its compact and low-profile design matches the height of other Garmin instruments such as the GHC 50 and GPSMAP chartplotters, with options for horizontal or vertical mounting to suit your helm configuration. The device is constructed from fully-gasketed, high-impact plastic, rated IPX7 for water resistance, and operates reliably within a broad temperature range, ensuring durability in marine environments. Included in the package are the vertical APK 10 keypad, a 2-meter backbone/drop cable with T-connector for NMEA 2000 networking, mounting hardware for flush and surface installation, and comprehensive documentation to assist with setup. Whether upgrading your existing autopilot control or installing a new system, the Garmin APK 10 Vertical Autopilot Keyboard offers precise, reliable, and customizable control to enhance your navigation experience.
Features:
- Rotary Knob: LED-encircled for precise heading control and status indication
- Autopilot Buttons: Dedicated engage and standby controls for easy operation
- Multipurpose Buttons: Customizable controls based on vessel setup
- Simple Installation: Connects via a single NMEA 2000 port and cable
- Compact Design: Low-profile, matches other Garmin instruments, with vertical and horizontal mounting options
- Durable Construction: Fully-gasketed high-impact plastic with IPX7 water rating
- Temperature Range: Operates from 5°F to 158°F (-15°C to 70°C)
