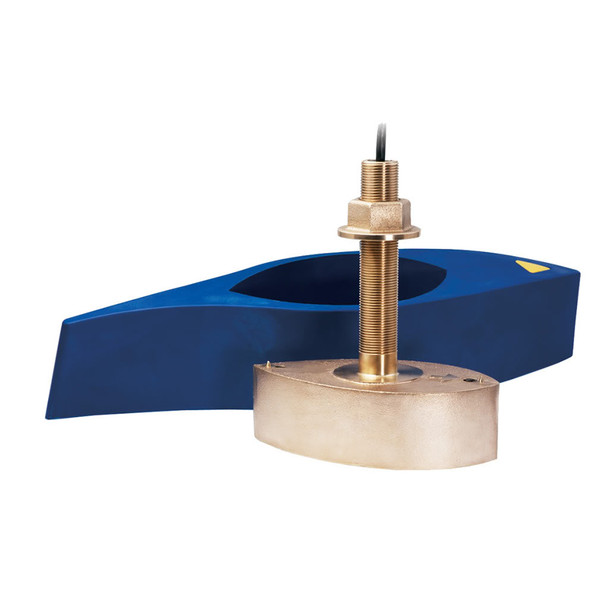

Garmin B275LH-W Bronze Thru-Hull Transducer with 12-Pin Connector and Wide Beam Coverage

B275LH-W Bronze Thru-Hull Transducer - 12-Pin

Get more coverage under your boat with Airmars unique wide beam, high frequency Chirp-ready transducers. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25 beam for all frequencies. The high frequency band results in superior resolution. The constant wide beamwidth provides twice the coverage under the boat and excellent fish arches on the display compared to most high frequency narrow beam transducer options.

The included high-performance fairing improves broadband performance at speeds over 30 knots (34 MPH).

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 500'.

The low frequency band and 1 kW of power also provides great deeper water performance. Get the best of both worlds with Airmars dual frequency Chirp-ready transducers with wide beam coverage.

Features:

• Depth and fast-response water-temperature sensor


• 1 kW for great deep water performance from the low frequency


• Low Frequency: 42 kHz to 65 kHz with maximum depth of 914 m (3000')


• 25 to 16 beamwidth


• High Frequency: 150 kHz to 250 kHz with maximum depth of 152 m (500')
  • 25 constant beamwidth




• 123 kHz of total bandwidth from one transducer


• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth


• High frequency provides superior shallow water performance, bottom detail and fish target separation


• High wide beamwidth provides more coverage under the boat for detecting fish in the upper water column


• Bronze transducer housing with high-performance fairing for optimal performance at higher speeds


• Recommended boat size: 8 m (25') and above


• Hull Type: Fiberglass or wood


• Exclusive Xducer ID technology

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Garmin B275LH-W Bronze Thru-Hull Transducer is designed to deliver exceptional underwater imaging and fish detection capabilities for boats 25 feet and larger. Featuring a durable bronze housing and high-performance fairing, this transducer ensures optimal performance at speeds over 30 knots, making it suitable for demanding offshore and inshore fishing environments. Its unique wide beam, high-frequency Chirp-ready technology provides broad coverage under your vessel, allowing you to detect fish targets with greater clarity and resolution across a range of depths.
Equipped with dual frequency operation, the B275LH-W transducer offers high resolution in shallow waters with its 150 to 250 kHz band and impressive deep-water performance through its low frequency range of 42 to 65 kHz, capable of reaching depths of up to 3,000 feet. The 1 kW power output ensures reliable performance in challenging conditions, while the constant 25-degree beamwidth at high frequencies enhances target separation and bottom detail. The transducer's exclusive Xducer ID technology simplifies installation and configuration, providing seamless integration with Garmin fish finders.
The B275LH-W features an integrated water-temperature sensor for real-time readings and is compatible with a variety of hull types, especially fiberglass and wood. Its broad bandwidth covers popular fishing frequencies like 50 and 200 kHz, along with additional frequencies within the spectrum, offering versatile options for different fishing scenarios. The device's high wide beamwidth expands the detection area under the boat, making it easier to locate schools of fish and structure. Designed for vessels with a hull length of 25 feet and above, this transducer combines durability, speed, and advanced sonar technology to enhance your fishing experience.

Features:

• Depth and fast-response water-temperature sensor

• 1 kW power output for improved deep water performance

• Low Frequency: 42 kHz to 65 kHz with maximum depth of 3,000 feet

• High Frequency: 150 kHz to 250 kHz with maximum depth of 500 feet

• Constant 25-degree beamwidth at high frequencies

• Total bandwidth of 123 kHz from a single transducer

• Coverage of popular fishing frequencies of 50 and 200 kHz

• High-frequency performance for detailed shallow water imaging and fish separation

• Wide beamwidth for increased coverage under the boat

• Durable bronze housing with high-performance fairing for high-speed operation

• Compatible with fiberglass and wooden hulls

• Exclusive Xducer ID technology for easy installation and setup
