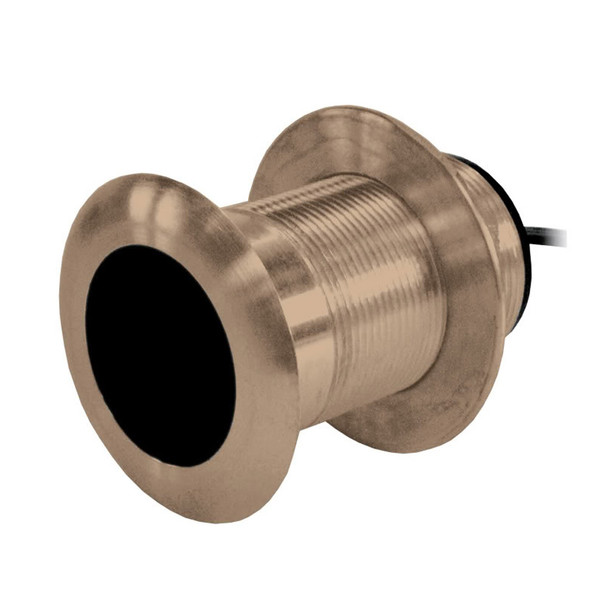

Garmin B619 12 Bronze Thru-Hull Transducer – 8-Pin for Cruise and Sailboats

Tilted Element Thru-Hull

Minimize Your Drag
The B619 model have been the standard in low-profile models for many years. Their large sensitive ceramics allow deep echosounding up to 206M (700'). These nearly flush units minimize drag as only 5mm (2/10") of the housing extends outside of the hull. The bronze B619 provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for moreaccurate depth readings.

Applications

• Cruising powerboats and sailboats




• Sailboats

• Depth only or Depth and temperature




• Fixed 12 tilted versions for 8 to 15 hull deadrise




• Right angle cable exit offers low headroom and protection when transducer is stepped on




• Included rubber washer allows tightening of the hull nut to irregular hull surfaces




• Housings are ABYC H-27 compliant




• Optional temperature sensor




• Bronze housing




• Boat Size: Up to 9M (30')

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Garmin B619 12 Bronze Thru-Hull Transducer (Part Number: 010-10217-21) is designed for optimal performance in small to medium-sized boats up to 30 feet. Its low-profile, nearly flush design minimizes drag, making it ideal for cruising powerboats and sailboats. Featuring a durable bronze housing and a large sensitive ceramic element, this transducer provides deep echosounding capabilities up to 700 feet, ensuring accurate depth readings even in challenging conditions. The tilted ceramic element inside the unit offers built-in deadrise compensation, resulting in a vertical beam that enhances echo return quality for precise measurements. The fixed 12-degree tilt accommodates hull deadrise angles from 8 to 15 degrees, providing versatility across different vessel types. The right-angle cable exit reduces headroom requirements and prevents damage when stepped on, while the included rubber washer ensures a secure fit on irregular hull surfaces. Additionally, an optional temperature sensor can be integrated to provide real-time water temperature data, enhancing navigation and fishing experiences. The transducer complies with ABYC H-27 standards, ensuring safety and quality for marine applications. Suitable for boats up to 9 meters (30 feet), the Garmin B619 12 Bronze Thru-Hull Transducer is a reliable choice for serious boaters seeking accurate depth and temperature data with minimal drag and maximum durability.

Features:

• Provides deep echosounding up to 700 feet for accurate depth measurement

• Nearly flush design minimizes drag by only 0.2 inches of housing protrusion

• Tilted ceramic element offers built-in deadrise compensation for improved echo returns

• Fixed 12-degree tilt for hull deadrise angles between 8 and 15 degrees

• Right-angle cable exit reduces headroom and protects cable when stepped on

• Includes rubber washer for secure mounting on irregular hull surfaces

• Bronze housing construction ensures durability and corrosion resistance

• Optional temperature sensor for water temperature monitoring

• Complies with ABYC H-27 standards for marine safety and quality

• Suitable for vessels up to 30 feet, ideal for cruising and sailboats
