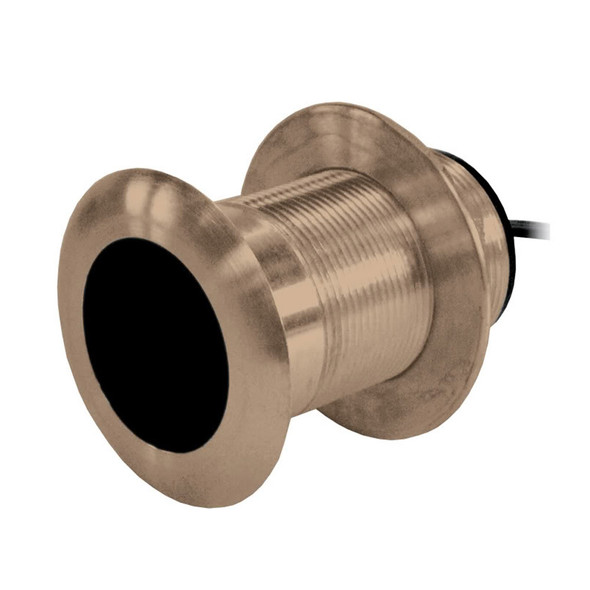

Garmin B619 20 Tilt Bronze Thru-Hull Transducer - 8-Pin for Powerboats and Sailboats

B619 20 Tilt Bronze Thru-Hull Transducer - 8-Pin

Minimize Your Drag
The B619 model have been the standard in low-profile models for many years. Their large sensitive ceramics allow deep echosounding up to 206M (700'). These nearly flush units minimize drag as only 5mm (2/10") of the housing extends outside of the hull. The bronze B619 provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for moreaccurate depth readings.

Applications:

• Cruising powerboats and sailboats




• Sailboats

• Depth only or Depth and temperature




• Fixed 20 tilted versions for 16 to 24 hull deadrise




• Right angle cable exit offers low headroom and protection when transducer is stepped on




• Included rubber washer allows tightening of the hull nut to irregular hull surfaces




• Housings are ABYC H-27 compliant




• Optional temperature sensor




• Bronze housing




• Boat Size: Up to 9M (30')

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Garmin B619 20 Tilt Bronze Thru-Hull Transducer (Part Number: 010-10217-22) is designed for reliable deep-water echosounding and minimal drag for your boating experience. Its low-profile bronze housing extends only about 0.2 inches outside the hull, reducing hydrodynamic resistance and allowing for smoother navigation. The large sensitive ceramic element offers accurate depth readings up to 700 feet, making it suitable for cruising powerboats and sailboats up to 30 feet in length. The transducer's tilted ceramic inside the housing provides built-in deadrise compensation, ensuring precise echo returns regardless of hull angle. Its vertical beam delivers consistent depth measurements without the need for a fairing, simplifying installation and maintenance. The fixed 20-degree tilt version is ideal for hull deadrise angles between 16 and 24 degrees, providing optimal performance across various vessel types. The right-angle cable exit minimizes headroom concerns and protects the cable when stepped on, enhancing durability. An included rubber washer facilitates secure mounting on irregular hull surfaces, ensuring a tight seal and reliable operation. This transducer is ABYC H-27 compliant, adhering to safety and quality standards. Optional temperature sensing capability allows for integrated water temperature monitoring, adding valuable data to your navigation system. Constructed from durable bronze, the Garmin B619 20 Tilt Transducer offers longevity and corrosion resistance in marine environments. Whether you are cruising or sailing, this transducer provides high-performance depth and optional temperature readings, making it an essential component for your marine electronics setup.

Features:

• Depth only or depth and temperature measurement options

• Fixed 20-degree tilt designed for hull deadrise angles between 16 and 24 degrees

• Low-profile bronze housing minimizes drag with only 0.2 inches protruding outside the hull

• Right-angle cable exit for low headroom and cable protection

• Included rubber washer for secure mounting on irregular hull surfaces

• ABYC H-27 compliant construction ensures safety and durability

• Optional temperature sensor for water temperature monitoring

• Suitable for vessels up to 30 feet in length
