Garmin Compact Reactor 40 Hydraulic Autopilot with GHC 50 Instrument Pack for Small Powerboats

Compact Reactor 40 Hydraulic Autopilot with GHC 50 Instrument Pack with GHC 50

Every Captain Needs a Co-Pilot. Designed for boats less than 25 long, this entry-level, Compact Reactor 40 hydraulic autopilot gives you the extra hand you need, so you can explore paradise worry-free.

Features:

• This Reactor 40 hydraulic autopilot is the perfect companion for your hydraulically steered system.


• Yes, it features a solid-state 9-axis AHRS. And yes, that means you can mount it nearly anywhere.


• Even when youre pitching or rolling, this autopilot reacts to sea conditions to keep you on course.


• You just want to get on the water, so we made calibration fast and easy. Thats the power of simplicity.


• Combine with your compatible Garmin chartplotter, and control your autopilot from anywhere on your boat.


• Want more The optional GHC 50 autopilot instrument enhances your autopilot experience.

COREPACK COMPATIBILITY

This corepack is an ideal autopilot solution for single-engine outboard boats that are less than 25 long1. It provides relief from manually holding the wheel to maintain course, especially when cruising at moderate to high speeds2.

SOLID-STATE 9-AXIS AHRS

With its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation. It even reduces power consumption, minimizes heading error, and more.

REACTS TO WATER CONDITIONS

Hold your course on the sea this autopilot reacts to conditions, so you can remain confident even when youre pitching or rolling.

SIMPLE CALIBRATION

All autopilots require commissioning and calibration. Reactor 40 makes it quick and easy. This autopilot is easy to install with flexible mounting options

WIRELESS REMOTE CAPABILITIES

Control your autopilot from anywhere on your boat by using your compatible Garmin devices, including the Reactor autopilot remote, select quatix marine smartwatches, and more (requires a compatible Garmin chartplotter or GHC 50 autopilot instrument).

SHADOW DRIVE TECHNOLOGY

Gain more freedom when maneuvering your boat. This corepack allows for optional Shadow Drive technology to automatically disengage the autopilot when you turn the wheel.

OPTIONAL GHC 50 BUNDLE

Combine the Reactor 40 hydraulic autopilot with the GHC 50 autopilot instrument to add a dedicated touchscreen autopilot display to your helm. Plus, GHC 50 allows you to share data and settings with Garmin MFDs and other installed Garmin devices.

POWERBOAT AND SAILING FEATURES

When connected to your compatible Garmin chartplotter, all Reactor 40 corepacks offer powerboat and sailing features, including heading hold and step turns plus wind hold and tack/jibe when paired with a wind sensor (sold separately). You can even gain additional benefits such as the following route and Auto Guidance+ features3.

Specifications:

• Unit dimensions, WxHxD: 4.3 " x 4.4 " x 1.9 " (10.9 x 11.2 x 4.8 cm)


• Pump dimensions, LxWxH: 6.6 " x 3.9 " x 3.3 " (16.8 x 10.0 x 8.5 cm)


• NMEA output: NMEA 2000


• Supply voltage: 10V to 20V


• Operating temperature: -15 C to 70 C (5 F to 158 F)

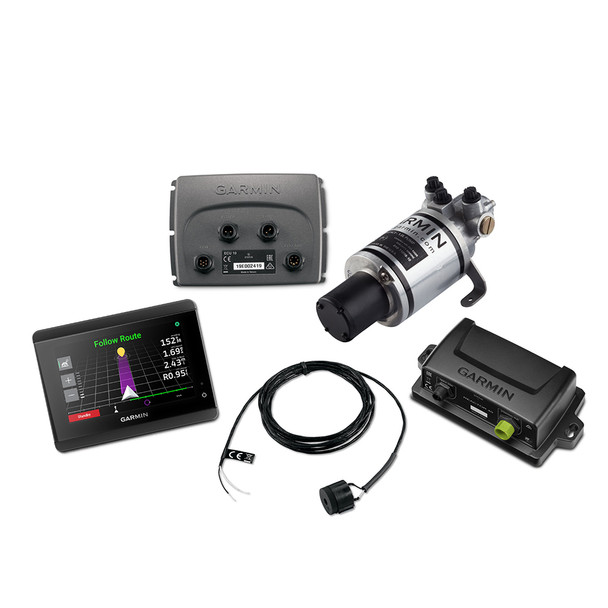

What's in the Box

• GHC 50 helm control display


• Reactor 40 CCU (Course Computer Unit)


• 1.0 L Pump


• ECU (Electronic Control Unit)


• ECU power cable


• Interconnect cable


• Buzzer


• NMEA 2000 drop cables (2 meters)


• NMEA 2000 power cable


• NMEA 2000 T-connectors


• Male and female terminators


• Documentation

1Requires a compatible Garmin chartplotter (sold separately)

2Not recommended for fishing or applications that require holding heading while trolling at low speeds or operating in rough waters. For applications that require precise heading control, our higher-performance Reactor 40 models are recommended. Compact Reactor uses a gear pump design with limited performance relative to similar flow piston pumps. Not recommended for power assist installs, engines above 150 horsepower or boats with more than 12-degree deadrises. Mount pump within 6 of the steering cylinder for best results.

3 Auto Guidance is for planning purposes only and does not replace safe navigation operations

The Garmin Compact Reactor 40 hydraulic autopilot is designed to bring confidence and ease to boaters operating vessels less than 25 feet in length. This autopilot system offers precise course-keeping capabilities, reacting adaptively to sea conditions such as pitching and rolling, ensuring a steady navigation experience even in challenging waters. Its compatibility with hydraulically steered systems makes it an ideal choice for powerboats seeking reliable autopilot assistance without extensive setup. The system is equipped with a solid-state 9-axis AHRS, allowing flexible mounting options in any orientation, which simplifies installation and reduces power consumption while maintaining accurate heading data. This advanced sensor technology ensures consistent performance, minimizing heading errors and providing smooth, reliable autopilot functions. The system’s straightforward calibration process makes setup quick and accessible, reducing installation time and complexity. When paired with compatible Garmin chartplotters, users can control the autopilot remotely, offering convenience during navigation. The optional GHC 50 autopilot instrument enhances the user interface with a dedicated touchscreen display that shares data seamlessly with other Garmin devices, enriching the overall navigation experience. The system supports wireless remote control via Garmin devices, including compatible smartwatches, enabling you to manage your autopilot from anywhere on your boat. Shadow Drive technology adds another layer of control by automatically disengaging the autopilot when you turn the wheel, providing more manual maneuvering freedom. This corepack is ideal for recreational powerboats, offering essential features like heading hold, step turns, and wind-based sailing functions when used with a compatible wind sensor (sold separately). The package includes all necessary components for installation, including the Course Computer Unit, pump, ECU, interconnect cables, and NMEA 2000 connectivity hardware. Designed for durability and ease of use, the Garmin Compact Reactor 40 provides a dependable autopilot experience tailored for smaller powerboats, making your time on the water safer and more enjoyable.

Features:

• Hydraulic autopilot compatible with boats less than 25 feet in length

• Solid-state 9-axis AHRS for flexible mounting and accurate heading data

• Reacts to water conditions for steady course keeping in pitching or rolling seas

• Fast and simple calibration process for quick installation

• Wireless control via compatible Garmin chartplotters and smartwatches

• Optional GHC 50 touchscreen autopilot instrument for enhanced control and data sharing

• Shadow Drive technology for automatic disengagement when turning the wheel

• Supports powerboat and sailing features, including wind hold and tack/jibe with optional wind sensor

• NMEA 2000 network connectivity for seamless system integration

• Includes comprehensive hardware for easy installation and setup
