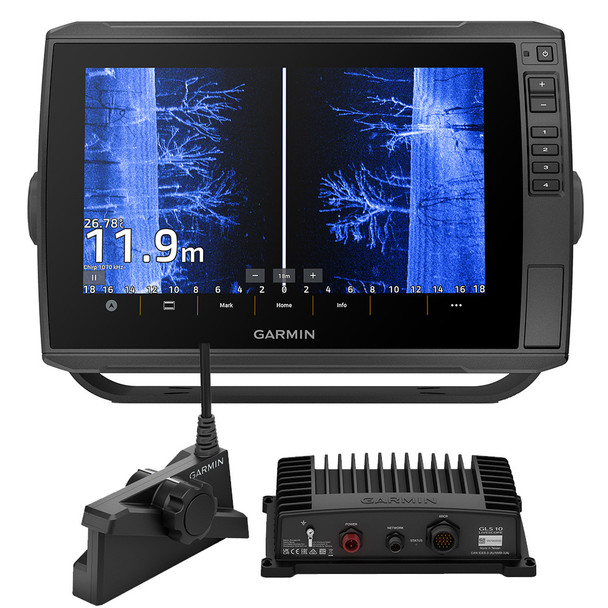

Garmin ECHOMAP Ultra 2 102sv with Livescope LVS34 Bundle

ECHOMAP Ultra 2 102sv Livescope LVS34 Bundle

With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fish-finding capability at the angler's fingertips.

Features:

• ECHOMAP Ultra 2 102sv with Worldwide Basemap


• 10 touchscreen


• Supports livescope sonar, and more


• Wirelessly network; share sonar, waypoints, and routes.


• Capture screen recordings to share fish catches


• Multi-band GPS for improved position accuracy

Livescope Sonar Support

The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).

Built-in UHD Sonar

Select models are bundled with a GT56 transducer, which provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearV and SideV scanning sonars for photo-like images of whats beneath the surface.

Vivid Color Palettes

High-contrast, vivid scanning sonar color palettes make it easier than ever to distinguish targets and structures.

Premium Map Upgrades

Bring a fresh new look and feel to the chartplotter with optional Garmin Navionics Vision+ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery, and more.

Wireless Networking

If users have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on the boat, users can wirelessly share information such as sonar, waypoints, and routes with them.

Additional Features:

• Stay Connected


• Multi-Band GPS - Get improved position accuracy with multi-band GPS


• NMEA 2000 Network Compatibility - Connect to heading sensors, autopilots, Fusion-Link audio systems, and more.


• ActiveCaptain App - Pair with the free smart-device app for software updates, screen recording, Garmin Quickdraw Community data, and more.


• Force Trolling Motor - Wirelessly connect to a Force trolling motor to navigate to waypoints, draw and follow routes, and more.


• Take It With You - The quick-disconnect bail mount lets users quickly install and remove the unit.

In the Box:

• ECHOMAP Ultra 102sv


• Power/data cable


• Bail mount with quick-release cradle


• Protective sun cover


• 8-pin transducer to 12-pin sounder adapter cable


• Hardware


• Documentation

Specifications:

General:

• Dimension: 11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm)


• Weight: 4.0 lbs (1.8 kg)


• Waterproof: IPX7


• Touchscreen: Yes


• Display Type: WXGA, IPS


• Display Size: 8.5" x 5.4"; 10" diagonal (21.7 x 13.6 cm; 25.4 cm diagonal)


• Display Resolution: 1280 x 800 pixels


• Mounting Options: Bail or flush


• Input: Touchscreen with Keyed Assist

Maps Memory:

• Accepts Data Cards: 2 microSD cards


• Waypoints: 5000


• Track Points: 50,000


• Tracks: 50 saved tracks


• Navigation Routes: 100

Sensors:

• GPS: Yes


• GLONASS: Yes


• Galileo: Yes


• BeiDou: Yes


• Has Built-In Receiver: Yes


• Receiver: 10 Hz


• NMEA 2000 Compatible: Yes


• NMEA 0183 Compatible: Yes


• Supports WAAS: Yes


• Supports Multi-Band, Multi-Constellation GPS: Yes

Built-In Maps:

• Built-In Auto Guidance+: Yes


• Garmin Navionics+ Inland Coastal: Yes (see Additional)


• Tide Tables: Yes (see Additional)

Optional Map Support:

• BlueChart g3: Yes


• BlueChart g3 Vision: Yes


• LakeV g3: Yes


• LakeV g3 Ultra: Yes


• Garmin Navionics+: Yes


• Garmin Navionics+ Vision+: Yes


• TOPO 100k: Yes


• Standard Mapping: Yes


• Garmin Quickdraw Contours: Yes

Chartplotter Features:

• AIS: Yes


• DSC: Yes


• Supports Fusion-Link Compatible Radios: Yes


• ActiveCaptain Compatible: Yes


• Sailing Features: Yes

Electrical Features:

• Power Input: 9 to 18 VDC


• Typical Current Draw at 12 VDC: 2.5 A


• Maximum Current Draw at 12 VDC: 5.0 A


• Maximum Power Usage at 10 VDC: 36 W

Sonar Features:

• Displays Sonar: Yes


• Power Output: 600 W


• Traditional Sonar (Dual Frequency/Beam): Built-in (Single Channel Chirp, 70/83/200 Khz, L, M, H Chirp)


• ClearV: Built-in 260/455/800/1000/1200 kHz


• SideV: Built-in 260/455/800/1000/1200 kHz


• Panoptix Sonar: Yes


• Livescope: Yes

Connections:

• NMEA 2000 Ports: 1


• Garmin Marine Network Ports: 2 (Large Connector)


• 12-Pin Transducer Ports: 12-Pin Scanning Sonar


• ANT+ (Connectivity): Yes


• Garmin Wi-Fi Network (Local Connection): Yes

LiveScope Plus LVS34-IF Ice Fishing Transducer

The best of the best just broke new ice with the LiveScope Plus LVS34-IF ice fishing transducer. Pair it with your compatible Garmin chartplotter via your GLS 10 sonar black box to get improved resolution, reduced noise, clearer images, and better target separation in LiveScope Forward and LiveScope Down modes. With a durable, flexible cold-weather transducer cable, youre set for a day on the ice.

In the Box:

• LiveScope Plus LVS34-IF


• 0-degree LiveScope pole mount


• Documentation

Specifications:

• Sonar Type: LiveScope Plus

The Garmin ECHOMAP Ultra 2 102sv with Livescope LVS34 Bundle offers advanced fish-finding capabilities combined with a large, sunlight-readable touchscreen display. Its 10-inch display provides crystal-clear visuals, making it easier to identify fish and underwater structures even in bright sunlight. This versatile chartplotter supports live-scanning sonar, including Garmin’s renowned Livescope technology, allowing anglers to see real-time images beneath the water surface. The bundle includes a high-quality transducer for ultra-high-definition imaging, with support for traditional CHIRP sonar, ClearV, and SideV scanning sonar modes that produce photo-like images of underwater environments. The device supports wireless networking, enabling seamless sharing of sonar data, waypoints, and routes with other compatible Garmin chartplotters on the boat. Capture screen recordings to share your successful catches or analyze sonar views later, enhancing the overall fishing experience. With multi-band GPS and support for multiple mapping options such as Garmin Navionics+ and BlueChart g3, anglers can enjoy precise navigation with detailed charts, satellite imagery, and high-resolution relief shading. The built-in Auto Guidance+ assists in route planning, while the ActiveCaptain app allows for easy updates, community sharing, and connectivity features. The device’s robust construction is waterproof with an IPX7 rating, and its flexible mounting options, including bail or flush mount, provide adaptability for various boat configurations. The system supports NMEA 2000 and NMEA 0183 networks, enabling integration with heading sensors, autopilots, and audio systems, while wireless connectivity facilitates data sharing among devices. The LVS34 transducer is designed for ice fishing, providing enhanced resolution and target separation in cold conditions when paired with the GLS 10 sonar black box. This comprehensive bundle is perfect for serious anglers seeking advanced sonar imaging, reliable navigation, and seamless connectivity for freshwater or saltwater fishing adventures.

Features:

• Large 10-inch sunlight-readable touchscreen display for clear visibility

• Supports live-scanning sonar including Garmin Livescope LVS34 for real-time underwater imaging

• Includes high-definition GT56 transducer with CHIRP, ClearV, and SideV scanning sonar modes

• Wireless networking to share sonar, waypoints, and routes with other compatible Garmin chartplotters

• Capture screen recordings to review or share fishing highlights

• Multi-band GPS for improved position accuracy and detailed mapping options

• Supports Garmin Navionics+ and BlueChart g3 premium maps with optional upgrades

• Built-in Auto Guidance+ for simplified route planning and navigation

• NMEA 2000 and NMEA 0183 compatibility for seamless integration with boat systems

• ActiveCaptain app for software updates, community sharing, and device management

• Robust waterproof design with IPX7 rating and flexible mounting options

• Ice fishing transducer LVS34-IF for enhanced cold-weather performance with GLS 10 sonar black box
