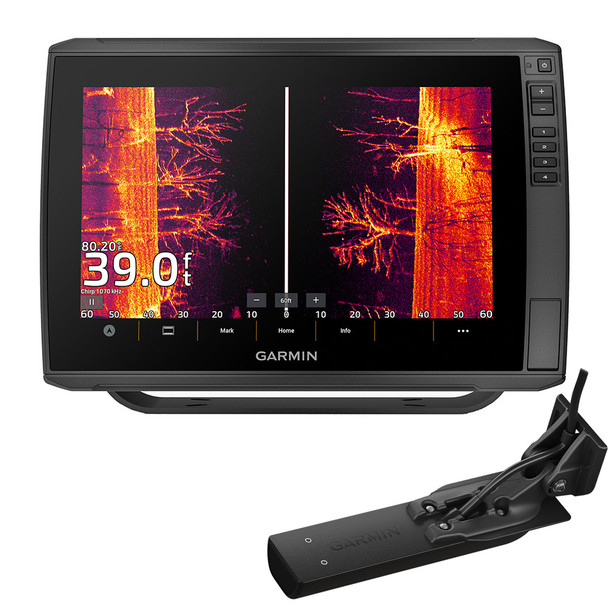

Garmin ECHOMAP Ultra 2 126sv Chartplotter with GT56UHD-TM Transducer and Navionics+ Mapping

ECHOMAP Ultra 2 126sv with GT56UHD-TM Transducer - Garmin Navionics+

With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fish-finding capability at the angler's fingertips. This display has built-in Garmin Navionics+ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.

Features:

• ECHOMAP Ultra 2 126sv with Garmin Navionics+


• GT56UHD-TM Transducer


• 12 touchscreen


• Supports livescope sonar, and more


• Wirelessly network; share sonar, waypoints, and routes.


• Capture screen recordings to share fish catches


• Multi-band GPS for improved position accuracy

Livescope Sonar Support

The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).

Built-in UHD Sonar

Select models are bundled with a GT56 transducer, which provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearV and SideV scanning sonars for photo-like images of whats beneath the surface.

Vivid Color Palettes

High-contrast, vivid scanning sonar color palettes make it easier than ever to distinguish targets and structures.

Preloaded Charts

Experience unparalleled coverage and detail with built-in Garmin Navionics+ mapping, which includes a 1-year subscription for daily updates, depth range shading, and more.

Premium Map Upgrades

Bring a fresh new look and feel to the chartplotter with optional Garmin Navionics Vision+ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery, and more.

Wireless Networking

If users have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on the boat, users can wirelessly share information such as sonar, waypoints, and routes with them.

Stay Connected

Multi-Band GPS

Get improved position accuracy with multi-band GPS

NMEA 2000 Network Compatibility

Connect to heading sensors, autopilots, Fusion-Link audio systems, and more.

ActiveCaptain App

Pair with the free smart-device app for software updates, screen recording, Garmin Quickdraw Community data, and more.

Force Trolling Motor

Wirelessly connect to a Force trolling motor to navigate to waypoints, draw and follow routes, and more.

Take It With You

The quick-disconnect bail mount lets users quickly install and remove the unit.

In the Box:

• ECHOMAP Ultra 126sv with optional Garmin Navionics+


• GT56UHD-TM transducer


• Power/data cable


• Bail mount with quick-release cradle


• Protective sun cover


• Hardware


• Documentation

Specifications

General:

• Dimension: 13.4" x 9.0" x 3.9" (34.1 x 22.9 x 9.8 cm)


• Weight:5.5 lbs (2.5 kg)


• Waterproof: IPX7


• Touchscreen: Yes


• Display Type: WXGA, IPS


• Display Size: 10.3" x 6.4"; 12.1" diagonal (26.1 x 16.3 cm; 30.7 cm diagonal)


• Display Resolution: 1280 x 800 pixels


• Mounting Options: Bail or flush


• Input: Touchscreen with Keyed Assist

Maps Memory:

• Accepts Data Cards: 2 microSD cards


• Waypoints: 5000


• Track Points: 50,000


• Tracks: 50 saved tracks


• Navigation Routes: 100

Sensors:

• GPS: Yes


• GLONASS: Yes


• Galileo: Yes


• BeiDou: Yes


• Has Built-In Receiver: Yes


• Receiver: 10 Hz


• NMEA 2000 Compatible: Yes


• NMEA 0183 Compatible: Yes


• Supports WAAS: Yes


• Supports Multi-Band, Multi-Constellation GPS: Yes

Built-In Maps:

• Built-In Auto Guidance+: Yes


• Garmin Navionics+ Inland Coastal: Yes (see Additional)


• Tide Tables: Yes (see Additional)

Optional Map Support:

• Garmin Navionics+: Yes


• Garmin Navionics+ Vision+: Yes


• TOPO 100k: Yes


• Standard Mapping: Yes


• Garmin Quickdraw Contours: Yes

Chartplotter Features:

• AIS: Yes


• DSC: Yes


• Supports Fusion-Link Compatible Radios: Yes


• ActiveCaptain Compatible: Yes


• Sailing Features: Yes

Electrical Features:

• Power Input: 9 to 18 VDC


• Typical Current Draw at 12 VDC: 2.5 A


• Maximum Current Draw at 12 VDC: 5.0 A


• Maximum Power Usage at 10 VDC: 36 W

Sonar Features:

• Displays Sonar: Yes


• Power Output: 600 W


• Traditional Sonar (Dual Frequency/Beam): Built-in (Single Channel Chirp, 70/83/200 Khz, L, M, H Chirp)


• ClearV: Built-in 260/455/800/1000/1200 kHz


• SideV: Built-in 260/455/800/1000/1200 kHz


• Panoptix Sonar: Yes


• Livescope: Yes

Connections:

• NMEA 2000 Ports: 1


• Garmin Marine Network Ports: 2 (Large Connector)


• 12-Pin Transducer Ports: 12-Pin Scanning Sonar


• ANT+ (Connectivity): Yes


• Garmin Wi-Fi Network (Local Connection): Yes

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Garmin ECHOMAP Ultra 2 126sv integrates a large, sunlight-readable 12.1-inch touchscreen display with advanced fishing and navigation features. This versatile chartplotter comes preloaded with Garmin Navionics+ mapping, offering detailed charts, depth range shading, and daily updates through a one-year subscription. The bundle includes the GT56UHD-TM transducer, which provides Ultra High-Definition side and down imaging along with traditional CHIRP sonar, delivering clear, photo-like images of structures and fish beneath the water’s surface. Its multi-band GPS enhances positional accuracy, and the device supports a wide array of networking options, including wireless sharing of sonar data, waypoints, and routes with other compatible Garmin units on the boat.

Designed for avid anglers and boaters, the ECHOMAP Ultra 2 126sv supports LiveScope sonar, allowing real-time scanning of underwater environments—transducers sold separately. The high-contrast color palettes make target and structure identification easier, even in challenging lighting conditions. Users can also upgrade to Garmin Navionics Vision+ premium charts for high-resolution relief shading, satellite imagery, and more detailed navigation features. The unit features built-in auto guidance and supports multiple map formats, including TOPO and Quickdraw Contours, making it adaptable to various navigation and fishing needs.

Connectivity features include NMEA 2000 and Garmin Marine Network ports, enabling integration with heading sensors, autopilots, and audio systems. The ActiveCaptain app facilitates software updates, screen recordings, and community data sharing. Additional functionalities include wireless connection to Force trolling motors for waypoint navigation, route drawing, and control. The quick-disconnect bail mount ensures easy installation and removal, making this chartplotter suitable for both fixed and portable applications. With waterproof construction and a compact design, the Garmin ECHOMAP Ultra 2 126sv is an advanced, reliable tool for serious anglers seeking precise navigation and superior sonar imaging on the water.

Features:

• 12.1-inch sunlight-readable touchscreen display with WXGA resolution

• Preloaded Garmin Navionics+ maps with free 1-year updates

• GT56UHD-TM transducer provides Ultra HD SideV and ClearV scanning sonar plus traditional CHIRP sonar

• Supports LiveScope live-scanning sonar for real-time underwater imaging (transducers sold separately)

• Multi-band GPS with enhanced positional accuracy

• Wireless network sharing of sonar, waypoints, and routes between compatible units

• High-contrast vivid color palettes for target and structure identification

• Supports optional Garmin Navionics Vision+ premium mapping with satellite imagery

• Built-in auto guidance for easier navigation

• NMEA 2000 and Garmin Marine Network compatibility for system integration

• ActiveCaptain app for updates, data sharing, and screen recording

• Wirelessly connect to Force trolling motors for waypoint navigation and route control

• Quick-disconnect bail mount for easy installation and removal

• Waterproof IPX7 construction for durability in harsh marine environments
