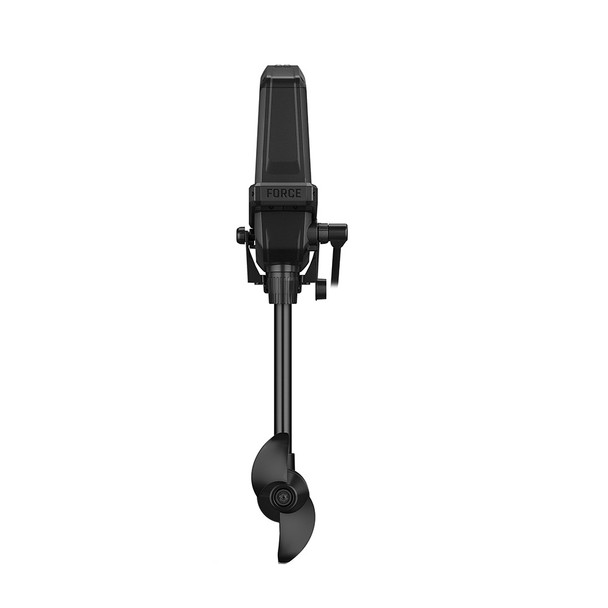

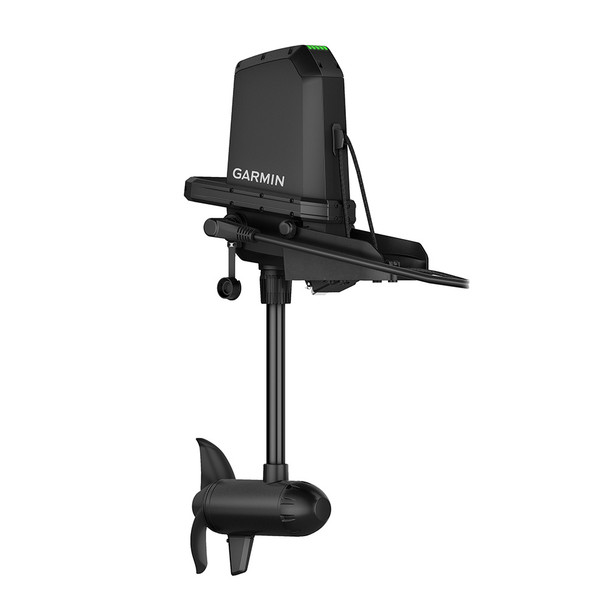

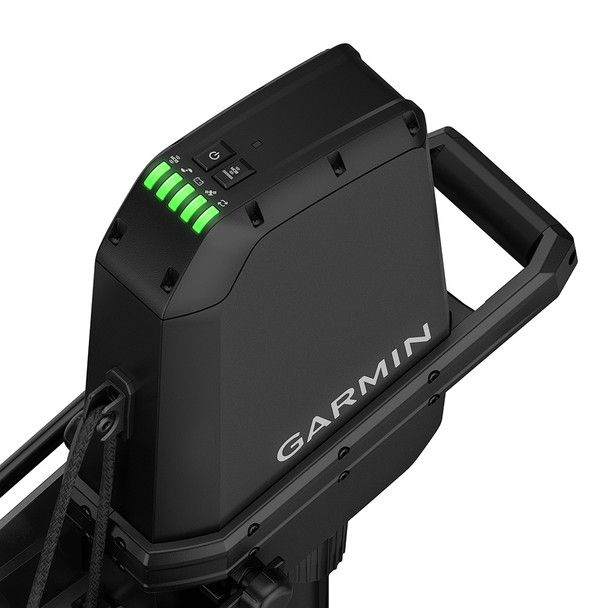

Garmin Force Current Kayak Trolling Motor with Power Steer Foot Pedals

Force Current Kayak Trolling Motor with Power Steer Foot Pedals

LEGENDARY FORCE PERFORMANCE

The Force Current trolling motor is engineered for kayak anglers looking for a rugged propulsion system with superior maneuverability, wireless integration, and wireless throttle and steering control.

• Legendary Force performance and reliability


• Hands-free wireless throttle and steering control with power steer pedals


• Stay on the fish with an anchor lock and multi-band GPS


• Simple and intuitive installation


• Wireless integration with Garmin chartplotters


• Wireless man overboard tag

Power Steer Pedals

Power steer pedals connect wirelessly to the motor to reduce clutter on the deck. This all-in-one steering and throttle solution allows you to fish, troll, cast, and fight without ever setting the rod down. Programmable pedal buttons give you quick access to key features such as anchor lock, heading hold, and more.

Unprecedented Maneuverability

Turn your boat quickly with full forward and reverse thrust in any direction. Weave through tight timber, turn in a tight circle, sneak along shorelines, and creep through weed beds while you fish. Use the included wireless handheld remote for point-and-go gesture steering.

Chartplotter Integration

Wireless integration with your Garmin chartplotters allows you to create routes and tracks for the trolling motor to follow while you fish. You can also adjust the throttle and steering on the chartplotter control bar, adjust motor settings, and more.

Stay Put

The anchor lock technology with multi-band GPS provides our most precise boat positioning technology to help keep the boat in one place, even in windy conditions or strong currents.

Safety First

When wearing the included wireless man overboard tag, the motor cuts off if it detects you fall overboard.

Power That Lasts

An efficient brushless motor design has longer run times than brushed motors and allows you to focus on fishing and not run out of battery.

Floating Remote

Use the included remote to help you navigate with our simple point-and-go technology.

Stow and Deploy

Quickly stow or deploy the prop with one hand when you need to glide over shallow areas with the included stow rope and cleat kit.

Smartwatch Integration

Connect your compatible Garmin smartwatch to control steering, anchor lock, and more from your wrist.

Foot Pedal Buttons

Engage anchor lock, heading hold, and more with programmable foot pedal buttons.

Two Prop Options

Use the high-efficiency prop to maximize battery life, or the weedless prop to cut through aquatic vegetation.

Industry Standard

The 4-hole mounting pattern makes installation easy on many different types of kayaks.

Load Up and Go

Get on and off the water fast with simple motor and pedal installation and removal.

Whisper Quiet

Dont spook the fish; the motor is extremely quiet above and below the water.

Rugged Design

The sturdy alloy shaft and components are built to endure harsh saltwater and freshwater environments with advanced corrosion protection.

Whats In The Box

• Force Kayak Propulsion System


• Left and right foot controls (with rail mounts and kickstands)


• Force trolling motor remote with lanyard


• Black MOB tag


• Power cable


• Pull rope and cleat


• Skeg


• Performance propeller


• Weedless propeller


• Mounting hardware


• Documentation

Specifications:

General

• Color: Black


• Mount Style: 4-hole tilt mount


• Max Thrust: 50 lbs (ISO13342) using high-efficiency propeller at 24 V, 30 lbs (ISO13342) using high-efficiency propeller at 12 V


• Voltage: 12v or 24v


• Electric Steering: Yes


• Built-In Heading Sensor: Yes


• Built-In GPS: yes (dual frequency GPS)


• Warranty: 3-year, limited lifetime on shaft


• Water Rating: IPX7


• Mounting Location: Stern


• Wireless Remote: Yes (included)


• Shaft Length (From Mount to Top of Drive Motor): 16.6 (max); 11.4 (min)


• Power Steer Foot Pedals (Kayak) Compatible: Yes (Included)


• Battery Indicator: Yes


• Variable Speed Control: Yes (20 steps)


• Quatix Remote Control Supported: Yes


• Manual Reverse Control: Yes

Autopilot Features:

• Route Following: Yes


• Anchor Lock: Yes


• Smart Anchor Lock Features: Yes


• Anchor Lock Jog: Yes


• Heading Hold: Yes


• Cruise Control: Yes


• Gesture Features: yes (manual+, heading hold+, jog+)

Power Steer Foot Pedals (Kayak)

• Dimensions: 5.63 x 9.75 x 3.63 (max, single pedal when mounted)


• Wireless Communication: Yes


• Power Installation: Batteries (2 AA)


• AA Battery Life: 1 Full Season


• Water Rating: IPX 7

Remote Features

• Display Size: 1.2 diameter


• Display Resolution: 240 x 240 pixels


• Display Type: color, sunlight-visible, transflective memory-in-pixel (MIP)


• Chartplotter User-Performance Keys: Yes


• Autopilot Feature Control: Yes


• Water Rating: IPX7


• Battery Life: typical use with backlight at low, 43 weeks


• Floats: Yes

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Garmin Force Current kayak trolling motor is engineered for anglers seeking a rugged, high-performance propulsion system combined with advanced maneuverability and seamless wireless integration. Designed to enhance your fishing experience, this motor offers reliable power with a maximum thrust of 50 lbs using the high-efficiency propeller at 24 volts, ensuring smooth operation in various water conditions. Its durable alloy shaft and corrosion-resistant components make it suitable for both saltwater and freshwater environments, providing long-lasting performance season after season. The integrated GPS and heading sensor enable precise navigation and route tracking, while the anchor lock feature maintains your position even in challenging currents or windy conditions, allowing you to focus on fishing without worry. The motor’s IPX7 water rating guarantees protection against water ingress, ensuring dependable operation in wet conditions. The system includes wireless remote control, foot pedals, and compatibility with Garmin chartplotters, offering multiple control options to suit your preferences. The wireless power steer pedals reduce deck clutter and provide an intuitive, all-in-one steering and throttle solution, with programmable buttons for key features like anchor lock and heading hold. The included wireless man overboard tag enhances safety by automatically cutting power if you fall overboard. Quick stow and deploy functions, along with optional weedless or high-efficiency props, make navigating shallow or aquatic vegetation environments effortless. Additionally, the motor supports smartwatch integration, allowing control of steering and anchor functions from your wrist. With a simple installation process and a robust design built to withstand harsh conditions, the Garmin Force kayak trolling motor is the ultimate choice for serious kayak anglers. The package includes the propulsion system, remote, foot pedals, safety tags, mounting hardware, and user documentation, all backed by a three-year warranty and a limited lifetime shaft guarantee.

Features:

• Legendary Garmin Force performance and reliability

• Wireless throttle and steering control with power steer foot pedals

• Advanced GPS with anchor lock and route following capabilities

• Includes wireless man overboard safety tag

• Compatible with Garmin chartplotters for route and motor management

• Adjustable variable speed control with 20 steps

• Powerful brushless motor design for longer run times

• Quick stow and deploy with one-handed operation

• Rugged alloy shaft and corrosion-resistant components for salt and freshwater use

• Quiet operation to avoid spooking fish

• Two propeller options: high-efficiency and weedless for diverse conditions

• Simple 4-hole tilt mount installation compatible with many kayaks

• Smartwatch integration for remote control from your wrist

• Battery indicator and LED status lights for easy monitoring

• Waterproof to IPX7 standards for durability in wet environments
