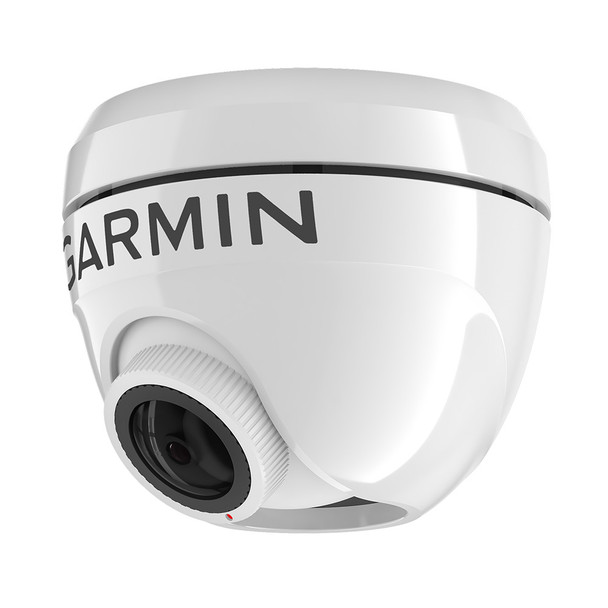

Garmin GC 245 Surface Mount Camera - White for Marine Docking and Navigation

GC 245 Surface Mount Camera - White

BRING VISION TO YOUR HELM

Now theres a high-resolution marine camera that takes the stress out of docking your boat. Enhance proximity awareness and confidence in close quarters with the GC 245 surface-mount camera.

• Distance markers specific to your boat¹ and user defined guidance lines


• 1080p high-resolution output²



• See camera feeds in fisheye or standard view; birdseye view also available1


• Full integration on the Garmin marine network or Garmin Bluenet network

Guidance Lines

Set up your own guidance lines for more confidence avoiding obstacles in the marina.

Distance Markers

Use distance markers calibrated to your vessel by the boatbuilder so you know how far away you are from objects

Two Mounting Options

Installation is simple, and the camera can be mounted with the dome up or down.

Three Camera Views

Get the right perspective with FishEye and standard views with impressive low-light performance; GC 255 is also available with BirdsEye camera view¹.

Multiple Camera Feeds

See up to four camera feeds simultaneously on your compatible MFD; watch the video on networked chartplotters, or set it up on a custom combo page.

See What You Want

Take a closer look with digital zoom, or get a different perspective with digital pan.

In The Box:

• GC 245 surface mount camera


• GVA 10 with integrated power and network cables


• Network adapter cable (500 mm)


• Video coaxial cable (8 m)


• Mounting hardware


• Documentation

Specifications:

• Unit dimensions: 2.4 x 2.4 x 2.2 (6.1 x 6.1 x 5.1 cm)


• Weight: 3.25 oz (92 g)


• Hardwire power: 12V/24V


• Operating current: 300 mA at 12VDC; 200 mA at 24VDC


• Power consumption: 4.5 W


• Connection to chartplotter: IP


• Versatile mounting options: yes (ball-up or ball-down)


• Rugged housing: yes


• Setup: plug-and-play


• Water rating: IPX7


• Video resolution: 1920 x 1080 pixels²



• Video output: H.264 over GMN and BlueNet


• Images: Standard and reverse


• Selectable views: FishEye, standard, BirdsEye (OEM calibrated)


• Augmented reality features: Distance markers (OEM calibrated) and guidance lines (user setup)


• Viewing angle (H/V): 160H/90V


• Operating temperature: -20C to +60C


• Scanning system: progressive scan


• Day/night operation: RGB mode full-time

¹Professional calibration required

²1080p resolution available on select chartplotters only

Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.

The Garmin GC 245 surface-mount camera is designed to enhance your marine navigation and docking confidence with high-resolution video and integrated guidance features. This compact, rugged camera provides 1080p clarity, allowing boaters to monitor close-quarters maneuvers with ease. Its versatile installation options include dome-up or dome-down mounting, making it adaptable to various vessel configurations. The camera's dual views—FishEye and standard—along with optional Birdseye perspective (OEM calibrated), deliver comprehensive situational awareness in different lighting conditions and environments.
The GC 245 integrates seamlessly with Garmin's marine network or Garmin Bluenet, supporting multiple camera feeds simultaneously on compatible multifunction displays (MFDs). You can view up to four feeds concurrently, set up custom layouts, or zoom and pan digitally for closer inspection of specific areas. Features like distance markers calibrated to your vessel and user-defined guidance lines help prevent obstacles, especially in crowded marinas, boosting safety and confidence.
The camera's robust IPX7 water rating and rugged housing ensure durability in harsh marine conditions. Easy plug-and-play setup, combined with professional calibration options for guidance lines and distance markers, makes installation straightforward. The GC 245's low-light performance, wide viewing angles, and full-time RGB day/night operation optimize visibility in all conditions, whether underway or docked. Equipped with comprehensive accessories, including network and coaxial cables, mounting hardware, and documentation, this camera is ready to enhance your boat's safety and navigation capabilities.
Designed for serious boaters, the Garmin GC 245 surface mount camera provides a reliable, high-quality visual solution that simplifies docking, improves obstacle detection, and enhances overall situational awareness on the water.

Features:

• High-resolution 1080p video output for clear, detailed images

• Multiple camera views: FishEye, standard, and optional BirdsEye perspective

• Seamless integration on Garmin marine and Bluenet networks

• Supports up to four camera feeds simultaneously on compatible MFDs

• Customizable guidance lines and calibrated distance markers for obstacle avoidance

• Flexible mounting options: dome-up or dome-down installation

• Rugged, waterproof housing with IPX7 rating for durability in marine environments

• Full-time RGB day/night operation for visibility in all lighting conditions

• Digital zoom and pan features for closer inspection of specific areas

• Simple plug-and-play setup with included mounting hardware and cables
