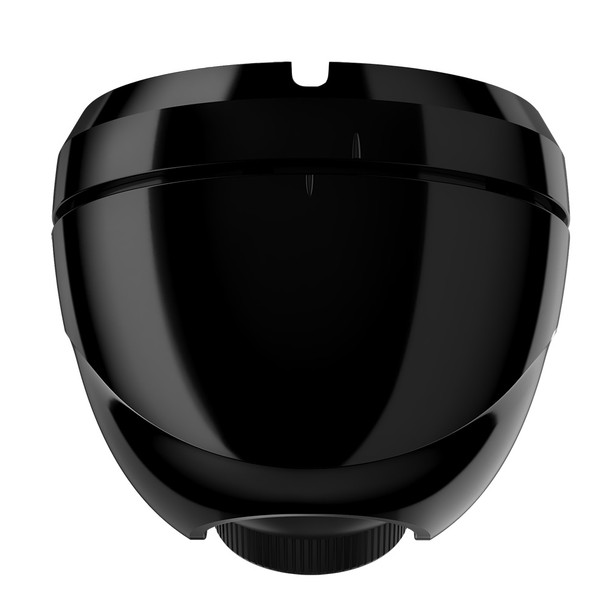

Garmin GC 245 Surface Mount Marine Camera - High-Resolution FishEye and Standard Views

GC 245 Surface Mount Camera - Black

BRING VISION TO YOUR HELM

Now theres a high-resolution marine camera that takes the stress out of docking your boat. Enhance proximity awareness and confidence in close quarters with the GC 245 surface-mount camera.

• Distance markers specific to your boat¹ and user defined guidance lines


• 1080p high-resolution output²



• See camera feeds in fisheye or standard view; birdseye view also available1


• Full integration on the Garmin marine network or Garmin Bluenet network

Guidance Lines

Set up your own guidance lines for more confidence avoiding obstacles in the marina.

Distance Markers

Use distance markers calibrated to your vessel by the boatbuilder so you know how far away you are from objects

Two Mounting Options

Installation is simple, and the camera can be mounted with the dome up or down.

Three Camera Views

Get the right perspective with FishEye and standard views with impressive low-light performance; GC 255 is also available with BirdsEye camera view¹.

Multiple Camera Feeds

See up to four camera feeds simultaneously on your compatible MFD; watch the video on networked chartplotters, or set it up on a custom combo page.

See What You Want

Take a closer look with digital zoom, or get a different perspective with digital pan.

In The Box:

• GC 245 surface mount camera


• GVA 10 with integrated power and network cables


• Network adapter cable (500 mm)


• Video coaxial cable (8 m)


• Mounting hardware


• Documentation

Specifications:

• Unit dimensions: 2.4 x 2.4 x 2.2 (6.1 x 6.1 x 5.1 cm)


• Weight: 3.25 oz (92 g)


• Hardwire power: 12V/24V


• Operating current: 300 mA at 12VDC; 200 mA at 24VDC


• Power consumption: 4.5 W


• Connection to chartplotter: IP


• Versatile mounting options: yes (ball-up or ball-down)


• Rugged housing: yes


• Setup: plug-and-play


• Water rating: IPX7


• Video resolution: 1920 x 1080 pixels²



• Video output: H.264 over GMN and BlueNet


• Images: Standard and reverse


• Selectable views: FishEye, standard, BirdsEye (OEM calibrated)


• Augmented reality features: Distance markers (OEM calibrated) and guidance lines (user setup)


• Viewing angle (H/V): 160H/90V


• Operating temperature: -20C to +60C


• Scanning system: progressive scan


• Day/night operation: RGB mode full-time

¹Professional calibration required

²1080p resolution available on select chartplotters only

Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.

Enhance your boating experience with the Garmin GC 245 Surface Mount Camera, designed to provide crystal-clear 1080p video and reliable performance in marine environments. This camera is ideal for improving proximity awareness during docking and maneuvering close to docks or other vessels, thanks to its advanced features and versatile mounting options. Its rugged IPX7-rated housing ensures durability against water and harsh conditions, making it suitable for extended use on the water. The GC 245 seamlessly integrates with Garmin marine networks, allowing you to view multiple camera feeds simultaneously on your MFD or chartplotters, enhancing situational awareness and safety.

The camera offers multiple viewing modes, including fisheye, standard, and birdseye perspectives, providing comprehensive coverage of your surroundings. Digital zoom and pan features allow for closer inspection or different angles, while guidance lines and calibrated distance markers help you navigate safely, especially in tight marina spaces. The setup is straightforward with plug-and-play connectivity, and installation can be done with the dome mounted either up or down, offering flexibility to suit your vessel’s layout.

Included in the package are the camera, integrated power and network cables, a network adapter cable, video coaxial cable, mounting hardware, and documentation. The GC 245 is engineered to operate efficiently with minimal power consumption and supports both 12V and 24V power sources. Its compact size and lightweight design facilitate easy installation in various locations on your boat, while its ability to connect via IP ensures reliable data transmission. With its robust construction and professional calibration options, the Garmin GC 245 is an essential addition for serious boaters seeking enhanced safety, confidence, and situational awareness on the water.

Features:

• High-resolution 1080p video output for clear images

• Multiple viewing modes: FishEye, standard, Birdseye (OEM calibrated)

• Guidance lines and calibrated distance markers for precise navigation

• Flexible mounting options: dome up or down

• Supports up to four camera feeds simultaneously on compatible MFDs

• Digital zoom and pan for closer inspection and different perspectives

• Rugged IPX7-rated waterproof housing for durability in harsh marine environments

• Plug-and-play setup with easy installation

• Versatile power compatibility: 12V/24V DC

• Operates effectively across a wide temperature range from -20°C to +60°C
