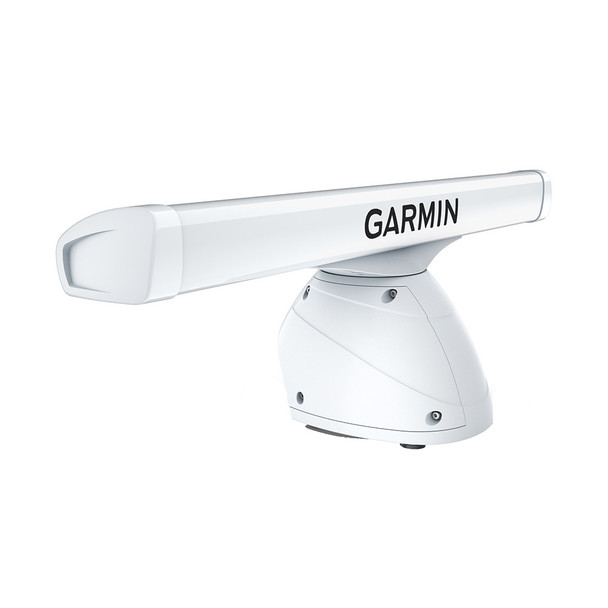

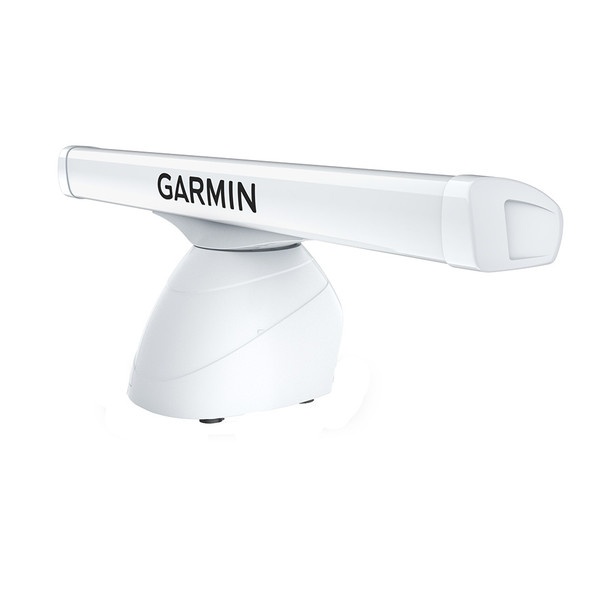

Garmin GMR 2534 xHD3 4' Open Array Radar with Pedestal - 25kW Marine Radar System

GMR 2534 xHD3 4 Open Array Radar Pedestal - 25kW

SCAN WITH THE MAGNETRON POWER OF GARMIN OPEN-ARRAY RADAR

Combining high-definition imaging with the latest Garmin platform technology, this robust 4 open-array radar offer superior weather, obstacle and traffic detection for mariners cruising or fishing offshore.

• Up to 96-nautical mile range


• Scan Averaging Technology


• Improved Target-Size Processing


• Split-Screen Dual-Range Display


• 100-Knot Commercial Grade Wind Rating1


• Quiet Open-Array Drive Motor

New Scan Averaging Technology

A first for Garmin magnetron radar, scan averaging helps filter out sea clutter and interference to enhance the detection and display of consistent targets.

Angular Target-Size Adjustment

Pulse expansion and angular target-size processing techniques optimize on-screen object shapes for better interpretation at all range scales.

True Echo Trails

A historical trail of boats on the water is displayed on the screen, removing relative motion influence to help you quickly identify moving targets and potential collision threats.

Dual Range with Overlay

A single radar antenna is capable of providing split-screen, side-by-side images on your compatible chartplotter, with independent range setting and controls for both close and long range. Overlay either or both ranges on a chart.

Dynamic Auto Gain

Gain automatically adjusts levels to optimum settings for harbors, near shore and offshore in open waters.

Radar Overlay

See overlaid images on your chartplotters map screen (with appropriate sensors, sold separately).

High-Resolution Radar

Pick out targets at a distance, thanks to narrow horizontal beamwidth and high antenna gain.

Dual-Radar Support

This provides redundancy and allows each display unit to pull data from different sources.

Dynamic Sea Filter

Radar gain automatically adjusts sea clutter for calm, medium and rough sea conditions.

Auto Bird Gain

Locate flocks of birds at the waters surface where baitfish are also likely to be found.

MARPA Target Tracking

Track up to 30 targets to help avoid collisions (with appropriate sensors, sold separately).

Guard Zone

Set the safety zone, and receive an alarm when an object enters the zone.

Range and Bearing Cues

Variable range markers and electronic bearing lines allow rapid measurements of distance and bearing to vessels and land.

Includes:

• GMR xHD3 25 kW open array radar with 4 antenna


• Power cable (15 m/49.21 ft)


• BlueNet network cable (15 meters)


• BlueNet Network to RJ45 Adapter Cable


• Mounting hardware kit and template


• Installation instructions

Dimensions:

• 4 array - 1325 x 122 x 170 mm / 52.2 x 4.8 x 6.7


• Pedestal: 520 x 328 x 314 mm / 20.5 x 12.9 x 12.4

Weight:

• 4 array and pedestal - 28.4 kg

Specifications:

• Waterproof: IPX6


• Max Wind Load: 80KT (100KT with optional voltage converter upgrade)


• Antenna length: 48 in. (122 CM)


• Rotation Speed (RPM): 24 and 48 RPM


• Beam Width: 1.8 horizontal, 23 vertical


• Maximum Range: 96 nautical miles


• Minimum Range: 20 meters


• Radar Type: Open-array

Electrical Features:

• Power Input: 10-32 V DC


• Power Consumption (Standby): 18 W


• Typical Power Consumption, Transmitting (Normal mode): 70 W


• Transmit Power: 25 kW

14-kW versions require optional equipment (sold separately) for 100-knot wind rating

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Enhance your marine navigation with the Garmin GMR 2534 xHD3 4-foot open array radar, designed for superior offshore weather, obstacle, and traffic detection. Combining high-definition imaging with advanced Garmin platform technology, this radar offers a range of up to 96 nautical miles, making it ideal for both cruising and fishing expeditions. Its robust 25 kW power output and high-gain antenna deliver crystal-clear targets at long distances, ensuring safe and efficient navigation in challenging conditions. The radar's quiet open-array drive motor provides reliable operation, even in demanding environments, with a 100-knot wind rating that supports heavy weather conditions.

The GMR 2534 xHD3 features innovative Scan Averaging Technology, which filters out sea clutter and interference to improve target detection, especially in rough seas. Angular target-size adjustment enhances object shape interpretation across various ranges, while true echo trails display the historical movement of vessels for quick collision assessment. The split-screen dual-range display allows independent range control and overlay capabilities, enabling simultaneous close and long-range scans on compatible chartplotters. Dynamic auto gain automatically adjusts signal sensitivity based on water conditions, optimizing visibility in harbors, nearshore, and open waters.

Additional capabilities include radar overlay on your chartplotter's map, high-resolution target detection thanks to a narrow beamwidth, and support for dual-radar inputs for redundancy. The radar automatically adjusts sea clutter through its Dynamic Sea Filter and locates flocks of birds with auto bird gain, indicating baitfish presence. MARPA target tracking supports monitoring of up to 30 targets, helping to avoid collisions, with optional sensors sold separately. Safety features such as guard zones and range and bearing cues provide real-time alerts and measurements, enhancing situational awareness. The package includes the radar unit, pedestal, power and network cables, mounting hardware, and installation instructions for a seamless setup.

Constructed to withstand harsh marine environments with an IPX6 waterproof rating and a maximum wind load of 80 knots (upgradable to 100 knots), the Garmin GMR 2534 xHD3 is built for durability and reliability. Its 48-inch antenna rotates at 24 or 48 RPM, with a beam width of 1.8° horizontally for precise target detection. Power input ranges from 10 to 32 volts DC, with typical power consumption of 70 watts during transmission. Whether for commercial or recreational use, this radar system provides comprehensive situational awareness, making it a valuable addition to any vessel's navigation suite. Please note that some features, such as 100-knot wind rating and MARPA tracking, may require optional accessories sold separately. This product is designed for marine use and is not suitable for truck freight due to oversized packaging.

Features:

• Up to 96 nautical miles range for long-distance detection

• Scan Averaging Technology filters sea clutter for clearer targets

• Improved target-size processing for better object interpretation

• Split-screen dual-range display for simultaneous close and far scans

• 100-knot commercial-grade wind rating supports heavy weather conditions

• Quiet open-array drive motor ensures reliable and smooth operation

• Angular target-size adjustment enhances on-screen object shapes

• True echo trails display vessel movement history

• Dynamic auto gain automatically optimizes signal sensitivity

• Radar overlay compatible with Garmin chartplotters for integrated mapping

• High-resolution radar with narrow beamwidth for target clarity

• Supports dual radar inputs for redundancy and multiple displays

• Dynamic Sea Filter adjusts sea clutter across different water states

• Auto bird gain aids in locating surface bird flocks and baitfish

• MARPA target tracking monitors up to 30 targets for collision avoidance

• Guard zone feature for alerting when objects enter safety zones

• Range and bearing cues provide quick distance and directional measurements

• Includes radar unit, pedestal, power and network cables, hardware kit, and instructions

• Built to withstand harsh marine environments with IPX6 waterproof rating
