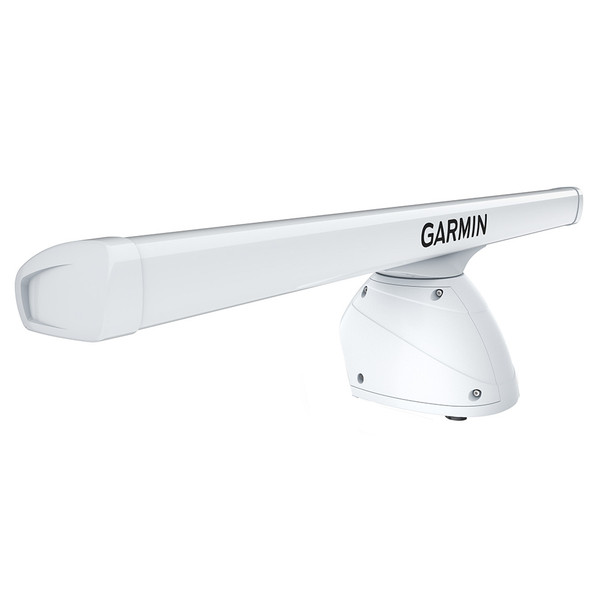

Garmin GMR 2536 xHD3 6' Open Array Radar and Pedestal - 25kW Marine Navigation System

GMR 2536 xHD3 6 Open Array Radar Pedestal - 25kW

SCAN WITH THE MAGNETRON POWER OF GARMIN OPEN-ARRAY RADAR

Combining high-definition imaging with the latest Garmin platform technology, this robust 4 open-array radar offer superior weather, obstacle and traffic detection for mariners cruising or fishing offshore.

• Up to 96-nautical mile range


• Scan Averaging Technology


• Improved Target-Size Processing


• Split-Screen Dual-Range Display


• 100-Knot Commercial Grade Wind Rating1


• Quiet Open-Array Drive Motor

New Scan Averaging Technology

A first for Garmin magnetron radar, scan averaging helps filter out sea clutter and interference to enhance the detection and display of consistent targets.

Angular Target-Size Adjustment

Pulse expansion and angular target-size processing techniques optimize on-screen object shapes for better interpretation at all range scales.

True Echo Trails

A historical trail of boats on the water is displayed on the screen, removing relative motion influence to help you quickly identify moving targets and potential collision threats.

Dual Range with Overlay

A single radar antenna is capable of providing split-screen, side-by-side images on your compatible chartplotter, with independent range setting and controls for both close and long range. Overlay either or both ranges on a chart.

Dynamic Auto Gain

Gain automatically adjusts levels to optimum settings for harbors, near shore and offshore in open waters.

Radar Overlay

See overlaid images on your chartplotters map screen (with appropriate sensors, sold separately).

High-Resolution Radar

Pick out targets at a distance, thanks to narrow horizontal beamwidth and high antenna gain.

Dual-Radar Support

This provides redundancy and allows each display unit to pull data from different sources.

Dynamic Sea Filter

Radar gain automatically adjusts sea clutter for calm, medium and rough sea conditions.

Auto Bird Gain

Locate flocks of birds at the waters surface where baitfish are also likely to be found.

MARPA Target Tracking

Track up to 30 targets to help avoid collisions (with appropriate sensors, sold separately).

Guard Zone

Set the safety zone, and receive an alarm when an object enters the zone.

Range and Bearing Cues

Variable range markers and electronic bearing lines allow rapid measurements of distance and bearing to vessels and land.

Includes:

• GMR xHD3 25 kW open array radar with 6 antenna


• Power cable (15 m/49.21 ft)


• BlueNet network cable (15 meters)


• BlueNet Network to RJ45 Adapter Cable


• Mounting hardware kit and template


• Installation instructions

Dimensions:

• 6 array - 1938 x 122 x 170 mm / 76.5 x 4.8 x 6.7


• Pedestal: 520 x 328 x 314 mm / 20.5 x 12.9 x 12.4

Weight:

• 6 array and pedestal - 30.4 kg

Specifications:

• Waterproof: IPX6


• Max Wind Load: 80KT (100KT with optional voltage converter upgrade)


• Antenna length: 48 in. (122 CM)


• Rotation Speed (RPM): 24 and 48 RPM


• Beam Width: 1.1 horizontal, 23 vertical


• Maximum Range: 96 nautical miles


• Minimum Range: 20 meters


• Radar Type: Open-array

Electrical Features:

• Power Input: 10-32 V DC


• Power Consumption (Standby): 18 W


• Typical Power Consumption, Transmitting (Normal mode): 70 W


• Transmit Power: 25 kW

14-kW versions require optional equipment (sold separately) for 100-knot wind rating

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Garmin GMR 2536 xHD3 6' open array radar offers advanced marine detection capabilities suitable for offshore cruising and fishing. Equipped with a 25kW transmitter and a high-definition imaging platform, this radar system provides reliable weather, obstacle, and traffic detection at distances up to 96 nautical miles. Its robust design, along with a waterproof IPX6 rating and a 100-knot wind rating (with optional upgrade), ensures durability in harsh marine environments. The system includes a 6-foot antenna and a sturdy pedestal, making it suitable for various vessel sizes and configurations. Its detailed features such as scan averaging technology and true echo trails enhance target visibility and movement tracking, greatly improving situational awareness for mariners.

The radar's dual-range capability with overlay allows users to monitor close and distant targets simultaneously, with independent range settings and controls. Dynamic auto gain and sea clutter filtering adapt to different sea conditions, providing clearer images and reducing false signals. The system also offers MARPA target tracking, capable of tracking up to 30 objects to assist in collision avoidance, and guard zones for safety alerts. Additional features such as variable range markers and electronic bearing lines facilitate quick measurements and navigational decisions. The system integrates seamlessly with compatible chartplotters, enabling overlay of radar images onto navigational charts for comprehensive situational awareness.

Designed with user convenience in mind, the Garmin GMR 2536 xHD3 includes a power cable, network cable, mounting hardware, and installation instructions. Its high gain antenna with narrow beamwidth ensures targets are visible at great distances, while its quiet open-array drive motor delivers smooth operation. This radar system is ideal for serious mariners seeking reliable, high-performance navigation and safety features during offshore adventures or fishing expeditions. Its rugged construction, combined with advanced imaging and tracking technologies, makes it a critical addition to any vessel's navigation suite, enhancing safety and operational efficiency at sea.

Features:

• Up to 96-nautical mile range for extended detection

• Scan Averaging Technology for reduced clutter and interference

• Improved Target-Size Processing for better object interpretation

• Split-Screen Dual-Range Display with overlay capabilities

• 100-Knot commercial-grade wind rating for durability

• Quiet open-array drive motor for smooth operation

• True Echo Trails showing historical boat movements

• Dynamic auto gain adjusts for optimal image clarity

• High-resolution radar with narrow beamwidth and high antenna gain

• Dual radar support for redundancy and multiple data sources

• Dynamic sea filter for clutter reduction in varying sea states

• Auto bird gain to locate surface bird flocks and baitfish

• MARPA target tracking for up to 30 targets

• Guard zone alerts for enhanced safety

• Range and bearing cues for quick measurements

• Includes antenna, pedestal, cables, mounting hardware, and instructions
