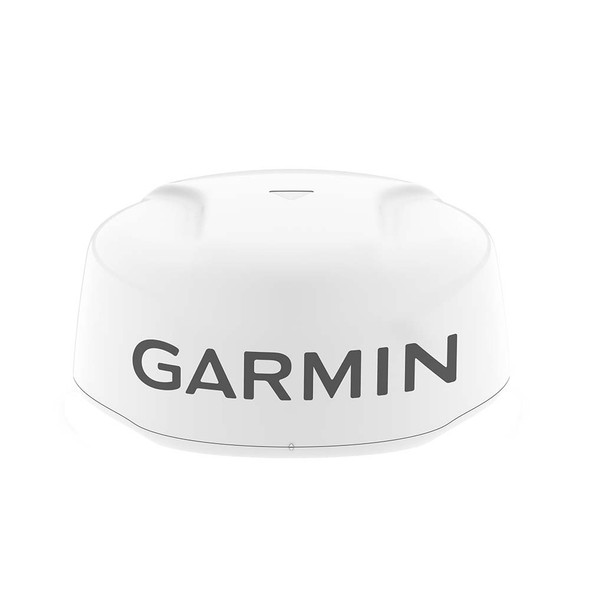

Garmin GMR Fantom 24x Dome Radar - White for Long-Range Marine Navigation

GMR Fantom 24x Dome Radar - White

See whats coming on your compatible chartplotter with GMR Fantom 24x dome radar. When visibility is low and situational awareness is crucial, you need a radar you can depend on. Get 50 watts of output power for long-range and better target detection. Confidently travel at higher speeds and detect boats approaching at high speeds with up to 60 RPM rotation speed. The power save feature lets you choose when you need more power or less, so you have power when you need it and can conserve it when you dont. With timed transmit mode, you can even specify active and inactive times down to the second to help reduce power consumption so you can stay on the water longer than ever. MotionScope technology helps detect moving targets and highlights them in different colors so you can navigate around other boats or severe weather.

Features:

• 24 50-watt solid-state dome radar features a long-range and improved target detection on your compatible chartplotter


• Adjust on-screen target resolution for better separation based on your surroundings by using the target size feature


• Up to 60 RPM rotation speed for a refresh rate that can detect movement at any speed


• The power save feature lets you draw more or less power based on the performance you need


• Timed transmit mode lets you specify active and inactive times down to seconds instead of minutes for reduced power consumption


• MotionScope technology uses the Doppler effect to detect moving targets and highlight targets on your compatible chartplotter in different colors as they move toward or away from you


• True echo trails leave a historical trail on your compatible chartplotter to help you quickly and easily identify moving targets and potential collision threats


• Dual range provides split-screen images on your compatible chartplotter with separate range settings and controls for both close and long range


• Dual radar support allows each of your compatible chartplotters on your boat to pull data from one of two different radar sources to provide redundancy


• Dynamic Auto Gain automatically adjusts to your surroundings for optimal performance in all conditions


• Dynamic Sea Filter automatically adjusts sea clutter based on sea conditions


• Radar overlay displays radar images over maps on your compatible chartplotter

Whats in the Box

• GMR Fantom 24x


• Power cable (15 m/49.21 ft)


• BlueNet network cable (15 meters)


• BlueNet Network to RJ45 Adapter Cable


• Installation instructions


• Mounting hardware kit and template

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Garmin GMR Fantom 24x Dome Radar offers advanced marine detection capabilities with 50-watt solid-state technology, providing reliable long-range target detection for your compatible chartplotter. Designed for vessels operating in low visibility conditions, this radar enhances situational awareness by delivering clear, detailed images of surrounding objects and vessels. Its 24-inch diameter dome ensures optimal coverage, while the adjustable target resolution feature allows you to fine-tune on-screen clarity based on your environment. With a maximum rotation speed of up to 60 RPM, the Garmin GMR Fantom 24x can detect fast-moving targets, making it suitable for high-speed navigation and collision avoidance. The radar's dynamic auto gain and sea filter automatically optimize performance by adjusting to changing sea conditions and clutter, ensuring consistent performance in challenging environments.

Features:

• 50-watt solid-state dome radar provides long-range detection and improved target visibility on your compatible chartplotter

• Adjustable target resolution enhances on-screen target separation for clearer identification

• Maximum rotation speed of 60 RPM enables rapid detection of moving objects at high speeds

• Power save mode conserves energy by adjusting power output based on operational needs

• Timed transmit mode allows precise control of active and inactive periods to reduce power consumption

• MotionScope technology uses Doppler effect to detect moving targets and display them in different colors for quick identification

• True echo trails provide historical data to identify moving targets and potential collision threats

• Dual range feature supports split-screen images with separate range controls for close and long-range viewing

• Dual radar support allows integration with two separate radar sources for redundancy

• Dynamic auto gain automatically adjusts signal strength for optimal performance in varying conditions

• Dynamic sea filter reduces sea clutter, improving detection accuracy over rough waters

• Radar overlay displays real-time radar images over maps on your compatible chartplotter
