Description

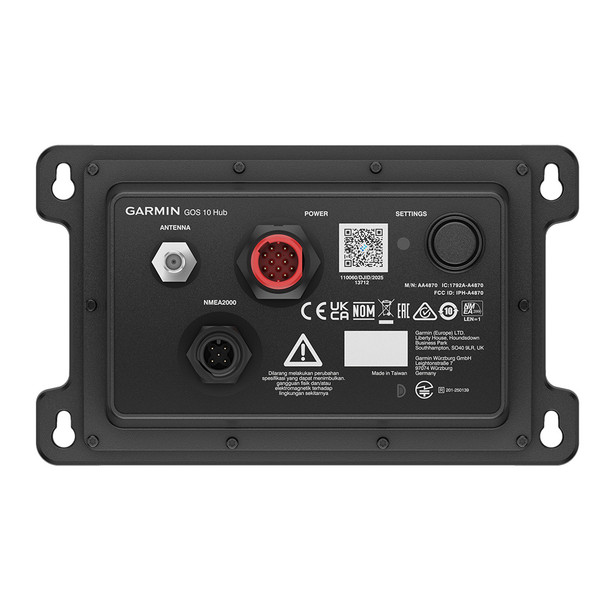

GOS 10 Hub for Garmin OnBoard System
Protect your passengers and loved ones with the GOS 10 Hub for the Garmin OnBoard system. One of the main components of your Garmin OnBoard system, the GOS 10 Hub communicates wirelessly with the MOB tags and connects to your vessels engine harness to provide Engine Cut Off System (ECOS) functionality.
Whats In The Box
- GOS 10 Hub for the Garmin OnBoard System
- 12-pin fused power and engine cut-off harness with external buzzer
- External antenna for wireless connection to MOB tags
- NMEA 2000 T-connector
- NMEA 2000 drop cable
- Installation hardware
- Documentation
Specifications:
- Dimensions (HxWxD): 91.55 mm x 155.12 mm x 48.47 mm
- Weight: 171.7 g
- Wireless range: 66 ft (up to 20 m)
- Supply voltage range: 10-32V
- Operating temperature range: -15 C to 70 C
- Typical power consumption: 50mA @ 12V or 0.6W
- NMEA 2000 LEN: 1
- Engine compatibility: Inboard, outboard, sterndrive from all major manufacturers
- Engine interface: Hardwired, in-line connection to ignition harness
- Number of engines supported: Up to 4 close-to-stop or 2 open-to-stop engines
- Water rating: IPX6 and IPX7
- Compass-safe distance: 5 cm
Enhance your vessel's safety and control with the Garmin GOS 10 Hub, a vital component of the Garmin OnBoard system. Designed to wirelessly communicate with MOB tags, this hub connects seamlessly to your boat's engine harness to facilitate Engine Cut Off System (ECOS) functionality, providing added security in emergency situations. The GOS 10 Hub supports multiple engine configurations, including inboard, outboard, and sterndrive engines from all major manufacturers, making it a versatile choice for various marine setups. Its robust design features an IPX6 and IPX7 water rating, ensuring durability against harsh marine environments, and operates efficiently within a temperature range of -15°C to 70°C. The device's wireless range extends up to 66 feet (20 meters), allowing flexible placement on your vessel for optimal coverage and safety management.
Features:
- Wireless communication: Supports wireless range of 66 feet (up to 20 meters) for MOB tags
- Engine compatibility: Suitable for inboard, outboard, and sterndrive engines from all major manufacturers
- Power and connection: Includes 12-pin fused power and engine cut-off harness with external buzzer for easy installation
- NMEA 2000 integration: Comes with T-connector and drop cable for seamless marine network connectivity
- Durable design: Water-resistant with IPX6 and IPX7 ratings for reliable operation in harsh marine conditions
- Power efficiency: Typical power consumption of 50mA @ 12V (0.6W), suitable for prolonged use
- Multiple engine support: Supports up to four close-to-stop engines or two open-to-stop engines
- Safe installation: Designed with a compass-safe distance of 5 cm for accurate positioning
