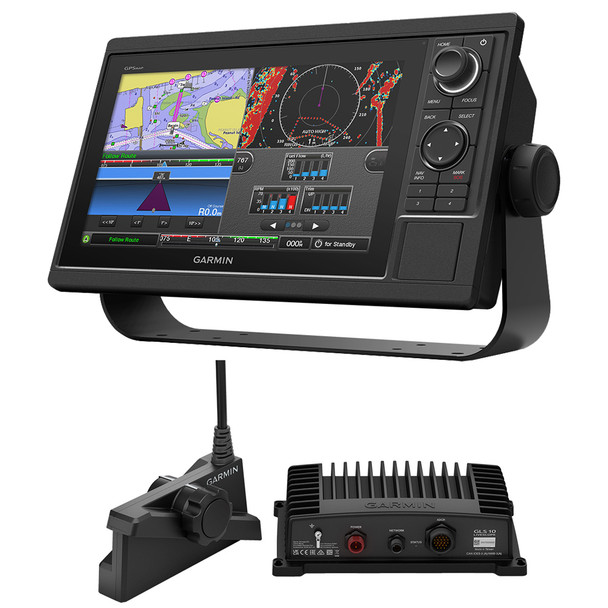

Garmin GPSMAP 1022 Chartplotter with LiveScope Plus Bundle and LVS34 Transducer

GPSMAP 1022 LiveScope Plus Bundle with LVS34 Transducer

GPSMAP 1022 Keyed Networking Chartplotter - No Sonar

10-inch Chartplotter Is All-in-1 Solution.

Features:

• 10-inch color display with keypad interface and multifunction control knob


• High-sensitivity internal 10 Hz GPS and GLONASS receiver


• Fully network capable for Garmin Marine Network and NMEA 2000plus NMEA 0183 support


• Supports optional BlueChart g2 Vision HD charts for Auto Guidance and other premium navigation features

GPSMAP 1022 is designed for cruisers, sailors, and sailing racers who need the advanced all-in-1 solution provided by our 10-inch keyed chartplotter. Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.

Complete Network Sharing

Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras, and Panoptix sonar among multiple units. Includes NMEA 2000 network connectivity and NMEA 0183 support for autopilots, digital switching, weather, FUSION-Link, VHF, AIS, and other sensors.

The Ultimate Connected Boating App

Built-in Wi-Fi gives you access to the free all-in-one ActiveCaptain app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps, and the boating community. Wherever you are, youll have unlimited access to your cartography, the ability to purchase new maps and charts, and access to the Garmin Quickdraw Contours Community. Stay connected with smart notifications on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.

Heading, Position Refreshed 10 Times per Second

Fast, responsive built-in 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints and finding your way back to them quick and easy.

Upgrade to Our Best Maps on the Water

Two SD card slots provide expandable memory for accessory map purchases, such as LakeV HD, LakeV HD Ultra, BlueChart g2 HD, or BlueChart g2 Vision HD, which adds Garmin patented Auto Guidance and other great features.

Built-in SailAssist Features

To help you gain a wind-maximizing competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start, and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data, and more.

GPX Waypoints Transfer

If you have waypoints, tracks, or frequently used routes stored on another manufacturers GPS product or on a Garmin handheld device its easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.

In The Box:

• GPSMAP 1022 chartplotter


• Power/data cable


• NMEA 2000 T-connector


• NMEA 2000 drop cable (2 m)


• Bail mount kit with knobs


• Flush mount kit with gasket


• Protective cover


• Trim piece snap covers


• Documentation

Connections:

• Garmin Marine Network Ports: 2


• NMEA 2000 Port: 1


• NMEA 0183 Input Ports: 1


• NMEA 0183 Output Ports: 1


• Video Input Ports: 1 BNC


• Video Output Ports: None


• Wireless Connectivity: Yes

Auto Guidance is for planning purposes only and does not replace safe navigation operations.

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

LiveScope Plus System with GLS 10 LVS34 Transducer

THE BEST OF THE BEST JUST GOT BETTER

The latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images, and better target separation.

Features:

• See images clearly with improved screen clarity, transducer sensitivity, and target separation.


• Scan surroundings with sharper images, reduced noise, and fewer sonar artifacts.


• Upgrade your current LiveScope System black box (GLS 10 sonar module) with just a new transducer.


• Get maximum contrast and clarity in your images with vivid color palettes.


• Dont miss a thing with supported Forward, Down, and Perspective modes and the necessary mount.

Real-Time Images

Real-time sonar ensures that your live images are as accurate as possible.

Clear Vision

See exactly what you need with reduced noise and fewer sonar artifacts that impede your picture of fish and structure.

Image Stabilization

A built-in stabilization system keeps the sonar image on your compatible chartplotter steady, even in rough conditions.

Vivid Color Palettes

Choose from seven vivid color options including Aqua, Caribbean, Lava and more to see fish and structure in maximum contrast and clarity.

Forward Mode

Scout ahead of your boat to see whats happening in real-time.

Down Mode

Explore live views of the activity directly beneath your boat.

Perspective Mode

See under the water with a view from your perspective above the water.

In The Box:

• LiveScope GLS 10 sonar black box


• Panoptix LVS34transducer


• Perspective mount


• Trolling motor barrel mount


• Shaft mount


• Power cable


• 2 meter Garmin Marine Network cable (small connector)


• Network adapter cable


• Documentation

The Garmin GPSMAP 1022 LiveScope Plus Bundle with LVS34 Transducer offers a comprehensive all-in-one marine navigation solution designed for cruisers, sailors, and racing enthusiasts. Featuring a bright 10-inch color display with a user-friendly keypad interface and multifunction control knob, this chartplotter ensures easy operation and quick access to vital navigation and sonar functions. The high-sensitivity 10 Hz GPS and GLONASS receiver provides fast, accurate position updates, making it easier to navigate complex waterways and return to waypoints with precision. Fully network capable, it supports Garmin Marine Network, NMEA 2000, and NMEA 0183 protocols, allowing seamless sharing of sonar, maps, radar, cameras, and other compatible devices across your vessel’s network. The device supports premium navigation features such as BlueChart g2 Vision HD charts with Auto Guidance, enhancing route planning and navigation safety. Built-in Wi-Fi access via the ActiveCaptain app enables you to manage charts, purchase maps, access the Garmin Quickdraw Contours Community, receive notifications, and sync routes from your mobile device, keeping you connected on the water. The responsive 10 Hz GPS ensures your position and heading are updated ten times per second, providing smooth movement tracking and quick waypoint management. Expandable memory through two SD card slots allows you to add detailed maps like LakeV HD or BlueChart g2 Vision HD, offering advanced features such as Auto Guidance for safer, more efficient routes. The Garmin GPSMAP 1022 includes built-in SailAssist features for competitive sailing, such as virtual start lines, laylines, wind data, and synchronized race timers, giving you a tactical advantage on the water. The device also supports GPX waypoint transfer, making it simple to import routes and tracks from other GPS systems or Garmin handheld devices. The LiveScope Plus System with GLS 10 and LVS34 transducer enhances your fishing experience with clearer, real-time images, improved target separation, and vivid color palettes. Forward, Down, and Perspective modes allow you to scout ahead, explore beneath your boat, or view from above the water, providing comprehensive underwater insights. The stabilization feature ensures steady images even in rough conditions, and multiple color options maximize target visibility. In the box, you will find the GPSMAP 1022 chartplotter, power and data cables, NMEA 2000 and network cables, mounting kits, a protective cover, and comprehensive documentation, making setup straightforward. This robust system is ideal for serious boaters seeking advanced navigation, sonar, and connectivity features for both recreational and professional use.

Features:

• 10-inch color display with keypad interface and multifunction control knob

• High-sensitivity 10 Hz GPS and GLONASS receiver for fast, accurate position updates

• Fully network capable supporting Garmin Marine Network, NMEA 2000, and NMEA 0183

• Supports BlueChart g2 Vision HD charts with Auto Guidance for premium navigation

• Built-in Wi-Fi for seamless connection with the ActiveCaptain app and smart notifications

• Expandable with two SD card slots for detailed maps like LakeV HD and BlueChart g2 Vision HD

• Built-in SailAssist features including virtual start lines, laylines, wind data, and race timers

• Supports GPX waypoint transfer from other GPS devices or Garmin handhelds

• LiveScope Plus System with GLS 10 and LVS34 transducer for real-time, vivid underwater imaging

• Multiple sonar viewing modes: Forward, Down, and Perspective, with image stabilization

• Supports vivid color palettes for maximum contrast and clarity in sonar imaging

• Rugged design includes mounting kits, protective cover, and comprehensive documentation
