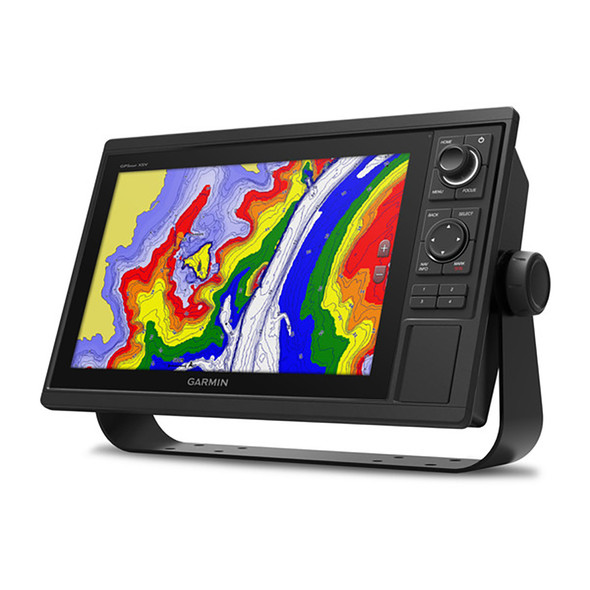

Garmin GPSMAP 1022 Keyed Networking Chartplotter – 10-Inch Marine GPS Display (No Sonar)

GPSMAP 1022 Keyed Networking Chartplotter - No Sonar

10-inch Chartplotter Is All-in-1 Solution

• 10-inch color display with keypad interface and multifunction control knob


• High-sensitivity internal 10 Hz GPS and GLONASS receiver


• Fully network capable for Garmin Marine Network and NMEA 2000plus NMEA 0183 support


• Supports optional BlueChart g2 Vision HD charts for Auto Guidance and other premium navigation features

GPSMAP 1022 is designed for cruisers, sailors and sailing racers who need the advanced all-in-1 solution provided by our 10-inch keyed chartplotter. Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.

Complete Network Sharing

Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and Panoptix sonar among multiple units. Includes NMEA 2000 network connectivity and NMEA 0183 support for autopilots, digital switching, weather, FUSION-Link, VHF, AIS and other sensors.

The Ultimate Connected Boating App

Built in Wi-Fi gives you access to the free all-in-one ActiveCaptain app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, youll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw Contours Community. Stay connected with smart notifications on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.

Heading, Position Refreshed 10 Times per Second

Fast, responsive built-in 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints and finding your way back to them quick and easy.

Upgrade to Our Best Maps on the Water

Two SD card slots provide expandable memory for accessory map purchases, such as LakeV HD, LakeV HD Ultra, BlueChart g2 HD or BlueChart g2 Vision HD, which adds Garmin patented Auto Guidance and other great features.

Built-in SailAssist Features

To help you gain a wind-maximizing competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.

GPX Waypoints Transfer

If you have waypoints, tracks or frequently used routes stored on another manufacturers GPS product or on a Garmin handheld device its easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.

In The Box

• GPSMAP 1022 chartplotter


• Power/data cable


• NMEA 2000 T-connector


• NMEA 2000 drop cable (2 m)


• Bail mount kit with knobs


• Flush mount kit with gasket


• Protective cover


• Trim piece snap covers


• Documentation

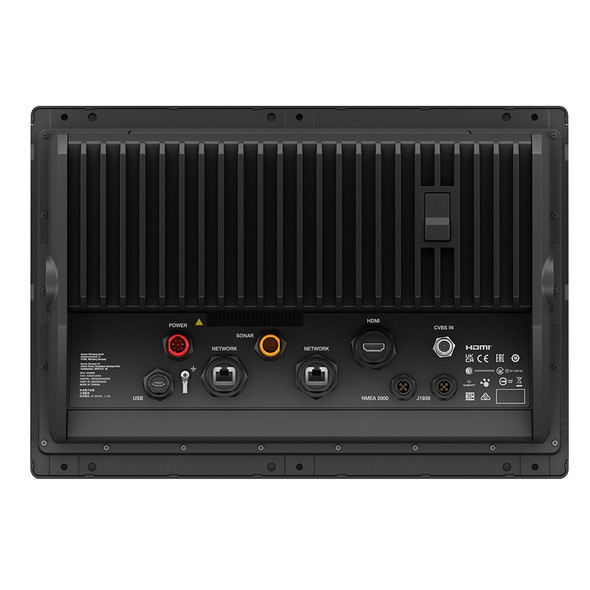

Connections

• Garmin Marine Network Ports: 2


• NMEA 2000 Port: 1


• NMEA 0183 Input Ports: 1


• NMEA 0183 Output Ports: 1


• Video Input Ports: 1 BNC


• Video Output Ports: None


• Wireless Connectivity: Yes

^{Auto Guidance is for planning purposes only and does not replace safe navigation operations.}

^{Wi-Fi is a registered trademark of the Wi-Fi Alliance.}

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Garmin GPSMAP 1022 Keyed Networking Chartplotter offers a comprehensive 10-inch color display designed for cruisers, sailors, and racing enthusiasts seeking advanced navigation capabilities. Its bright, high-resolution screen combined with a user-friendly keypad interface and multifunction control knob provides quick access to navigation tools and settings. Equipped with a high-sensitivity 10 Hz GPS and GLONASS receiver, it delivers fast, accurate positioning and heading updates, making navigation more responsive and reliable. The device supports optional BlueChart g2 Vision HD charts, enabling features like Auto Guidance for effortless route planning and enhanced situational awareness on the water.

Networking capabilities are robust, allowing seamless sharing of sonar, maps, user data, radar, cameras, and other sensors across multiple units via Garmin Marine Network, NMEA 2000, and NMEA 0183 interfaces. This connectivity facilitates integrated vessel management and simplifies complex navigation setups. Built-in Wi-Fi access enables management of your marine experience through the free ActiveCaptain app, which allows trip planning, chart updates, and community engagement from virtually anywhere. Smart notifications keep you informed of critical updates directly on your chartplotter, ensuring you stay connected while on the water.

The device's responsive GPS system refreshes position and heading information up to 10 times per second, providing smooth movement tracking and quick waypoint navigation. It supports expandable memory with two SD card slots, allowing users to purchase and install premium maps such as LakeV HD, BlueChart g2 HD, or BlueChart g2 Vision HD, which incorporate Garmin's patented Auto Guidance technology for optimal route planning. For sailors, the GPSMAP 1022 includes built-in SailAssist features, such as virtual starting lines, laylines, wind data, and race timers, designed to give competitive boaters an edge during races. Transferring waypoints or routes from other GPS devices is straightforward through industry-standard GPX files, ensuring seamless data migration.

In the box, you'll find the GPSMAP 1022 chartplotter, power and data cables, NMEA 2000 T-connector and drop cable, mounting kits, protective cover, trim covers, and comprehensive documentation. Connectivity options include dual Garmin Marine Network ports, NMEA 2000 and NMEA 0183 ports, and a video input port. The device also features wireless connectivity for enhanced operational flexibility. Please note, auto guidance is intended for planning purposes only and does not replace safe navigation practices. For detailed setup instructions, refer to the included owner's manual available online.

Features:

• 10-inch high-resolution color display with keypad and multifunction control knob

• High-sensitivity 10 Hz GPS and GLONASS receiver for fast, accurate positioning

• Supports Garmin Marine Network, NMEA 2000, and NMEA 0183 for comprehensive connectivity

• Optional BlueChart g2 Vision HD charts for advanced navigation and Auto Guidance

• Built-in Wi-Fi enables remote management via ActiveCaptain app

• Responsive position and heading updates at 10 times per second

• Expandable memory with two SD card slots for premium maps

• Built-in SailAssist features including wind data, laylines, race timer, and virtual starting line

• Easy GPX waypoint, track, and route transfer from other devices

• Includes mounting kits, protective cover, and comprehensive accessories
