Garmin GPSMAP 8410xsv 10-inch Chartplotter and Sonar Combo with Worldwide Basemap

GPSMAP 8410xsv 10" Chartplotter/Sounder Combo with Worldwide Basemap

10 Chartplotter/Sonar Combo with Full HD In-plane Switching (IPS) Touchscreen

• Features a 10 full HD IPS touchscreen display


• Built-in support for the full suite of Garmin sonar capabilities


• Fully network capable with NMEA 2000 connectivity and the Garmin Marine Network


• Includes Bluetooth connectivity, ANT technology and Wi-Fi networking


• SmartMode station controls enable quick, one-touch access to the information you need

Serious sport fishermen, cruisers, sailors and sail racers demand serious equipment. The easy-to-use, easy-to-install GPSMAP 8410xsv chartplotter/sonar combo delivers MFD performance in a combo-size package. It features a 10 full HD in IPS touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses. Multiple displays can be flat mounted edge-to-edge to create a sleek glass helm look or can be mounted flush.

Complete Sonar Support

The GPSMAP 8410xsv chartplotter/sonar combo offers built-in support for our industry-leading sonar, including dual-channel 1 kW traditional CHIRP, CHIRP ClearV and CHIRP SideV scanning sonars plus built-in support for Ultra High-Definition scanning sonar (no black box required). It also supports the entire Panoptix all-seeing sonar line (transducers sold separately).

Build Your Marine System

NMEA 2000 networking and the Garmin Marine Network allow you to easily build your full marine electronics suite from radar and autopilots to cameras, instruments and forward-looking sonar controlled from your chartplotter and shared across multiple screens. In addition, our exclusive OneHelm system coordinates many third-party manufactured onboard marine products to bring full control of systems such as digital switching, lighting, stabilization and more conveniently to your chartplotter screen.

Full Connectivity

The GPSMAP 8410xsv chartplotter has a premium-performance processor that enables fast map drawing, superior networking, video distribution and more. Built-in Wi-Fi technology lets you pair with the freeActiveCaptain app for access to OneChart, smart notifications,Garmin Quickdraw community data and more. You can also control video streaming from ourGC 100wireless camera andVIRB action cameras. In addition, built-in ANT wireless technology connects you directly to ourquatixmarine watch,gWind Wireless 2transducer and wireless remote controls.

SmartMode Station Controls

Networked sonar, radar, cameras, media and digital switching can be independent or incorporated into SmartMode station controls. With SmartMode, everything is designed to give you quick, one-touch access to the information you need to ease high-stress situations such as docking.

Special Sailing Features

The Garmin SailAssist feature provides data, displays and prerace guidance to help you gain a competitive edge. Other sailing features include laylines, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider. Gauge displays provide need-to-know information at a glance, including true and apparent wind angle, set and drift, true or apparent wind speed, horizontal or vertical graphs and a data bar with customizable fields.

The Ultimate Connected Boating App

Download the ActiveCaptain app to your smartphone or tablet to manage your marine experience from anywhere from trip planning and prefishing to updating software and purchasing maps.

¹When paired with acompatible smartphone

The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. Wi-Fi is a registered trademark of the Wi-Fi Alliance.

In The Box:

• GPSMAP 8410xsv


• Power cable


• NMEA 2000 drop cable


• NMEA 2000 T-connector


• Bail mount with knobs


• Flush mount kit


• Sun cover


• Trim piece snap covers


• Documentation

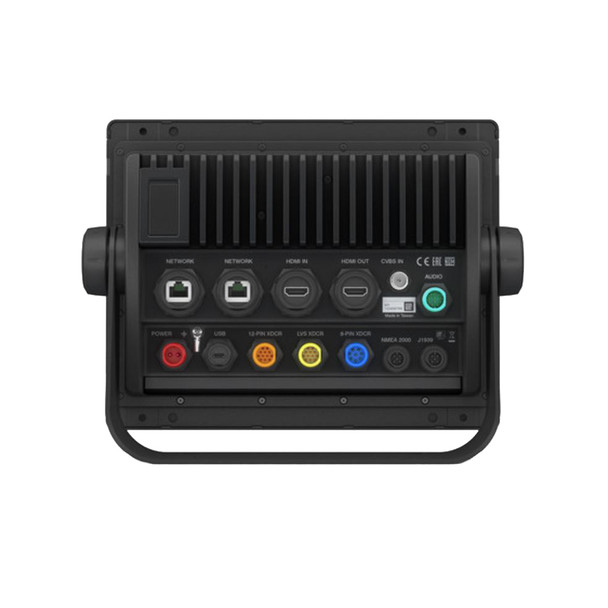

Connections

• Garmin Marine Network Ports: 2


• Transducer Ports: 1 (LVS Sonar), 1 (8 Pin) and 1 (12 Pin)


• NMEA 2000 Port: 1


• NMEA 0183 Input Ports: 1 Differential


• NMEA 0183 Output Ports: 1 Differential


• Video Input Ports: 1 (BNC Composite) 1 (HDMI)


• Video Output Ports: 1 HDMI


• Wireless Connectivity: Yes

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Garmin GPSMAP 8410xsv is a 10-inch full HD IPS touchscreen chartplotter and sonar system designed for serious boaters, anglers, and sailors. Its bright, wide-angle display ensures excellent visibility even in direct sunlight or with polarized sunglasses, providing crystal-clear navigation and sonar imaging in a sleek, modern package. The device's intuitive SmartMode station controls offer quick, one-touch access to vital information, making it easier to manage complex systems during high-stress situations like docking or racing. Multiple mounting options allow for a seamless, glass helm aesthetic or flush installation, integrating smoothly into your boat's cockpit.
Built-in support for Garmin’s comprehensive sonar capabilities makes the GPSMAP 8410xsv a versatile tool for fishing and navigation. It supports dual-channel 1 kW traditional CHIRP, CHIRP ClearV and SideV scanning sonars, and Ultra High-Definition scanning sonar without requiring additional black box units. Compatibility with the Panoptix all-seeing sonar line (transducers sold separately) ensures you have access to advanced imaging technology, providing real-time views of underwater structures and fish targets. NMEA 2000 and Garmin Marine Network connectivity make it simple to build an integrated marine electronics system that includes radar, autopilots, cameras, and more, all controlled from the same interface.
Connectivity features include built-in Wi-Fi, Bluetooth, ANT technology, and wireless remote controls, enabling seamless pairing with the ActiveCaptain app for trip planning, software updates, and sharing data with Garmin community. Video streaming capabilities and wireless control of Garmin VIRB action cameras enhance your onboard experience. The device's powerful processor ensures fast map rendering and robust networking performance, supporting multiple displays and multimedia sharing across your vessel. The SmartMode station controls allow you to customize and streamline your systems, reducing stress during critical maneuvers.
Designed with sailors in mind, Garmin’s SailAssist features provide prerace guidance, laylines, wind data, and other vital sailing metrics to help you stay competitive. The system displays true wind angles, set and drift, and tide information, all accessible at a glance through customizable gauges and data fields. The Garmin GPSMAP 8410xsv is supported by a comprehensive range of accessories, including mounting kits, sun covers, and documentation, making installation straightforward and reliable. Whether you’re fishing, cruising, or racing, this all-in-one chartplotter and sonar system delivers the performance and connectivity needed for modern boating. Manage your vessel’s systems effortlessly and stay connected with the ultimate marine electronics solution from Garmin.

Features:

• 10-inch full HD IPS touchscreen display for clear visibility and sunlight readability

• Built-in support for Garmin’s full suite of sonar technologies including CHIRP, ClearV, SideV, and Ultra High-Definition scanning sonar

• Supports Panoptix all-seeing sonar line (transducers sold separately)

• Fully network capable with NMEA 2000 and Garmin Marine Network for integrating radar, autopilots, cameras, and more

• Built-in Wi-Fi, Bluetooth, ANT technology, and wireless remote controls for seamless connectivity

• SmartMode station controls for quick access to systems and data during high-stress situations

• Supports advanced sailing features including laylines, wind rose, tide, and current data

• Compatible with the ActiveCaptain app for remote management, trip planning, and software updates

• Powerful processor for fast map rendering, video distribution, and multitasking

• Multiple mounting options for sleek, glass helm or flush installation
