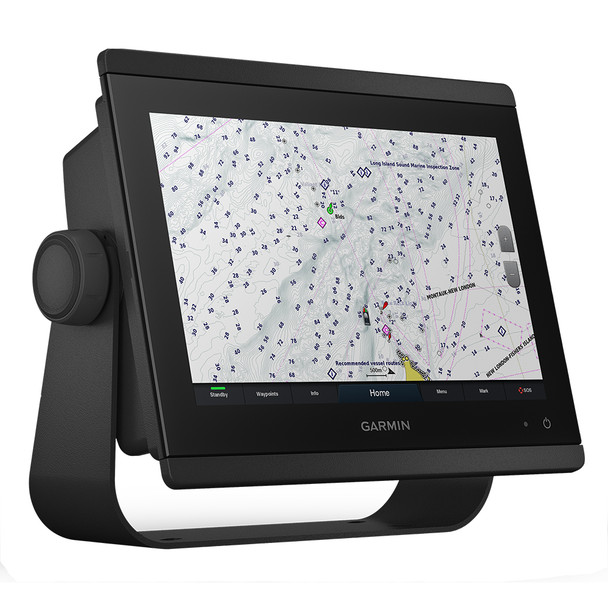

Garmin GPSMAP 8412xsv 12-inch Chartplotter and Sonar Combo with Full HD IPS Touchscreen

GPSMAP 8412xsv 12" Chartplotter/Sounder Combo with Worldwide Basemap Sonar

12 Chartplotter/Sonar Combo with Full HD In-plane Switching (IPS) Touchscreen

• Features a 12 full HD in IPS touchscreen display


• Built-in support for the full suite of Garmin sonar capabilities


• Fully network capable with NMEA 2000 connectivity and the Garmin Marine Network


• Includes Bluetooth connectivity, ANT technology and Wi-Fi networking


• SmartMode station controls enable quick, one-touch access to the information you need

Serious sport fishermen, cruisers, sailors and sail racers demand serious equipment. The easy-to-use, easy-to-install GPSMAP 8412xsv chartplotter/sonar combo delivers MFD performance in a combo-size package. It features a 12 full HD IPS touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses. Multiple displays can be flat mounted edge-to-edge to create a sleek glass helm look or can be mounted flush.

Complete Sonar Support

The GPSMAP 8412xsv chartplotter/sonar combo offers built-in support for our industry-leading sonar, including dual-channel 1 kW traditional CHIRP, CHIRP ClearV and CHIRP SideV scanning sonars plus built-in support for Ultra High-Definition scanning sonar (no black box required). It also supports the entirePanoptix all-seeing sonar line(transducers sold separately).

Build Your Marine System

NMEA 2000 networking and the Garmin Marine Network allow you to easily build your full marine electronics suite from radar and autopilots to cameras, instruments and forward-looking sonar controlled from your chartplotter and shared across multiple screens. In addition, our exclusive OneHelm system coordinates many third-party manufactured onboard marine products to bring full control of systems such as digital switching, lighting, stabilization and more conveniently to your chartplotter screen.

Full Connectivity

The GPSMAP 8412xsv chartplotter has a premium-performance processor that enables fast map drawing, superior networking, video distribution and more. Built-in Wi-Fi technology lets you pair with the freeActiveCaptain app for access to OneChart, smart notifications,Garmin Quickdraw community data and more. You can also control video streaming from ourGC 100wireless camera andVIRB action cameras. In addition, built-in ANT wireless technology connects you directly to ourquatixmarine watch,gWind Wireless 2transducer and wireless remote controls.

SmartMode Station Controls

Networked sonar, radar, cameras, media and digital switching can be independent or incorporated into SmartMode station controls. With SmartMode, everything is designed to give you quick, one-touch access to the information you need to ease high-stress situations such as docking.

Special Sailing Features

The Garmin SailAssist feature provides data, displays and prerace guidance to help you gain a competitive edge. Other sailing features include laylines, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider. Gauge displays provide need-to-know information at a glance, including true and apparent wind angle, set and drift, true or apparent wind speed, horizontal or vertical graphs and a data bar with customizable fields.

The Ultimate Connected Boating App

Download the ActiveCaptain app to your smartphone or tablet to manage your marine experience from anywhere from trip planning and prefishing to updating software and purchasing maps.

¹When paired with acompatible smartphone

The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. Wi-Fi is a registered trademark of the Wi-Fi Alliance.

In The Box:

• GPSMAP 8412xsv


• Power cable


• NMEA 2000 drop cable


• NMEA 2000 T-connector


• Bail mount with knobs


• Flush mount kit


• Sun cover


• Trim piece snap covers


• Documentation

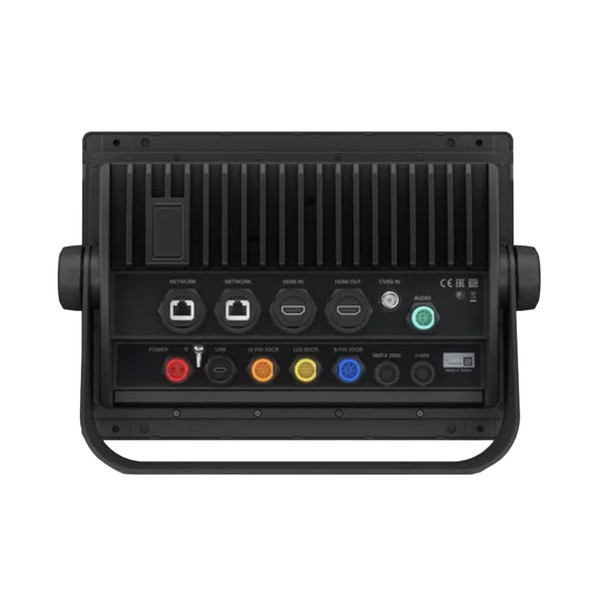

Connections

• Garmin Marine Network Ports: 2


• Transducer Ports: 1 (LVS Sonar), 1 (8 Pin) and 1 (12 Pin)


• NMEA 2000 Port: 1


• NMEA 0183 Input Ports: 1 Differential


• NMEA 0183 Output Ports: 1 Differential


• Video Input Ports: 1 (BNC Composite) 1 HDMI


• Video Output Ports: 1 HDMI


• Wireless Connectivity: Yes

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Garmin GPSMAP 8412xsv is a high-performance 12-inch chartplotter and sonar combo designed for serious boaters, fishermen, and sailors. Featuring a full HD In-plane Switching (IPS) touchscreen display, it offers wide viewing angles, enhanced sunlight readability, and superior image clarity. The sleek, edge-to-edge flat mount design allows for a modern, low-profile installation that integrates seamlessly into your cockpit or helm station. Its intuitive interface and smart controls provide quick access to critical navigation and sonar functions, making it ideal for both experienced mariners and those new to marine electronics.
The device supports a comprehensive suite of Garmin sonar capabilities, including dual-channel 1 kW traditional CHIRP, CHIRP ClearV, CHIRP SideV scanning sonar, and Ultra High-Definition scanning sonar without the need for additional black boxes. It also supports the Panoptix all-seeing sonar line, giving you detailed underwater views. Built-in NMEA 2000 and Garmin Marine Network support enable you to connect and control multiple marine systems such as radar, autopilots, cameras, and digital instruments from a single interface. The OneHelm system further enhances integration by coordinating third-party marine products, simplifying your control setup.
Connectivity features include built-in Wi-Fi, Bluetooth, and ANT technology for seamless pairing with Garmin's ActiveCaptain app, Garmin Quickdraw community data, and wireless accessories. The processor delivers fast map rendering, video distribution, and network performance, ensuring a smooth user experience. SmartMode station controls facilitate one-touch access to sonar, radar, cameras, and digital switching, which is particularly useful during high-stress situations like docking or navigating through challenging conditions.
Special sailing features such as Laylines, Wind Rose, heading and course-over-ground lines, tide, and current data give sailors a competitive edge. Gauge displays provide at-a-glance information including wind angles, set and drift, and wind speeds, with customizable data fields. The device's compatibility with the ActiveCaptain app allows remote management of your marine experience, from trip planning to software updates. The package includes essential mounting hardware, power and network cables, and a comprehensive owners manual for straightforward installation and setup. With its advanced capabilities and versatile connectivity, the Garmin GPSMAP 8412xsv is a comprehensive navigation and sonar solution for a wide range of marine activities.

Features:

• 12-inch full HD IPS touchscreen for clear, wide-angle viewing

• Supports a full suite of Garmin sonar including CHIRP, ClearV, SideV, and Ultra HD scanning sonar

• Built-in support for Panoptix all-seeing sonar (transducers sold separately)

• Fully network capable with NMEA 2000 and Garmin Marine Network for system integration

• Supports Wi-Fi, Bluetooth, and ANT for seamless connectivity and remote control

• SmartMode station controls for quick access to vital systems

• Advanced sailing features including laylines, wind rose, and tide/current data

• Compatible with ActiveCaptain app for remote management and updates

• Includes mounting hardware, power cable, network cables, and detailed manual
