Description

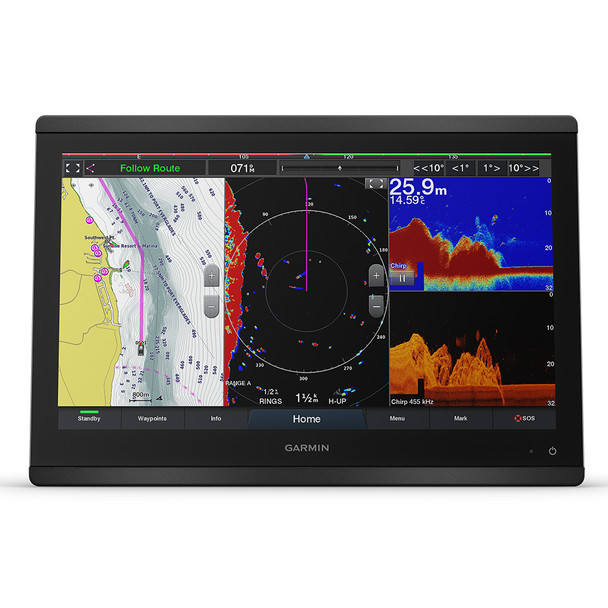

GPSMAP 8416xsv 16" Chartplotter/Sounder Combo with Worldwide Basemap Sonar
16 Chartplotter/Sonar Combo with Full HD In-plane Switching (IPS) Touchscreen
- Features a 16 full HD IPS touchscreen display
- Built-in support for the full suite of Garmin sonar capabilities
- Fully network capable with NMEA 2000 connectivity and the Garmin Marine Network
- Includes Bluetooth connectivity, ANT technology and Wi-Fi networking
- SmartMode station controls for quick, one-touch access to the information you need
Serious sport fishermen, cruisers, sailors and sail racers demand serious equipment. The easy-to-use, easy-to-install GPSMAP 8416xsv chartplotter/sonar combo delivers MFD performance in a combo-size package. It features a 16 full HD IPS touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses. Multiple displays can be flat mounted edge-to-edge to create a sleek glass helm look or can be mounted flush.

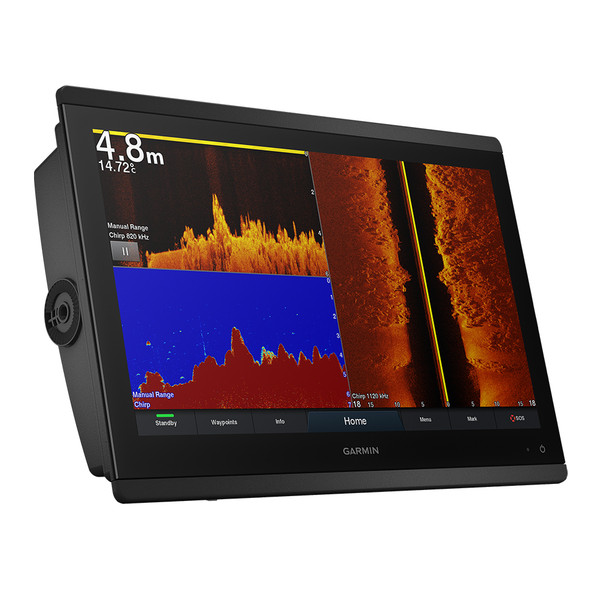

Complete Sonar Support
The GPSMAP 8416xsv chartplotter/sonar combo offers built-in support for our industry-leading sonar, including dual-channel 1 kW traditional CHIRP, CHIRP ClearV and CHIRP SideV scanning sonars plus built-in support for Ultra High-Definition scanning sonar (no black box required). It also supports the entire Panoptix all-seeing sonar line (transducers sold separately).
Build Your Marine System
NMEA 2000 networking and the Garmin Marine Network allow you to easily build your full marine electronics suite from radar and autopilots to cameras, instruments and forward-looking sonar controlled from your chartplotter and shared across multiple screens. In addition, our exclusive OneHelm system coordinates many third-party manufactured onboard marine products to bring full control of systems such as digital switching, lighting, stabilization and more conveniently to your chartplotter screen.
Full Connectivity
The GPSMAP 8416xsv chartplotter has a premium-performance processor that enables fast map drawing, superior networking, video distribution and more. Built-in Wi-Fi technology lets you pair with the free ActiveCaptain app for access to OneChart, smart notifications, Garmin Quickdraw community data and more. You can also control video streaming from our GC 100 wireless camera and VIRB action cameras. In addition, built-in ANT wireless technology connects you directly to our quatix marine watch, gWind Wireless 2 transducer and wireless remote controls.
SmartMode Station Controls
Networked sonar, radar, cameras, media and digital switching can be independent or incorporated into SmartMode station controls. With SmartMode, everything is designed to give you quick, one-touch access to the information you need to ease high-stress situations such as docking.
Special Sailing Features
The Garmin SailAssist feature provides data, displays and prerace guidance to help you gain a competitive edge. Other sailing features include laylines, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider. Gauge displays provide need-to-know information at a glance, including true and apparent wind angle, set and drift, true or apparent wind speed, horizontal or vertical graphs and a data bar with customizable fields.
The Ultimate Connected Boating App
Download the ActiveCaptain app to your smartphone or tablet to manage your marine experience from anywhere from trip planning and prefishing to updating software and purchasing maps.
1When paired with acompatible smartphone
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. Wi-Fi is a registered trademark of the Wi-Fi Alliance.
In The Box:
- GPSMAP 8416xsv
- Power cable
- NMEA 2000 drop cable
- NMEA 2000 T-connector
- Flush mount kit
- Sun cover
- Trim piece snap covers
- Documentation

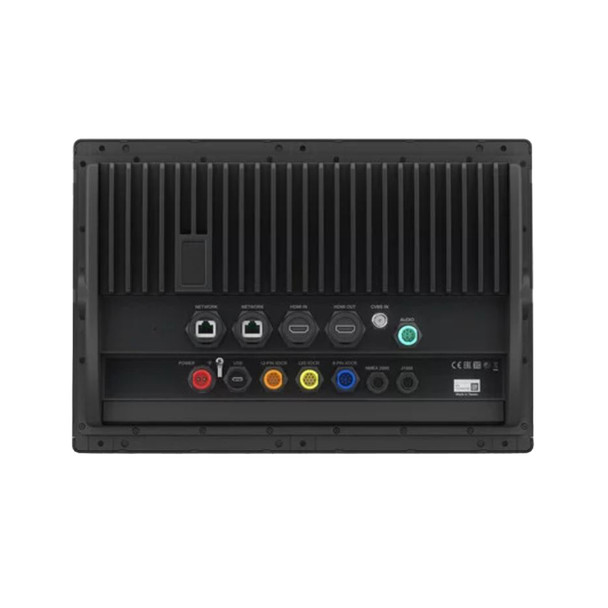

Connections
- Garmin Marine Network Ports: 2
- Transducer Ports: 1 (LVS Sonar), 1 (8 Pin) and 1 (12 Pin)
- NMEA 2000 Port: 1
- NMEA 0183 Input Ports: 1 Differential
- NMEA 0183 Output Ports: 1 Differential
- Video Input Ports: 1 (BNC Composite) 1 (HDMI)
- Video Output Ports: 1 HDMI
- Wireless Connectivity: Yes
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Garmin GPSMAP 8416xsv is a versatile 16-inch chartplotter and sonar combination designed for serious boaters, fishermen, and sailors. Featuring a full HD IPS touchscreen, it offers wide viewing angles, exceptional clarity, and sunlight readability, even while wearing polarized sunglasses. The sleek edge-to-edge display can be mounted flat or flush to create a modern and streamlined helm setup, providing intuitive control and easy access to navigation and sonar data. Its robust construction and high-performance processor ensure fast map rendering, seamless networking, and smooth video distribution, making it a reliable centerpiece for your marine electronics suite.
Built-in support for a comprehensive range of Garmin sonar technologies includes dual-channel 1 kW traditional CHIRP, CHIRP ClearV, CHIRP SideV, and Ultra High-Definition scanning sonar. It also supports Panoptix all-seeing sonar (transducers sold separately), offering detailed underwater views for fishing and navigation. The device’s compatibility with NMEA 2000 and Garmin Marine Network allows you to integrate radar, autopilots, cameras, instruments, and other third-party devices, creating a fully connected marine system that can be controlled from your chartplotter or multiple screens. The Garmin OneHelm system further simplifies control, coordinating various onboard systems such as digital switching, lighting, and stabilization from a single interface.
The GPSMAP 8416xsv features built-in Wi-Fi, Bluetooth, and ANT technology, enabling remote control and data sharing through the Garmin ActiveCaptain app. You can access smart notifications, community data, and update your maps conveniently from your smartphone or tablet. The device also supports control of video streaming from Garmin VIRB cameras and wireless control of compatible sensors like the gWind Wireless 2 transducer and quatix marine watch. The SmartMode station controls allow you to customize and access sonar, radar, cameras, and digital systems with a single touch, ideal for high-stress situations such as docking or fishing.
Designed with sailing enthusiasts in mind, the Garmin SailAssist feature provides prerace guidance, laylines, wind data, and other tools to give you a competitive edge. Additional sailing features include enhanced wind rose, course-over-ground lines, and tide and current data. The system’s compatibility with the ActiveCaptain app allows for comprehensive trip planning, software updates, and map purchases, providing a connected and streamlined boating experience. The package includes the chartplotter, power and data cables, flush mount kit, sun cover, and documentation, ensuring easy installation and operation. With its advanced features, connectivity options, and rugged design, the Garmin GPSMAP 8416xsv is an ideal choice for demanding marine environments and serious navigation needs.
Features:
- 16-inch full HD IPS touchscreen display for superior clarity and sunlight readability
- Built-in support for traditional CHIRP, ClearV, SideV, and Ultra HD scanning sonar technologies
- Supports Panoptix all-seeing sonar (transducers sold separately) for detailed underwater views
- Network capable with NMEA 2000 and Garmin Marine Network for seamless system integration
- Wi-Fi, Bluetooth, and ANT connectivity for remote control, notifications, and device pairing
- SmartMode station controls for quick access to sonar, radar, cameras, and digital systems
- SailAssist features including laylines, wind rose, and prerace guidance
- Compatible with the ActiveCaptain app for trip planning, updates, and community data sharing
- Sleek, edge-to-edge display design with options for flat or flush mounting
- Comprehensive package includes power and data cables, flush mount kit, sun cover, and documentation
Details
truck_freight: |
No |
oversized: |
No |
owners_manual_url: |
https://productimageserver.com/literature/ownersManual/74747OM.pdf |
