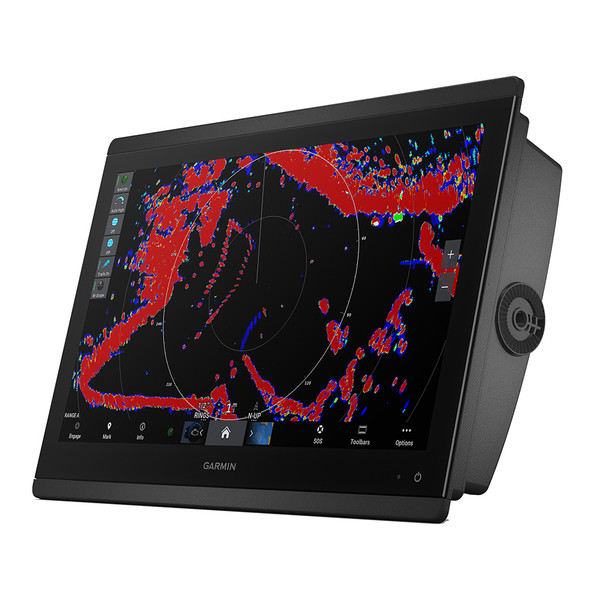

Garmin GPSMAP 8616 Chartplotter GN+ with 16-Inch Full HD Touchscreen and Preloaded Maps

GPSMAP 8616 Chartplotter GN+

Youre a mariner who wants it all a fast, high-performance network chartplotter with sonar, a large 16" IPS display, preloaded maps and charts, and more

The GPSMAP8616 chartplotter features a 16 full HD in-plane switching touchscreen display for wider viewing angles, superior clarity, and sunlight readability, even with polarized sunglasses. Experience superior connectivity and networking solutions with complete control of your entire system, right at your fingertips. The device is preloaded with Garmin Navionics+coastal charts and inland mapping that feature Auto Guidance+technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations). Plus, theres support for optional Garmin Navionics Vision+premium map content. The chartplotter includes a premium-performance processor for our fastest map drawing, superior networking, video distribution, and more. Multiple displays can be flat-mounted edge-to-edge to create a sleek glass helm look or mounted flush. NMEA 2000networking and the Garmin Marine Network allow you to build your full marine electronics suite from radar and autopilots to cameras and instruments controlled from your chartplotter and shared across multiple screens. With SmartModestation controls, everything is designed to give you quick, one-touch access to the information you need to ease high-stress situations such as docking. For full control of your boat on your chartplotter screen, use our exclusive OneHelmfeature to connect to many compatible third-party devices. Built-in Garmin SailAssistfeatures provide data, displays, and prerace guidance needed to gain a competitive edge. Download the ActiveCaptain smartphone app to your smartphone or tablet to manage your marine experience from anywhere from trip planning and prefishing to purchasing, downloading, and updating maps. See RPMs, fuel flow, temperature, trim, and more for up to four of your compatible Mercuryengines by using the SmartCraftConnect gateway.

Features:

• Features a 16 full HD in-plane switching touchscreen display for wider viewing angles, superior clarity, and sunlight readability, even with polarized sunglasses


• Built-in support for the full suite of Garmin sonar capabilities, including CHIRP traditional, ClearV and SideV scanning sonars, Ultra High-Definition scanning sonar (no black box required), the LiveScope System and the full line of live sonar products (transducers sold separately)


• Adds a stunning appearance with ability to install multiple displays either flat mounted edge-to-edge to create a sleek glass helm look or mounted flush


• Fully network capable with NMEA 2000 connectivity and the Garmin Marine Network to easily build your marine system from sonar, radar, and autopilots to instruments, cameras, and multimedia


• ANT connectivity and Wi-Fi networking let you connect with your compatible quatix smartwatches, gWind Wireless 2 wind sensor, and more


• See RPMs, fuel flow, temperature, trim, and more for up to four of your compatible Mercury engines by using the SmartCraft Connect gateway


• For full control of your boat on your chartplotter screen, use our exclusive OneHelm feature to connect to many compatible third-party devices


• Preloaded Garmin Navionics+ coastal charts and inland mapping feature Auto Guidance+ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations); plus, theres support for optional Garmin Navionics Vision+ premium map content


• SmartMode station controls enable presets for one-touch access to docking, cruising, fishing, anchoring, and more


• Built-in Garmin SailAssist features provide data, displays, and prerace guidance needed to gain a competitive edge


• Use built-in Wi-Fi networking to pair with the free ActiveCaptain smartphone app for access to the OneChart feature, smart notifications, Garmin Quickdraw Community data, and more.


• Dual microSD card slots on the back of the unit for use with the ActiveCaptain app and mapping cards

What's In The Box

• Chartplotter


• Power cable


• NMEA 2000 T-connector


• NMEA 2000 drop cable


• Flush mount kit


• Protective cover


• Trim piece snap covers


• Documentation


• GPSMAP 8600 series chartplotters are preloaded with Garmin Navionics+ offshore, coastal, and inland water charts for the U.S. and Canada

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Garmin GPSMAP 8616 Chartplotter GN+ is a high-performance marine navigation system designed for serious mariners seeking advanced features and superior control. Featuring a 16-inch full HD in-plane switching touchscreen display, this chartplotter offers wider viewing angles, exceptional clarity, and sunlight readability even with polarized sunglasses. Its sleek, modern design allows for multiple flat-mounted displays to create a seamless glass helm look or flush installation, enhancing the aesthetics of any vessel.
The device comes preloaded with Garmin Navionics+ coastal and inland maps, including Auto Guidance+ technology for planning routes (note: Auto Guidance+ is for planning purposes only and does not replace safe navigation). It also supports optional Garmin Navionics Vision+ premium map content, providing detailed charts and additional features for navigation and exploration. Powered by a premium-performance processor, the GPSMAP 8616 delivers fast map rendering, reliable network connectivity, and video distribution capabilities, making it an ideal centerpiece for integrated marine systems.
Connectivity options extend to NMEA 2000 and Garmin Marine Network, allowing seamless integration with radar, autopilots, cameras, and other marine instruments. ANT and Wi-Fi connectivity enable pairing with compatible smartwatches, wind sensors, and remote controls, providing comprehensive control and monitoring from multiple devices. The chartplotter also offers SmartModestation controls for quick, one-touch access during high-stress situations such as docking, and the exclusive OneHelm feature facilitates connection to third-party devices for full system control.
Additional features include built-in Garmin SailAssist tools for prerace guidance and data display, as well as compatibility with the ActiveCaptain app for remote management of your marine experience. The system displays vital engine data—RPMs, fuel flow, temperature, and trim—for up to four Mercury engines via the SmartCraft Connect gateway. Dual microSD card slots support mapping updates and additional data storage, ensuring your navigation system remains current and versatile. The GPSMAP 8616 is a comprehensive navigation solution, engineered to meet the demands of modern boating with ease of use and advanced capabilities.

Features:

• 16-inch full HD in-plane switching touchscreen display for wider viewing angles, superior clarity, and sunlight readability

• Built-in Garmin sonar support including CHIRP traditional, ClearV, SideV scanning, Ultra High-Definition sonar, and LiveScope System

• Multiple display installation options—flat-mounted edge-to-edge or flush mount for a sleek glass helm appearance

• Full network capability with NMEA 2000 and Garmin Marine Network for seamless system integration

• Wireless and ANT connectivity for pairing with smartwatches, wind sensors, and remote controls

• Displays engine data such as RPMs, fuel flow, temperature, and trim for up to four Mercury engines via SmartCraft Connect

• Exclusive OneHelm feature for controlling compatible third-party devices directly from the chartplotter

• Preloaded Garmin Navionics+ maps with Auto Guidance+ technology and support for Navionics Vision+ premium content

• SmartMode station controls for quick access to docking, cruising, fishing, and anchoring presets

• Built-in Garmin SailAssist features for prerace guidance and competitive edge

• Wi-Fi connectivity with ActiveCaptain app for map management, notifications, community data, and more

• Dual microSD card slots for mapping updates and additional storage

• Includes power cable, NMEA 2000 T-connector and drop cable, flush mount kit, protective cover, and documentation
