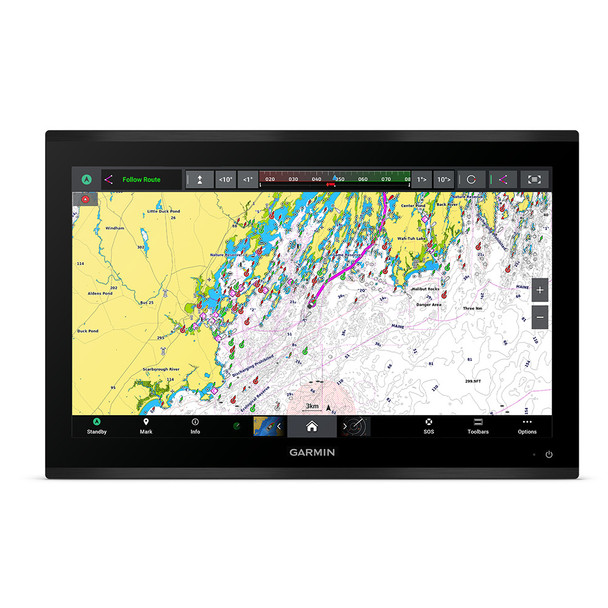

Garmin GPSMAP 9222 22-Inch Premium Chartplotter with Garmin Navionics+

GPSMAP 9222 22" Premium Chartplotter with Garmin Navionics+

WELCOME TO 4K PARADISE

Its the industrys first integrated 4K resolution touchscreen chartplotter. Enjoy edge-to-edge clarity and luxury on a glass helm with premium design and materials plus enhanced connectivity and speed.

• Premium 4K IPS sunlight-readable touchscreen display


• Up to 7 times faster processing power than previous generations


• Gigabit speeds on the Garmin BLUENET network


• Video integration capabilities with HDCP Distribution


• See sonar targets like never before on the 4k display¹



• Network with multiple chartplotters, cameras, and sonars

Premium Chartplotter

The 4K resolution IPS sunlight-readable touchscreen display is available in the industrys largest integrated chartplotter size. Edge-to-edge design provides a seamless and luxurious modern look.

Faster. Much Faster.

Processing power is 7 times faster than previous generations for superior performance; draw charts quickly, and calculate Auto Guidance+ routes² with lightning speed with an optional Garmin Navionics+ subscription.

Garmin BLUENET Network

Build extensive networks with multiple chartplotters, cameras, radars, and sonars and enjoy 10 times faster networking speeds with minimal lag.

Entertainment Options

Enjoy audio and video integrations that allow you to show and hear the same video throughout the screens and speakers on your network.

High-Definition Sonar

Fish in stunning high definition. Hook up to any of our sonar modules, and view sonar targets on the 4K display (transducers sold separately).

Connect Your Ecosystem

Take command through digital system integrations to monitor, automate, and control your vessel. The chartplotter uses the NMEA 2000 and NMEA 0183 networks to connect to your compatible accessories.

Connect

• Software Updates - Get wireless software updates via the ActiveCaptain app with your compatible smartphone or tablet.


• Engine Monitoring - Keep tabs on engine performance with extensive engine integration.


• Custom Look - Manufacturers can customize the homepage layout and splash screen for a brand-tailored experience.

Navigate

• Mapping - Navigate with optional Garmin Navionics+ charts that include Auto Guidance+ technology, daily updates, and more² (subscription required)


• Premium Charts - Get support for Garmin Navionics Vision+ charts with premium relief shading and satellite imagery.


• Know Where You Are - Get your precise location with the included GPS 24xd position receiver and antenna.


• Autopilot - Control the autopilot with any compatible chartplotter on the network with autopilot integration.

Integrate

• Connect Cameras - Get extensive camera support and control to see footage directly on the chartplotter.


• Surround View System - Get a birds-eye view with support for our Surround View Camera System (accessory purchase required).


• Control With Your Watch - Connect to your chartplotter with your compatible Garmin smartwatch.


• Wireless Connectivity - Connect compatible devices with integrated BLUETOOTH and ANT technologies.


• Fish Mapping - Get comprehensive fishing data with the Fish Mapping feature from SiriusXM Radio (accessory purchase and subscription required).


• Verbal Commands - Use spoken commands to control the chartplotter through your compatible headset.


• Weather-Resistant - The GPSMAP 9000 chartplotter is built for harsh marine conditions with an IPX7 water-resistance rating.

In The Box:

• GPSMAP 9222 chartplotter


• Trim snap cover


• Protective cover


• Flush mount hardware


• Power cable


• GPS 24xd NMEA 2000(with pole mount, flush mount, and under deck mount adapters)


• NMEA 2000 backbone/drop cable (2 meters)


• NMEA 2000 power cable


• NMEA 2000 T-connector and terminator kit


• Documentation

General:

• Dimension: 20.8" x 13.6" x 2.7" (52.9 cm x 34.6 cm x 6.9 cm)


• Weight: 17.55 lbs (7.96 kg)


• Waterproof: IPX7


• Touchscreen: Yes


• Display Type: 4K IPS


• Display Size: 18.7" x 10.5" x 21.5" diagonal, 47.5 cm x 26.7 cm x 54.5 cm diagonal


• Display Resolution: 3840 x 2160 pixels


• Mounting Options: Flush or flat


• Input: Touchscreen

Maps Memory:

• Accepts Data Cards: 2 SD Cards


• Compatible with Garmin SD Card Reader: Yes


• Waypoints: 5000


• Track Points: 50,000


• Tracks: 50 saved tracks


• Navigation Routes: 100

Sensors:

• GPS: Yes


• GLONASS: Yes


• GALiLEO: Yes


• BEIDOU: Yes


• Receiver: 10 Hz (included receiver)


• NMEA 2000 Compatible: Yes


• NMEA 0183 Compatible: Yes


• Support WAAS: Yes


• Supports Multi-Band, Multi-Constellation GPS: Yes

Optional Map Support:

• LakeV G3: Yes


• LakeV G3 Ultra: Yes


• Garmin Navionics+: Yes


• Garmin Navionics Vision+: Yes


• Topo 100K: Yes


• Standard Mapping: Yes


• Garmin Quickdraw Contours: Yes


• Raster Chart Support: Yes

Chartplotter Features:

• Smart Mode Compatible: Yes


• AIS: Yes


• DSC: Yes


• Supports Fusion-Link Compatible Radios: Yes


• GSD Black Box Sonar Support: Yes


• GCV Black Box Sonar Support: Yes


• Activecaptain Compatible: Yes


• Grid (Garmin Remote Input Device) Compatible: Yes


• Wireless Remote Compatible: Yes


• Sailing Features: Yes


• Spoken Audio Alerts: Yes


• Onehelm Support: Yes

Electrical Features:

• Power Input: 10 to 35 Vdc


• Typical Current Draw at 12 Vdc: 5.2A


• Maximum Current Draw at 12 Vdc: 5.7A


• Maximum Power Usage at 10 Vdc: 68w

Sonar Features Specifications:

• Displays Sonar: Yes


• Traditional Sonar (Dual Frequency/Beam): Yes (with GCV black box, sold separately)


• Clearv: Yes (with compatible black box sonar)


• Sidev: Yes (with compatible black box sonar)


• Panoptix Sonar: Yes


• Livescope: Yes

Connections:

• NMEA 2000 Ports: 1


• Connections NMEA0183 Input Ports: 4


• NMEA 0183 Input (TX) Ports: 2


• Video Input Ports: 1 (BNC composite); 2 HDMI (HDCP compliant)


• Video Output Ports: 1 HDMI


• J1939 Ports: 1


• Garmin BLUENET Network Ports: 4


• USB Ports: Yes (2x USB-C)


• Bluetooth Pairing: Yes


• Ant+ (Connectivity): Yes


• Garmin Wi-Fi Network (Local Connection): Yes


• Audio Output: Yes

¹Sonar black box and transducers sold separately

²Auto Guidance+ is for planning purposes only and does not replace safe navigation operations

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Experience the pinnacle of marine navigation with the Garmin GPSMAP 9222, a 22-inch premium chartplotter featuring a stunning 4K IPS touchscreen display that delivers edge-to-edge clarity and sunlight readability. Its large, integrated design offers a seamless, modern look while providing intuitive control and detailed mapping capabilities. Whether you're navigating complex waterways or exploring remote fishing spots, this chartplotter provides reliable, high-resolution visuals combined with advanced connectivity options to enhance your boating experience. The rugged IPX7 waterproof rating ensures durability in harsh marine environments, making it suitable for a variety of vessels.

Powered by processing speeds up to seven times faster than previous models, the Garmin GPSMAP 9222 allows for quick chart rendering, auto guidance routing, and smooth multitasking. Its high-speed Garmin BLUENET network facilitates extensive device integration, including multiple chartplotters, cameras, radars, and sonars, with minimal lag. The system supports HDCP video distribution, enabling you to share audio-visual content across your network of compatible devices. With the ability to display sonar targets in stunning high definition, fishers and navigators can benefit from enhanced target visibility and precise underwater data, supporting a variety of sonar modules (transducers sold separately).

The device supports a broad ecosystem of features designed for comprehensive vessel management. It connects to your boat's systems via NMEA 2000 and NMEA 0183 networks, allowing for engine monitoring, autopilot control, and custom interface configurations. Optional Garmin Navionics+ and Vision+ charts, with Auto Guidance+ technology, provide detailed mapping, satellite imagery, and up-to-date navigational data. The GPS 24xd receiver offers pinpoint positioning, while support for various map formats and raster charts expands your navigational options. Additionally, users can manage and view multiple camera feeds, including support for Garmin's Surround View System, to gain comprehensive situational awareness.

Designed for ease of use, the Garmin GPSMAP 9222 integrates wireless updates via the ActiveCaptain app, supports voice commands through compatible headsets, and offers extensive connectivity options including Bluetooth, ANT+, and Wi-Fi. The system's versatile mounting options include flush or flat installation, fitting a wide range of vessel configurations. In the box, you'll find all necessary hardware, including a power cable, mount adapters, and documentation, enabling straightforward installation and setup. With its robust feature set, high-resolution display, and durable construction, the Garmin GPSMAP 9222 is ideal for serious boaters seeking advanced navigation and entertainment capabilities in a single, integrated system.

Features:

• Premium 4K IPS sunlight-readable touchscreen display for clear, detailed visuals

• Processing speeds up to 7 times faster than previous models for quick responsiveness

• Gigabit speeds on Garmin BLUENET network for extensive device connectivity

• HDCP video integration allows sharing of audio-visual content across compatible devices

• High-definition sonar support for detailed underwater imaging (transducers sold separately)

• Supports multiple network connections including NMEA 2000, NMEA 0183, Bluetooth, ANT+, and Wi-Fi

• Compatible with Garmin Navionics+ and Vision+ charts with Auto Guidance+ technology

• Built for harsh marine conditions with IPX7 waterproof rating

• Supports extensive mapping options with SD card slots and raster chart compatibility

• Includes features for engine monitoring, autopilot control, and camera integration
