Garmin GPSMAP 9224 24-Inch Premium Chartplotter with Garmin Navionics+

GPSMAP 9224 24" Premium Chartplotter with Garmin Navionics+

WELCOME TO 4K PARADISE

Its the industrys first integrated 4K resolution touchscreen chartplotter. Enjoy edge-to-edge clarity and luxury on a glass helm with premium design and materials plus enhanced connectivity and speed.

• Premium 4K IPS sunlight-readable touchscreen display


• Up to 7 times faster processing power than previous generations


• Gigabit speeds on the Garmin BLUENET network


• Video integration capabilities with HDCP Distribution


• See sonar targets like never before on the 4k display¹



• Network with multiple chartplotters, cameras, and sonars

Premium Chartplotter

The 4K resolution IPS sunlight-readable touchscreen display is available in the industrys largest integrated chartplotter size. Edge-to-edge design provides a seamless and luxurious modern look.

Faster. Much Faster.

Processing power is 7 times faster than previous generations for superior performance; draw charts quickly, and calculate Auto Guidance+ routes² with lightning speed with an optional Garmin Navionics+ subscription.

Garmin BLUENET Network

Build extensive networks with multiple chartplotters, cameras, radars, and sonars and enjoy 10 times faster networking speeds with minimal lag.

Entertainment Options

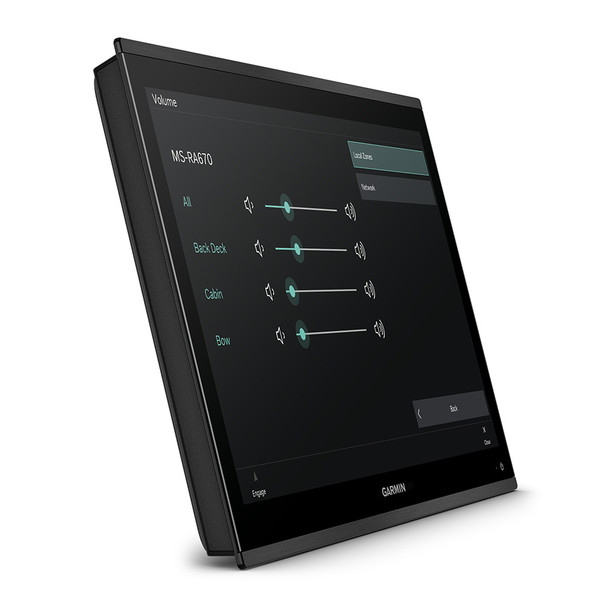

Enjoy audio and video integrations that allow you to show and hear the same video throughout the screens and speakers on your network.

High-Definition Sonar

Fish in stunning high definition. Hook up to any of our sonar modules, and view sonar targets on the 4K display (transducers sold separately).

Connect Your Ecosystem

Take command through digital system integrations to monitor, automate, and control your vessel. The chartplotter uses the NMEA 2000 and NMEA 0183 networks to connect to your compatible accessories.

Connect

• Software Updates - Get wireless software updates via the ActiveCaptain app with your compatible smartphone or tablet.


• Engine Monitoring - Keep tabs on engine performance with extensive engine integration.


• Custom Look - Manufacturers can customize the homepage layout and splash screen for a brand-tailored experience.

Navigate

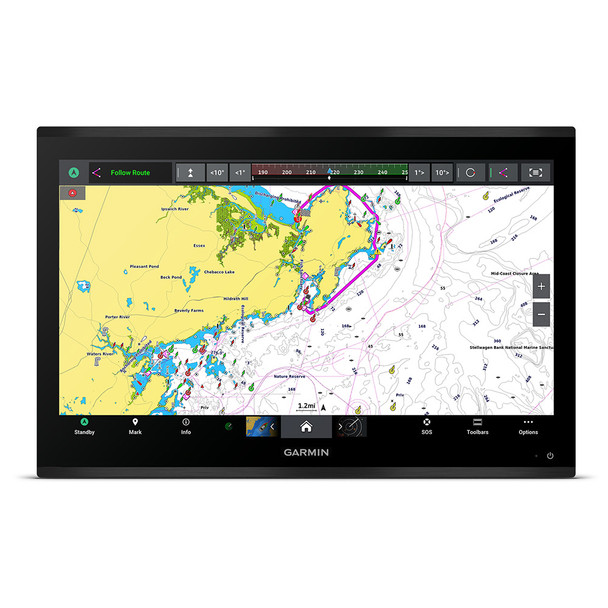

• Mapping - Navigate with optional Garmin Navionics+ charts that include Auto Guidance+ technology, daily updates, and more² (subscription required)


• Premium Charts - Get support for Garmin Navionics Vision+ charts with premium relief shading and satellite imagery.


• Know Where You Are - Get your precise location with the included GPS 24xd position receiver and antenna.


• Autopilot - Control the autopilot with any compatible chartplotter on the network with autopilot integration.

Integrate

• Connect Cameras - Get extensive camera support and control to see footage directly on the chartplotter.


• Surround View System - Get a birds-eye view with support for our Surround View Camera System (accessory purchase required).


• Control With Your Watch - Connect to your chartplotter with your compatible Garmin smartwatch.


• Wireless Connectivity - Connect compatible devices with integrated BLUETOOTH and ANT technologies.


• Fish Mapping - Get comprehensive fishing data with the Fish Mapping feature from SiriusXM Radio (accessory purchase and subscription required).


• Verbal Commands - Use spoken commands to control the chartplotter through your compatible headset.


• Weather-Resistant - The GPSMAP 9000 chartplotter is built for harsh marine conditions with an IPX7 water-resistance rating.

In The Box:

• GPSMAP 9224 chartplotter


• Trim snap cover


• Protective cover


• Flush mount hardware


• Power cable


• GPS 24xd NMEA 2000(with pole mount, flush mount, and under deck mount adapters)


• NMEA 2000 backbone/drop cable (2 meters)


• NMEA 2000 power cable


• NMEA 2000 T-connector and terminator kit


• Documentation

General:

• Dimension: 22.7" x 14.8" x 2.7" (57.6 cm x 37.6 cm x 6.9 cm)


• Weight: 20.60 lbs (9.34 kg)


• Waterproof: IPX7


• Touchscreen: Yes


• Display Type: 4K IPS


• Display Size: 20.7" x 11.7" x 23.8" diagonal, 52.7 cm x 29.6 cm x 60.5 cm diagonal


• Display Resolution: 3840 x 2160 pixels


• Mounting Options: Flush or flat


• Input: Touchscreen

Maps Memory:

• Accepts Data Cards: 2 SD Cards


• Compatible with Garmin SD Card Reader: Yes


• Waypoints: 5000

Sensors:

• Receiver: 10 Hz (included receiver)


• NMEA 2000 Compatible: Yes


• NMEA 0183 Compatible: Yes

Optional Map Support:

• LakeV G3: Yes


• LakeV G3 Ultra: Yes


• Garmin Navionics+: Yes


• Garmin Navionics Vision+: Yes


• Topo 100K: Yes


• Standard Mapping: Yes


• Garmin Quickdraw Contours: Yes


• Raster Chart Support: Yes

Chartplotter Features:

• Smart Mode Compatible: Yes


• AIS: Yes


• DSC: Yes


• Supports Fusion-Link Compatible Radios: Yes


• GSD Black Box Sonar Support: Yes


• GCV Black Box Sonar Support: Yes


• Activecaptain Compatible: Yes


• Grid (Garmin Remote Input Device) Compatible: Yes


• Wireless Remote Compatible: Yes


• Sailing Features: Yes


• Spoken Audio Alerts: Yes


• Onehelm Support: Yes

Electrical Features:

• Power Input: 10 to 35 Vdc


• Typical Current Draw at 12 Vdc: 6.5A


• Maximum Current Draw at 12 Vdc: 6.8A


• Maximum Power Usage at 10 Vdc: 82w

Sonar Features Specifications:

• Displays Sonar: Yes


• Traditional Sonar (Dual Frequency/Beam): Yes (with GCV black box, sold separately)


• Clearv: Yes (with compatible black box sonar)


• Sidev: Yes (with compatible black box sonar)


• Panoptix Sonar: Yes


• Livescope: Yes

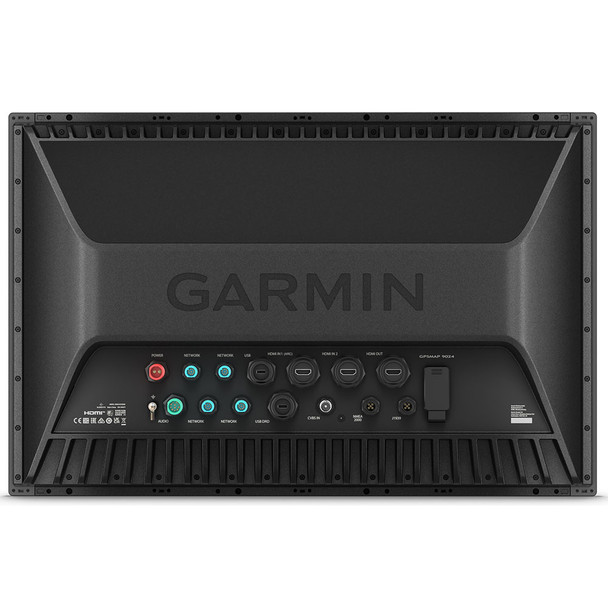

Connections:

• NMEA 2000 Ports: 1


• Connections NMEA0183 Input Ports: 4


• NMEA 0183 Input (TX) Ports: 2


• Video Input Ports: 1 (BNC composite); 2 HDMI (HDCP compliant)


• Video Output Ports: 1 HDMI


• J1939 Ports: 1


• Garmin BLUENET Network Ports: 4


• USB Ports: Yes (2x USB-C)


• Bluetooth Pairing: Yes


• Ant+ (Connectivity): Yes


• Garmin Wi-Fi Network (Local Connection): Yes


• Audio Output: Yes

¹Sonar black box and transducers sold separately

²Auto Guidance+ is for planning purposes only and does not replace safe navigation operations

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Experience unparalleled navigation and entertainment with the Garmin GPSMAP 9224, a 24-inch premium chartplotter featuring industry-leading 4K IPS sunlight-readable touchscreen display. Designed for serious mariners, this chartplotter offers edge-to-edge clarity, seamless aesthetics, and robust connectivity options, making it a centerpiece for modern vessel control and navigation. Its sleek glass helm design combines luxury with functionality, providing an intuitive interface for navigation, sonar imaging, and system management. The expansive display ensures you see every detail clearly, whether you're charting routes or monitoring sonar targets in high definition, enhancing safety and efficiency on the water.
Powered by up to seven times faster processing than previous models, the GPSMAP 9224 delivers rapid chart rendering, route calculations, and auto guidance planning. When paired with an optional Garmin Navionics+ subscription, you gain access to detailed mapping, daily updates, and advanced features like Auto Guidance+ technology, helping you navigate confidently in unfamiliar waters. The integrated Garmin BLUENET network supports gigabit speeds, allowing you to connect multiple chartplotters, cameras, radars, and sonars with minimal lag, creating a comprehensive and synchronized navigation ecosystem. Entertainment capabilities include audio and video integration, enabling you to display and hear content across your networked devices for an enhanced on-board experience.
The chartplotter’s high-definition sonar support brings stunning underwater visuals, with compatibility for traditional, SideV, LiveScope, and Panoptix sonar modules (sold separately). You can view sonar images in crisp detail directly on the 4K display, improving fish detection and underwater awareness. The device seamlessly integrates with your vessel’s ecosystem via NMEA 2000 and NMEA 0183 networks, providing extensive system control, engine monitoring, and customizable interface options. Wireless features such as Bluetooth, ANT+, and Wi-Fi simplify device pairing, software updates, and remote control. Additional features include support for premium charts like Garmin Navionics Vision+, built-in GPS 24xd receiver for precise positioning, and support for autopilot and camera systems, including the Surround View Camera System (accessories sold separately).
This rugged and water-resistant chartplotter is built to withstand harsh marine environments, with a compact footprint designed for flush or flat mounting. It comes complete with a protective cover, power and NMEA cables, and mounting hardware, making installation straightforward. Whether for deep-sea fishing, cruising, or high-tech vessel management, the Garmin GPSMAP 9224 delivers advanced navigation, entertainment, and system integration in one comprehensive package, elevating your maritime experience to new heights.

Features:

• Premium 4K IPS sunlight-readable touchscreen display for clear visibility in bright conditions

• Up to 7 times faster processing power for rapid chart rendering and route calculation

• Gigabit speeds on Garmin BLUENET network for extensive device connectivity with minimal lag

• Video integration with HDCP Distribution for displaying audio and video content across multiple screens

• High-definition sonar support for traditional, SideV, Panoptix, and LiveScope imaging (modules sold separately)

• Supports advanced mapping options including Garmin Navionics+, Vision+, and raster charts

• Built-in GPS 24xd receiver for precise positioning and navigation

• Supports autopilot control, engine monitoring, and customizable user interface

• Wireless connectivity via Bluetooth, ANT+, and Wi-Fi for device pairing and software updates

• Supports cameras, including Surround View Camera System for comprehensive vessel surveillance

• Robust IPX7 water resistance rating designed for harsh marine conditions

• Expandable system with multiple NMEA 2000 and NMEA 0183 connections for system integration

• Includes protective cover, mounting hardware, and comprehensive cables for installation

• Supports Auto Guidance+ technology for efficient route planning (subscription required)
