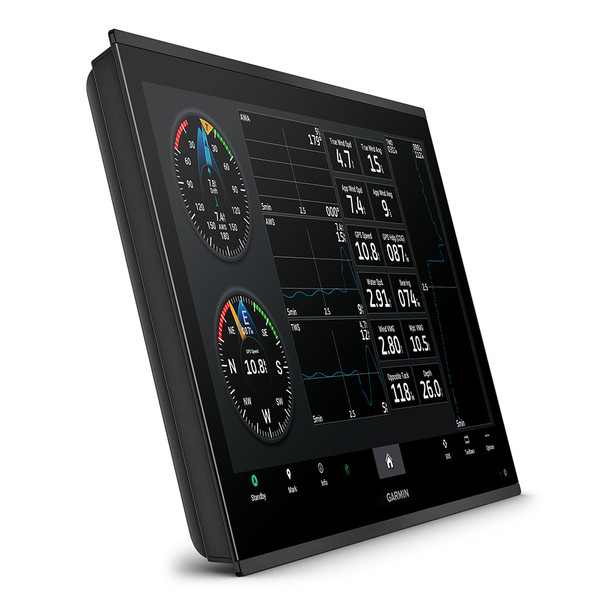

Garmin GPSMAP 9227 27-Inch Premium Chartplotter with Garmin Navionics+

GPSMAP 9227 27" Premium Chartplotter with Garmin Navionics+

WELCOME TO 4K PARADISE

Its the industrys first integrated 4K resolution touchscreen chartplotter. Enjoy edge-to-edge clarity and luxury on a glass helm with premium design and materials plus enhanced connectivity and speed.

• Premium 4K IPS sunlight-readable touchscreen display


• Up to 7 times faster processing power than previous generations


• Gigabit speeds on the Garmin BLUENET network


• Video integration capabilities with HDCP Distribution


• See sonar targets like never before on the 4k display¹



• Network with multiple chartplotters, cameras, and sonars

Premium Chartplotter

The 4K resolution IPS sunlight-readable touchscreen display is available in the industrys largest integrated chartplotter size. Edge-to-edge design provides a seamless and luxurious modern look.

Faster. Much Faster.

Processing power is 7 times faster than previous generations for superior performance; draw charts quickly, and calculate Auto Guidance+ routes² with lightning speed with an optional Garmin Navionics+ subscription.

Garmin BLUENET Network

Build extensive networks with multiple chartplotters, cameras, radars, and sonars and enjoy 10 times faster networking speeds with minimal lag.

Entertainment Options

Enjoy audio and video integrations that allow you to show and hear the same video throughout the screens and speakers on your network.

High-Definition Sonar

Fish in stunning high definition. Hook up to any of our sonar modules, and view sonar targets on the 4K display (transducers sold separately).

Connect Your Ecosystem

Take command through digital system integrations to monitor, automate, and control your vessel. The chartplotter uses the NMEA 2000 and NMEA 0183 networks to connect to your compatible accessories.

Connect

• Software Updates - Get wireless software updates via the ActiveCaptain app with your compatible smartphone or tablet.


• Engine Monitoring - Keep tabs on engine performance with extensive engine integration.


• Custom Look - Manufacturers can customize the homepage layout and splash screen for a brand-tailored experience.

Navigate

• Mapping - Navigate with optional Garmin Navionics+ charts that include Auto Guidance+ technology, daily updates, and more² (subscription required)


• Premium Charts - Get support for Garmin Navionics Vision+ charts with premium relief shading and satellite imagery.


• Know Where You Are - Get your precise location with the included GPS 24xd position receiver and antenna.


• Autopilot - Control the autopilot with any compatible chartplotter on the network with autopilot integration.

Integrate

• Connect Cameras - Get extensive camera support and control to see footage directly on the chartplotter.


• Surround View System - Get a birds-eye view with support for our Surround View Camera System (accessory purchase required).


• Control With Your Watch - Connect to your chartplotter with your compatible Garmin smartwatch.


• Wireless Connectivity - Connect compatible devices with integrated BLUETOOTH and ANT technologies.


• Fish Mapping - Get comprehensive fishing data with the Fish Mapping feature from SiriusXM Radio (accessory purchase and subscription required).


• Verbal Commands - Use spoken commands to control the chartplotter through your compatible headset.


• Weather-Resistant - The GPSMAP 9000 chartplotter is built for harsh marine conditions with an IPX7 water-resistance rating.

In The Box:

• GPSMAP 9227 chartplotter


• Trim snap cover


• Protective cover


• Flush mount hardware


• Power cable


• GPS 24xd NMEA 2000(with pole mount, flush mount, and under deck mount adapters)


• NMEA 2000 backbone/drop cable (2 meters)


• NMEA 2000 power cable


• NMEA 2000 T-connector and terminator kit


• Documentation

General:

• Dimension: 25.8" x 16.7" x 3.3" (65.5 cm x 42.3 cm x 8.5 cm)


• Weight: 27.65 lbs (12.54 kg)


• Waterproof: IPX7


• Touchscreen: Yes


• Display Type: 4K IPS


• Display Size: 23.5" x 13.2" x 27.0" diagonal, 59.7 cm x 33.6 cm x 68.5 cm diagonal


• Display Resolution: 3840 x 2160 pixels


• Mounting Options: Flush or flat


• Input: Touchscreen

Maps Memory:

• Accepts Data Cards: 2 SD Cards


• Compatible with Garmin SD Card Reader: Yes


• Waypoints: 5000


• Track Points: 50,000


• Tracks: 50 saved tracks


• Navigation Routes: 100

Sensors:

• GPS: Yes


• GLONASS: Yes


• GALiLEO: Yes


• BEIDOU: Yes


• Receiver: 10 Hz (included receiver)


• NMEA 2000 Compatible: Yes


• NMEA 0183 Compatible: Yes


• Support WAAS: Yes


• Supports Multi-Band, Multi-Constellation GPS: Yes

Optional Map Support:

• LakeV G3: Yes


• LakeV G3 Ultra: Yes


• Garmin Navionics+: Yes


• Garmin Navionics Vision+: Yes


• Topo 100K: Yes


• Standard Mapping: Yes


• Garmin Quickdraw Contours: Yes


• Raster Chart Support: Yes

Chartplotter Features:

• Smart Mode Compatible: Yes


• AIS: Yes


• DSC: Yes


• Supports Fusion-Link Compatible Radios: Yes


• GSD Black Box Sonar Support: Yes


• GCV Black Box Sonar Support: Yes


• Activecaptain Compatible: Yes


• Grid (Garmin Remote Input Device) Compatible: Yes


• Wireless Remote Compatible: Yes


• Sailing Features: Yes


• Spoken Audio Alerts: Yes


• Onehelm Support: Yes

Electrical Features:

• Power Input: 10 to 35 Vdc


• Typical Current Draw at 12 Vdc: 7.2A


• Maximum Current Draw at 12 Vdc: 8.1A


• Maximum Power Usage at 10 Vdc: 97w

Sonar Features Specifications:

• Displays Sonar: Yes


• Traditional Sonar (Dual Frequency/Beam): Yes (with GCV black box, sold separately)


• Clearv: Yes (with compatible black box sonar)


• Sidev: Yes (with compatible black box sonar)


• Panoptix Sonar: Yes


• Livescope: Yes

Connections:

• NMEA 2000 Ports: 1


• Connections NMEA0183 Input Ports: 4


• NMEA 0183 Input (TX) Ports: 2


• Video Input Ports: 1 (BNC composite); 2 HDMI (HDCP compliant)


• Video Output Ports: 1 HDMI


• J1939 Ports: 1


• Garmin BLUENET Network Ports: 4


• USB Ports: Yes (2x USB-C)


• Bluetooth Pairing: Yes


• Ant+ (Connectivity): Yes


• Garmin Wi-Fi Network (Local Connection): Yes


• Audio Output: Yes

¹Sonar black box and transducers sold separately

²Auto Guidance+ is for planning purposes only and does not replace safe navigation operations

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Experience the ultimate in marine navigation with the Garmin GPSMAP 9227 27-inch premium chartplotter featuring Garmin Navionics+ charts. This state-of-the-art device boasts a 4K IPS sunlight-readable touchscreen display that delivers stunning edge-to-edge clarity, ensuring visibility even in direct sunlight. Its large, integrated design provides a modern and luxurious look while offering comprehensive navigation capabilities. The high-resolution display allows you to see sonar targets and detailed charts with exceptional detail, enhancing your fishing and cruising experience.

Powered by up to seven times faster processing than previous models, the GPSMAP 9227 ensures rapid chart rendering and route calculations, enabling you to plan your trips efficiently. Its integration with the Garmin BLUENET network supports gigabit speeds, allowing seamless communication between multiple chartplotters, cameras, radars, and sonars. The device supports video integration capabilities, letting you display and hear video content across connected screens and speakers, adding entertainment options to your vessel. Fish in high definition using compatible sonar modules, with the display providing clear visualization of sonar targets.

Designed for robust marine use, the GPSMAP 9227 features an IPX7 water-resistance rating, making it suitable for harsh conditions. It supports a variety of mapping options including Garmin Navionics+ and Vision+ charts, with auto guidance technology for safer, more efficient navigation. The device is compatible with multiple sensors and accessories via NMEA 2000 and NMEA 0183 networks, allowing you to monitor engine performance, connect cameras, and control autopilot systems. Wireless connectivity features, including Bluetooth, ANT+, and Wi-Fi, enable easy updates, device pairing, and remote control through compatible Garmin smartwatches. Complete with a comprehensive set of accessories, mounting hardware, and a detailed manual, the Garmin GPSMAP 9227 is the ideal choice for serious boaters seeking premium performance and connectivity in one integrated system.

Features:

• Premium 4K IPS sunlight-readable touchscreen display for clear visibility

• Processing power up to 7 times faster than previous models for superior performance

• Gigabit speeds on Garmin BLUENET network for minimal lag and extensive connectivity

• Video integration with HDCP distribution for entertainment options

• High-definition sonar support to visualize fish targets clearly (sonar modules sold separately)

• Supports multiple chart options including Garmin Navionics+ and Vision+

• Built-in GPS receiver with multi-constellation support for precise positioning

• Robust marine-grade construction with IPX7 water resistance rating

• Connectivity with cameras, autopilot, and other marine sensors via NMEA 2000 and NMEA 0183

• Wireless features including Bluetooth, ANT+, and Wi-Fi for updates and device control

• Supports auto guidance, waypoint management, and route planning for efficient navigation

• Expandable with SD cards for additional maps and data storage
