Garmin GPSMAP 9500 Black Box Marine Chartplotter System

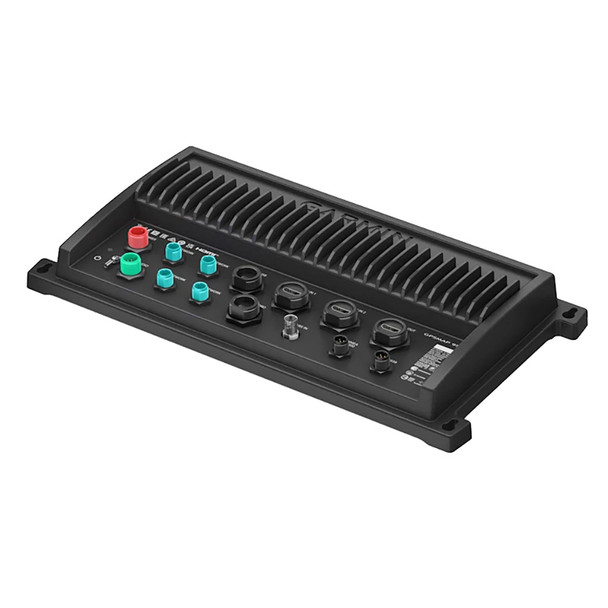

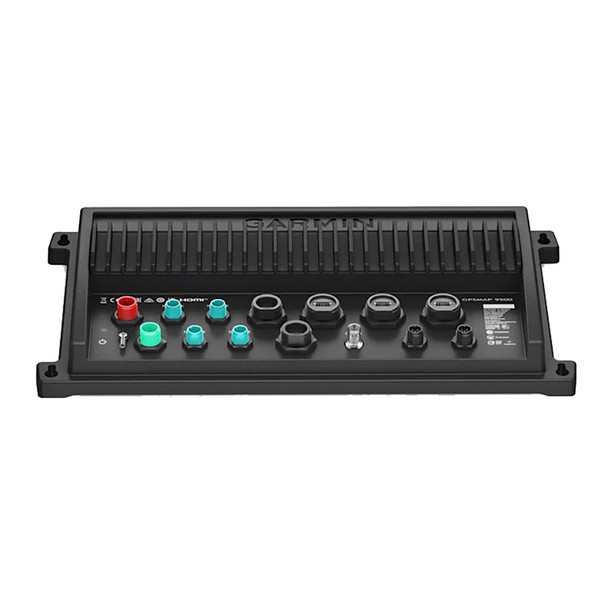

GPSMAP 9500 Black Box

Plot Your Paradise with a Premium Black Box System

• Connect to third-party HDCP-compliant monitors through HDMI with USB DRD capability for touchscreen support


• For superior performance, gain up to 7 times faster processing power than previous generations


• Build extensive networks with reliable connectivity and gigabit speeds on the new Garmin BlueNet network


• Integrate with the Garmin suite of sonar options, including LiveScope and Panoptix sonars, GSD sonar modules1, and more


• Take command of monitoring, control, and automation systems with support for EmpirBus systems and other third-party solutions via OneHelm integrations


• Enjoy high-quality entertainment with video integration capabilities through HDCP distribution

For Captains Who Demand the Best

Bring paradise to the dash of your boat when you connect the premium GPSMAP 9500 black box to your HDCP-compliant monitors. It features up to 7 times faster processing power than previous generations for superior performance so you can draw charts quickly and calculate routes with lightning speed. It adds comprehensive connectivity throughout your vessel.

Create a Fully Integrated Helm

With the GPSMAP 9500 black box, you can build an extensive network for your helm that links multiple chartplotters, monitors, radars, cameras, and sonars and enjoy up to 10 times faster networking speeds with minimal lag. Keep tabs on engine performance with extensive engine integration. Control your autopilot with any compatible chartplotter on the network with autopilot integration. Connect cameras to see footage directly on the chartplotter, including a birds-eye view of your vessel with support for our Surround View Camera System2. Enjoy audio and video integrations that allow you to show and hear the same video throughout the screens and speakers on your network.

Connect with Your System

Integrated Wi-Fi, BLUETOOTH, and ANT technologies connect compatible devices to your system. Youll enable easy, wireless software updates via the ActiveCaptain app with your compatible smartphone or tablet. Use your compatible Garmin smartwatch for remote control of key MFD features, including chart zoom, layout shortcut, Fusion stereo, autopilot, and more and stream important data from your system directly to your wrist. You can even use spoken commands to control chartplotters through your compatible headset.

Fish with Stunning Detail

Get full support for our suite of sonar options1, including CHIRP traditional sonar, GSD 28 xCHIRP high-powered sonar, ClearV and SideV scanning sonars, and Panoptix PS70 or LiveScope XR live sonar options. You can also add comprehensive fishing data with the Fish Mapping feature from SiriusXM Radio (required accessory sold separately; subscription required).

Add Our Best Chart Coverage

Get support for detail-rich mapping of coastal waters, lakes, and rivers for your region with Garmin Navionics+ and Garmin Navionics Vision+ cartography. Garmin Navionics+ charts make it easy to plot your course with high-resolution depth range shading, 1 contours, and more. You can also upgrade to Garmin Navionics Vision+ charts, which include premium relief shading for an easy-to-interpret, clearer view of the bottom structure, satellite imagery for superior situational awareness, and more. Both products provide Auto Guidance+ technology3 that lets you navigate with suggested dock-to-dock routings. Plus, charts are constantly being enhanced with new and amended content; thousands of updates are made every day. Your purchase includes a 1-year subscription to daily chart updates via the ActiveCaptain app and much more.

In The Box:

• GPSMAP 9500 Black Box


• Power cable


• Backbone/drop cable (2 meters) and T-connector for the NMEA 2000 Network


• Mounting hardware


• Documentation

General:

• Dimension: 15.1 x 7.8 x 1.9 (38.3 x 19.8 x 4.7 cm)


• Weight: 3.49 lbs (1.583 kg)


• Waterproof: IPX7


• Display Type: None (external display)


• Display Size: None (external display)


• Display Resolution: 1920x1080, 1024x600, 1280x800, 1920x1200, 3840x2160, 1024x768, 1280x1024 pixels

Maps Memory:

• Accepts Data Cards: no (USB Card Reader required)


• Compatible with Garmin SD Card Reader: Yes


• Waypoints: 5000


• Track Points: 50,000


• Tracks: 50 saved tracks


• Navigation Routes: 100

Sensors:

• GPS: Yes


• GLONASS: Yes


• GALiLEO: Yes


• BEIDOU: Yes


• NMEA 2000 Compatible: Yes


• NMEA 0183 Compatible: Yes


• Support WAAS: Yes


• Supports Multi-Band, Multi-Constellation GPS: Yes

Optional Map Support:

• Garmin Navionics+: Yes


• Garmin Navionics Vision+: Yes


• Standard Mapping: Yes


• Garmin Quickdraw Contours: Yes


• Raster Chart Support: Yes

Chartplotter Features:

• Smart Mode Compatible: Yes


• AIS: Yes


• DSC: Yes


• Supports Fusion-Link Compatible Radios: Yes


• GSD Black Box Sonar Support: Yes


• GCV Black Box Sonar Support: Yes


• Activecaptain Compatible: Yes


• Grid (Garmin Remote Input Device) Compatible: Yes


• Wireless Remote Compatible: Yes


• Sailing Features: Yes


• Spoken Audio Alerts: Yes


• Onehelm Support: Yes

Electrical Features:

• Power Input: 10 to 35 Vdc


• Typical Current Draw at 12 Vdc: 2.0A


• Maximum Current Draw at 12 Vdc: 3.3A


• Maximum Power Usage at 10 Vdc: 40w

Sonar Features Specifications:

• Displays Sonar: Yes


• Traditional Sonar (Dual Frequency/Beam): yes (with compatible black box sonar)


• Clearv: Yes (with compatible black box sonar)


• Sidev: Yes (with compatible black box sonar)


• Panoptix Sonar: Yes


• Livescope: Yes

Connections:

• NMEA 2000 Ports: 1


• NMEA 0183 Input (Rx) Ports: 1


• NMEA 0183 Input (TX) Ports: 1


• Video Input Ports: 1 (BNC composite); 2 HDMI (HDCP compliant)


• Video Output Ports: 1 HDMI


• J1939 Ports: 1


• Garmin BLUENET Network Ports: 4


• USB Ports: Yes (2x USB-C)


• Bluetooth Pairing: Yes


• Ant+ (Connectivity): Yes


• Garmin Wi-Fi Network (Local Connection): Yes


• Audio Output: Yes

Sonar black box and transducers sold separately

²Required accessory sold separately

³Auto Guidance+ is for planning purposes only and does not replace safe navigation operations

Wi-Fi is a registered trademark of the Wi-Fi Alliance. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc.

Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.

The Garmin GPSMAP 9500 Black Box offers a powerful and flexible solution for advanced marine navigation and system integration. Designed for professional captains who demand top-tier performance, this system features up to seven times faster processing speeds than previous models, enabling quick chart rendering, route calculation, and seamless multitasking. Its ability to connect with third-party HDCP-compliant monitors via HDMI with USB DRD support makes it ideal for creating a fully integrated helm environment. The system's robust connectivity, including gigabit speeds over the Garmin BlueNet network, ensures reliable communication between multiple devices such as chartplotters, radars, cameras, and sonars, minimizing lag and enhancing situational awareness. This integration facilitates comprehensive control over your vessel’s monitoring, automation, and navigation systems, including support for EmpirBus and third-party solutions through OneHelm compatibility. Additionally, the Garmin GPSMAP 9500 Black Box supports high-quality video distribution, enabling entertainment options on your vessel with HDCP video streaming capabilities. With a sleek external design, the unit is built to withstand harsh marine environments with an IPX7 waterproof rating, ensuring durability and longevity in demanding conditions. The system’s versatile sensor support includes GPS, GLONASS, GALILEO, and BEIDOU, providing precise positioning using multi-constellation satellite navigation. It accommodates extensive mapping options, including Garmin Navionics+ and Vision+ charts, with features like high-resolution depth shading, contours, and auto-guidance for effortless navigation. The device also supports a variety of sonar modules, including traditional CHIRP, ClearV, SideV, and advanced Panoptix and LiveScope options, making it suitable for serious anglers and marine professionals alike. Wireless connectivity through Wi-Fi, Bluetooth, and ANT+ enables remote control via smart devices and streaming of system data directly to your smartwatch or headset, while the included accessories facilitate easy installation and expansion. Whether charting, fishing, or managing onboard systems, the Garmin GPSMAP 9500 Black Box delivers a comprehensive, high-performance solution tailored to demanding marine environments.

Features:

• High-speed processing: Up to 7 times faster than previous models for rapid charting and routing

• Extensive connectivity: Supports gigabit speeds over Garmin BlueNet network for reliable vessel-wide communication

• Multiple display support: Connects to third-party HDCP monitors via HDMI with USB DRD for touchscreen support

• Advanced sonar compatibility: Supports CHIRP, GSD, GCV, Panoptix, and LiveScope sonar modules

• Comprehensive system integration: Compatible with EmpirBus, OneHelm, and third-party automation systems

• Video distribution: Supports HDCP video streaming for entertainment on multiple screens

• Robust satellite navigation: Supports GPS, GLONASS, GALILEO, and BEIDOU for precise positioning

• Mapping options: Compatible with Garmin Navionics+ and Vision+ charts with auto-guidance features

• Wireless control: Use Wi-Fi, Bluetooth, and ANT+ for remote device management, software updates, and data streaming

• Durable design: IPX7 waterproof rating ensures reliable operation in harsh marine environments
