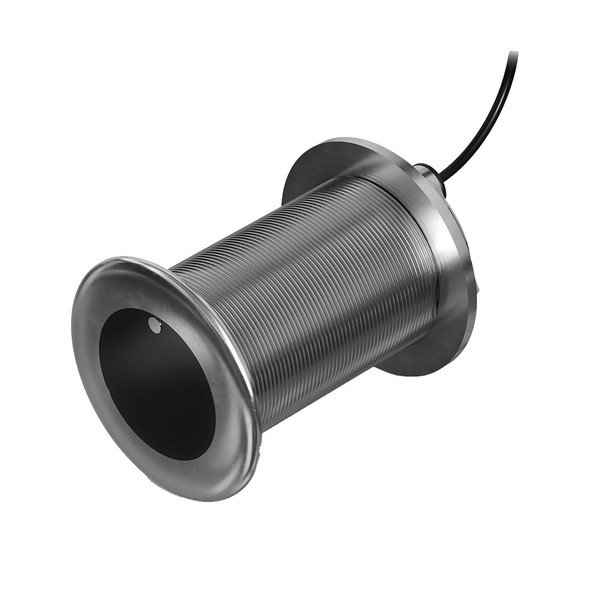

Garmin GT15M-THF 20 Degree 600W Stainless Steel Thru-Hull Transducer for Midsize Boats

GT15M-THF 20 Degree 600W SS Thru-Hull Transducer

Designed for reduced drag and optimum sonar performance on midsize fishing and cruising boats, this flush-mounted, 600-watt mid-band CHIRP transducer clearly defines fish arches, structure, and bottom depth returns on the display.

Midband Chirp Traditional Sonar

This 8-pin, 600-watt stainless steel thru-hull transducer features high-definition mid-band CHIRP sonar that clearly defines fish targets and structures down to 1,200 in saltwater and 1,900 in freshwater.

Broad Frequency Range

Use the perfect frequency for the waters being fished. Covering the medium frequency range, this transducer pulses from 85165 kHz, displaying a wide coverage area, crisp fish arches, and accurate depth readings.

Optimum Ping Sensitivity

Offering excellent sonar sensitivity, low noise, high resolution, and good separation of targets, this robust transducer makes it easier than ever to distinguish fish and structure on a compatible chartplotter display.

Thru-Hull Installation

A durable stainless steel housing and stem offer straightforward thru-hull flush mounting for minimum drag and optimum beam orientation for clear sonar returns.

Auto-ID Technology

Enjoy simple plug-and-play operation with Garmin auto-identification technology which enables the sonar to configure itself to the transducer being used automatically.

Fits Various Hull Types

Configurable for various boat hull materials, including fiberglass, composite, steel, aluminum, and wood, the transducer is available in a range of tilt versions to accommodate deadrise angles of 020 degrees without a fairing block.

Specifications:

• Transducer Frequency: Medium band chirp (85-165 Khz)


• Transducer Power: 600 W


• Transducer Beam Width: 24-16 degrees


• Transducer Maximum Depth: 1200 Ft Saltwater; 1900 Ft Freshwater


• Transducer Cable Length: 50 ft.


• Transducer Depth/Speed/Temperature: Depth, temperature


• Transducer Number of Pins: 8-Pin


• Transducer Supported Deadrise/Transom Angles: 20 degrees support hull deadrise angles from 16 degrees to 24 degrees


• Housing Material: Stainless steel

In the Box:

• GT15M-THF transducer


• Jam nut


• Washer


• Thread isolator


• Hull isolator


• Documentation

The Garmin GT15M-THF transducer is engineered for optimal performance on midsize fishing and cruising boats, offering a streamlined flush-mounted design that minimizes drag while delivering high-definition sonar imaging. Its stainless steel housing ensures durability in harsh marine conditions, and the 600-watt power output provides clear and detailed bottom, fish, and structure returns. Ideal for saltwater and freshwater applications, this transducer supports depths of up to 1,200 feet in saltwater and 1,900 feet in freshwater, making it suitable for a wide range of fishing environments. The broad frequency range of 85-165 kHz allows users to select the ideal pulse for their specific waters, whether focusing on broad coverage or target separation. Featuring mid-band CHIRP technology, the Garmin GT15M-THF delivers crisp fish arches and accurate depth readings, enabling anglers to identify targets with confidence. Its auto-ID technology ensures plug-and-play compatibility, automatically configuring the transducer with compatible Garmin chartplotters for seamless integration. The transducer's design accommodates various hull materials, including fiberglass, composite, steel, aluminum, and wood, with options for different deadrise angles up to 20 degrees, ensuring a perfect fit for many vessel types. The 50-foot cable provides flexible installation options, and the included mounting hardware simplifies setup. Whether used in saltwater or freshwater, this transducer enhances your sonar capabilities by providing high-resolution images, excellent target separation, and reliable performance for successful fishing trips. The package includes all necessary mounting components and documentation for straightforward installation and operation, making it a versatile choice for serious anglers and boaters seeking reliable sonar performance.

Features:

• High-definition mid-band CHIRP sonar for clear fish and structure detection

• Supports depths up to 1,200 feet in saltwater and 1,900 feet in freshwater

• Broad frequency range of 85-165 kHz for versatile water coverage

• Durable stainless steel housing for long-lasting marine use

• Auto-ID technology for quick, plug-and-play setup

• Supports various hull materials and deadrise angles up to 20 degrees

• Includes 50-foot transducer cable for flexible installation

• Designed for minimal drag with streamlined flush-mount design
