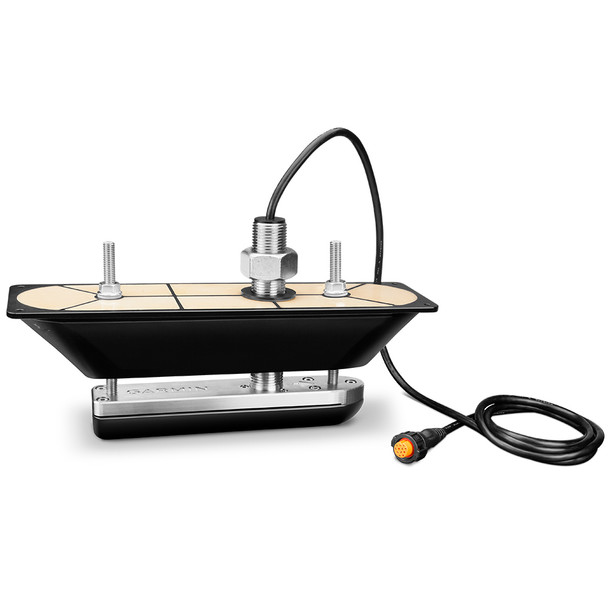

Garmin GT34UHD-TH Ultra HD Thru-Hull Transducer for High-Definition Sonar Imaging

GT34UHD-TH Ultra HD Thru-Hull Transducer

Ultra High-Definition Sonar System Thru-hull Transducer
Add stunningly clear Ultra High-Definition ClearV and Ultra High-Definition SideV scanning sonar images to your compatible chartplotter via the GCV 20 sonar module. It includes 3 arrays, including a downward-facing element element with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz) and its recommended for hulls with up to a 5-degree deadrise angle.

Ultra High-Definition ClearV Scanning
This mode provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.

Ultra High-Definition SideV Scanning
This mode delivers stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.

Specifications:

• Frequency:

• Ultra High-Definition ClearV: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz


• Ultra High-Definition SideV: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz

• Power: 500W


• Beamwidth:

• Ultra High-Defintion ClearV: 0.74 x 46


• Ultra High-Defintion SideV: 0.44 x 55

• Maximum depth:

• Ultra High-Defintion ClearV: 200' down


• Ultra High-Defintion SideV: 125' sides, 250' total

• Depth/Speed/Temperature: Depth and Temperature


• Number of pins: 12-pin


• Cable length: 20'


• Supported deadrise/Transom angles: Up to 25 deadrise

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Garmin GT34UHD-TH Ultra HD Thru-Hull Transducer offers advanced sonar capabilities for detailed underwater imaging. Designed for compatible chartplotters with the GCV 20 sonar module, this transducer provides stunningly clear Ultra High-Definition ClearV and SideV scanning images. Its three-array design includes a downward-facing element with a frequency range of 0.8 MHz to 1.2 MHz, making it suitable for hulls with up to a 5-degree deadrise angle. This setup ensures precise detection of structures and fish both below and to the sides of your vessel, enhancing your fishing and navigation experience.

Features:

• Ultra High-Definition ClearV Scanning: Provides crisp images of structures and fish beneath your boat, capable of reaching depths up to 200 feet.

• Ultra High-Definition SideV Scanning: Offers clear images of sides extending up to 125 feet, with a total coverage of 250 feet, ideal for quick area scouting.

• Power: 500 Watts for strong signal output and detailed imaging.

• Beamwidth: 0.74 x 46 degrees for ClearV and 0.44 x 55 degrees for SideV modes, ensuring wide coverage and high-resolution imaging.

• Maximum Depth: 200 feet for ClearV and 125 feet to the sides, 250 feet total for SideV scanning, providing comprehensive underwater views.

• Supported Deadrise: Suitable for hull deadrise angles up to 25 degrees, ensuring versatility across different vessel types.

• Cable Length: 20 feet for flexible installation options.

• Compatibility: Requires a 12-pin connection and supports depth, speed, and temperature measurements.
