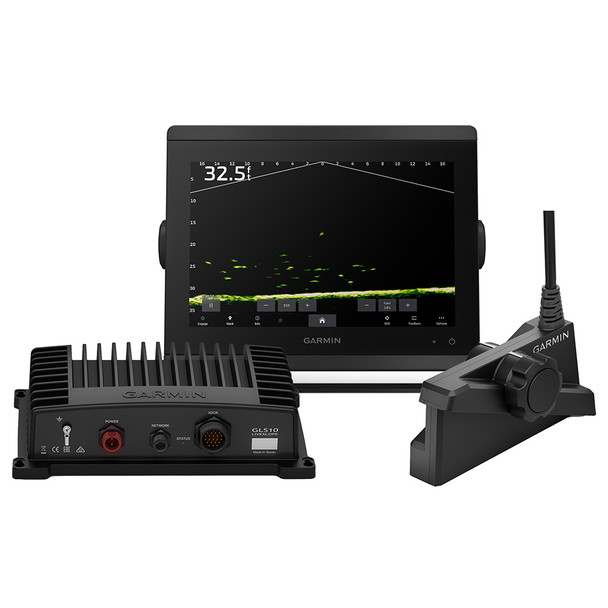

Garmin LiveScope Plus Ice House System with GPSMAP 8610xsv Chartplotter and Transducer

LiveScope Plus Ice House System

Upgrade your on-ice experience with the GPSMAP 8610xsv chartplotter, LiveScope Plus System, and everything else youll need to catch more fish.

Features:

• 10 full HD IPS touchscreen display


• Share to your TV or external display via HDMI output (HDMI cable not included)


• LiveScope forward and LiveScope down modes


• Preloaded with Garmin Navionics+ mapping of 25,000+ inland and coastal lakes

GPSMAP 8610xsv

This chartplotter features a 10 full HD IPS display with touchscreen and HDMI output, so you can display sonar on your TV or external display.

Ice House System

Get a GLS 10 sonar black box with a swivel pole mount and an LVS34-IF transducer, which features a transducer cable that stays flexible even in freezing conditions.

LiveScope Modes

With an included 0-degree pole mount, the transducer can quickly switch between LiveScope Forward and LiveScope Down modes to adapt to your fishing technique.

Garmin Navionics+ Maps

You get preloaded Garmin Navionics+ maps for exceptional detail on more than 23,000 U.S. lakes.

Custom Combos

You can create custom pages that combine sonar, flashers, and maps on your display.

Built-In Sonar

See below and around your boat with built-in sonar capabilities, whether youre on the ice or the open water.

In the Box:

• GPSMAP 8610xsv with preloaded Garmin Navionics+ Coastal Charts and Inland Mapping for U.S. or Canada


• LiveScope Plus LVS34-IF transducer


• GLS 10 black box sonar module with power and network cables


• Ice fishing pole mount


• Documentation

General Specifications:

• Dimensions: 10.25 x 8.0625 x 2.95 in. / 25.9 x 20.5 x 7.5 cm


• Touchscreen: Yes


• Input: Touchscreen


• Display Size: 8.6 x 5.4 in., 10.1" in. diagonal / 21.8 x 13.7 cm; 25.7 cm diagonal


• Display Resolution: 1920 x 1200 pixels


• Display Type: WVGA, IPS


• Weight: 15.4 lbs / 7.0 kg


• Waterproof: IPX7

Maps Memory:

• Accepts Data Cards: 2 microSD cards


• Waypoints: 5000


• Track Points: 50,000


• Tracks: 50 saved tracks


• Navigation Routes: 100

Ice Fishing Details:

• Bag Size: None


• Included Transducer: LiveScope Plus System with LVS34-IF


• Transducer Holding Feature: Pole mount

Sensors:

• Has Built-in Receiver: Yes


• Receiver: 10 Hz


• NMEA 2000 Compatible: Yes


• GPS: Yes


• Glonass: Yes


• Galileo: Yes


• Supports Waas: Yes

Built-in Maps:

• Built-in Auto Guidance+: Yes (downloadable via ActiveCaptain app)

Optional Map Support:

• Bluechart G3: Yes


• Bluechart G3 Vision: Yes


• Lakev G3: Yes


• Lakev G3 Ultra: Yes


• Garmin Navionics+: Yes


• Garmin Navionics+ VIision+: Yes


• TOPO: Yes


• Standrad Mapping: Yes


• Garmin Quickdraw Contours: Yes


• Raster Chart Support: Yes

Chartplotter Features:

• ActiveCaptain Compatable: Yes

Electrical Features:

• Power Input: 10 to 32 Vdc

Sonar Features Specifications:

• Displays Sonar: Yes


• Power Output: 1 kW


• Traditional Sonar (Dual Frequency/Beam): Built-in (dual channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)


• ClearV: Built-in 260/455/800/1000/1200 kHz


• SideV: Built-in 260/455/800/1000/1200 kHz


• Panoptix Sonar: Yes


• Livescope; Yes

Connections:

• NMEA 2000 Ports: 1


• Video Input Ports: 1 (BNC composite); 1 HDMI (HDCP compliant)


• Video Output Ports: 1 HDMI


• Garmin Marine Network Ports: 2


• 8-Pin Transducer Ports: Yes


• 12-Pin Transducer Ports: Yes


• Bluetooth Pairing: Yes


• Ant+ (Connectivity): Yes


• Garmin Wi-Fi Network (Local Connection): Yes

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Upgrade your ice fishing setup with the Garmin LiveScope Plus Ice House System, featuring the powerful GPSMAP 8610xsv chartplotter and advanced sonar technology. The system offers a 10-inch full HD IPS touchscreen display with a resolution of 1920 x 1200 pixels, providing crystal-clear visuals and intuitive navigation. The HDMI output allows you to share sonar images on a larger external display or TV, making it easier to monitor fish activity and depth in real-time. The system includes a preloaded Garmin Navionics+ map with detailed inland and coastal lake coverage, covering over 25,000 lakes across the United States and Canada, ensuring you have accurate navigation data wherever you fish.
The Ice House System features a GLS 10 sonar black box with a swivel pole mount and an LVS34-IF transducer, designed to stay flexible even in freezing temperatures. The included transducer supports LiveScope forward and down modes, allowing you to switch quickly between views based on your fishing technique. The transducer's pole mount enables easy positioning and quick setup, making it ideal for ice fishing environments. The system's built-in sonar capabilities provide comprehensive coverage below and around your boat or ice hole, ensuring you won't miss a strike.
Customization options include creating personalized pages that combine sonar data, maps, and flasher views, offering a tailored fishing experience. The system supports multiple optional mapping sources, including Bluechart G3, LakeV G3, and Garmin Navionics+ Vision+, providing flexibility for different water bodies. It also features built-in auto guidance, waypoint management with capacity for 5,000 marks, and support for up to 100 navigation routes. The Garmin system connects seamlessly via Bluetooth, Wi-Fi, and NMEA 2000, allowing integration with other marine devices and easy data sharing. Durable and waterproof to IPX7 standards, the Garmin LiveScope Plus Ice House System is built to withstand harsh ice fishing conditions and deliver reliable performance.
In the box, you'll find the GPSMAP 8610xsv chartplotter, LiveScope Plus LVS34-IF transducer, GLS 10 sonar module with power and network cables, ice fishing pole mount, and comprehensive documentation. Whether you're targeting fish in open water or ice fishing, this system provides advanced sonar imaging, detailed mapping, and user-friendly controls to improve your catch rate and enhance your fishing experience.

Features:

• 10-inch full HD IPS touchscreen display for clear visuals

• HDMI output for sharing sonar images to external displays

• Supports LiveScope forward and down modes for real-time imaging

• Preloaded Garmin Navionics+ maps covering over 25,000 lakes

• Includes GLS 10 sonar black box with swivel pole mount

• Flexible LVS34-IF transducer designed for freezing conditions

• Customizable pages combining sonar, maps, and flashers

• Built-in sonar with comprehensive coverage below and around the boat

• Supports multiple optional maps like Bluechart G3 and LakeV G3

• Auto guidance, waypoint management, and navigation routing

• Wireless and network connectivity via Bluetooth, Wi-Fi, and NMEA 2000

• Rugged waterproof design suitable for ice fishing environments
