Description

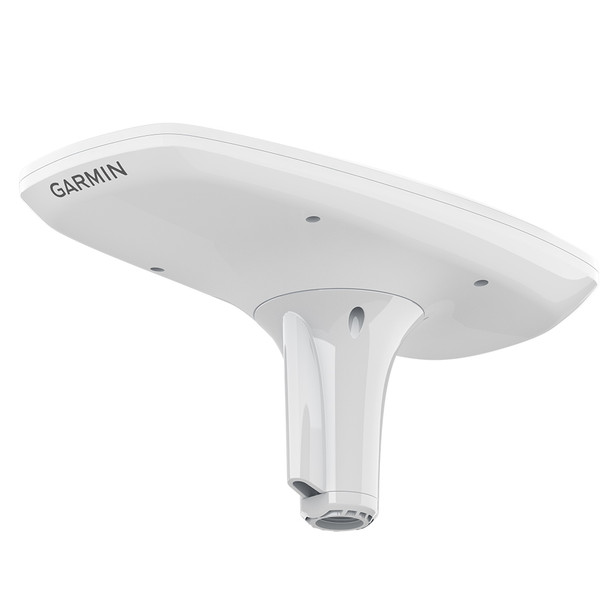

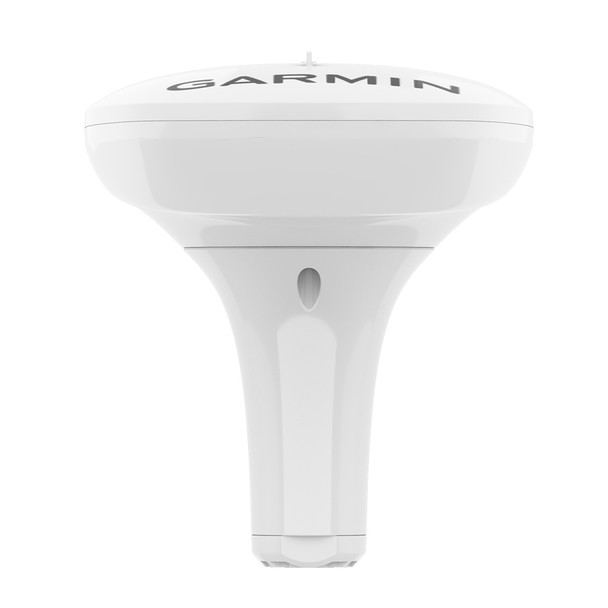

MSC 10 Marine Satellite Compass
KNOW EXACTLY WHERE YOU'RE HEADED
Get reliable, accurate heading information with the easy-to-install GPS-based MSC 10 marine satellite compass.
Features:
- Accuracy comes easy when youve got a multi-band GNSS receiver on board.
- Faster updates. More detailed tracking.
- Rough waters got you worried MSC 10 delivers pitch, roll, and heave info, too.
- If other onboard systems need a heading sensor, weve got you covered.
MULTI-BAND GNSS AND MULTI-CONSTELLATION
The multi-band GNSS (L1 and L5 GPS) and multi-constellation (GPS, Galileo1, GLONASS, and BeiDou1) receiver deliver precise positioning2.
BOAT HEAVE AND MORE
Get reliable, accurate boat heave, pitch, and roll information even in rough waters.
BUILT-IN ATTITUDE HEADING REFERENCE SYSTEM (AHRS)
With a fully integrated attitude and heading reference system for better GPS heading at all speeds, including pitching in rough seas, taking sharp turns, or standing still.
ACCURATE HEADING DATA
Multiple receivers deliver heading accuracy within 2 degrees. Because it uses satellite signals, you dont have to worry about magnetic interference.
PRIMARY SENSOR ACROSS MULTIPLE SYSTEMS
You can use MSC 10 as the primary sensor for autopilots and other onboard systems that need accurate heading information.
NMEA 2000 NETWORK COMPATIBLE
Get heading, pitch, roll, and heave information delivered straight to your compatible Garmin chartplotter via the NMEA 2000 network.
EASY TO INSTALL
This compact device is simple to install and easily integrates into your Garmin marine ecosystem.
10 HZ UPDATE RATE
Get better, more detailed tracking information, thanks to the 10 Hz position update rate.
BACKUP HEADING SENSOR
In the extremely rare case that you lose a satellite signal, MSC 10 will seamlessly transition from GPS-based to magnetometer-based heading3.
What's In The Box
- MSC-10 Marine Satellite Compass
- Pole mount
- Mounting hardware
- NMEA 2000backbone/drop cable (6 meters)
- NMEA 2000 T-connector
- Documentation
1Supported when available
2< 1 meter CEP, < 3 meters 95%
3 Magnetometer calibration required for backup magnetic heading support
The Garmin MSC 10 Marine Satellite Compass is an essential navigation tool designed for precise heading and positioning in marine environments. Equipped with a multi-band GNSS receiver supporting L1 and L5 GPS signals, as well as multiple satellite constellations including Galileo, GLONASS, and BeiDou, it ensures highly accurate positioning within 1 meter CEP and less than 3 meters 95% confidence. This advanced system allows for faster updates and more detailed tracking, giving mariners reliable data even in challenging conditions. Its compact design facilitates easy installation within the Garmin ecosystem, seamlessly integrating with NMEA 2000 networks to deliver heading, pitch, roll, and heave information directly to compatible chartplotters. The 10 Hz update rate provides real-time responsiveness, crucial for precise navigation and maneuvering. The MSC 10 also features an integrated attitude and heading reference system (AHRS), which improves GPS heading accuracy at all speeds, including in rough seas or during sharp turns. In the unlikely event of satellite signal loss, a backup magnetometer-based heading sensor offers continuous heading data, requiring magnetometer calibration for optimal performance. This device is suitable as the primary heading sensor for autopilots and other onboard systems that depend on accurate orientation data. The package includes everything needed for installation, such as a pole mount, hardware, and NMEA 2000 backbone/drop cable. Designed for durability and ease of use, the Garmin MSC 10 enhances marine navigation with advanced satellite technology and comprehensive environmental data, ensuring confident and safe sailing in all conditions.
Features:
- Multi-band GNSS receiver supporting L1 and L5 GPS signals for precise positioning
- Multi-constellation support including GPS, Galileo, GLONASS, and BeiDou for enhanced accuracy
- 10 Hz update rate for real-time tracking and responsive navigation
- Integrated attitude and heading reference system (AHRS) improves GPS heading accuracy at all speeds
- Provides reliable pitch, roll, and heave data even in rough waters
- Compatible with NMEA 2000 networks for seamless data sharing with compatible Garmin devices
- Can serve as the primary heading sensor for autopilots and onboard systems requiring accurate orientation
- Backup magnetometer-based heading sensor ensures continuous operation during satellite signal loss
- Easy to install with included hardware and mounting options
- Designed for marine environments with durable construction and compact form factor
