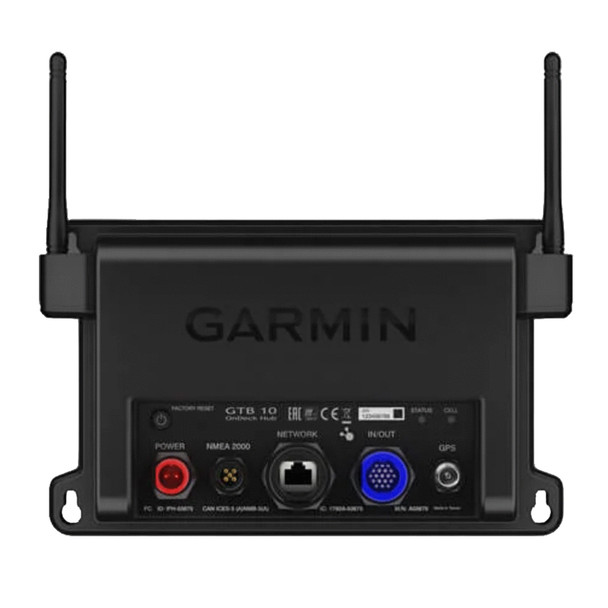

Garmin OnDeck Hub 010-02134-00 Marine Remote Connectivity System

OnDeck Hub

BE THERE FROM VIRTUALLY ANYWHERE

Track, monitor and control up to 5 switches on your boat with the OnDeck system, a fully integrated remote connectivity solution¹.

Features:

• Door open Bilge running Peace of mind comes in the form of text alerts and updates.


• New features, same app. ActiveCaptain keeps you connected to your boat¹



• The always-on OnDeck connection has the potential to keep you in contact from just about anywhere.


• To protect your passion, you must have a plan. An active subscription is required.

Track

Be the first to know if a security sensor has been triggered, or if your boat has been moved. The internal GPS sensor updates every 15 or 30 minutes, depending on power status, and will send text alerts¹ if your boat leaves the geo-fenced area.

Monitor

Get updates¹ on your boats battery status, bilge activity, shore power, temperature changes and more. Set up alarm notifications in the ActiveCaptain app.

Control

Get out on the water faster when you turn on up to 5 selected systems, including battery chargers, ice makers and more, from afar via relay switches.

Activecaptain APP

Download the ActiveCaptain app to your compatible smartphone to manage your vessel. Its where you can set up alarm notifications, take control of your boat and so much more¹.

Store Data

Securely collect vessel data with the GTB 10 OnDeck Hub and store it in the cloud for up to 30 days.

Always-On Connection

The GTB 10 hub uses 3G/4G coverage.

Backup Battery

A 48-hour internal backup battery allows access to OnDeck after the boat battery is depleted or the power is disconnected.

Subscription

To stay in touch with your vessel, an active subscription plan is required. Choose between an annual plan or pay month-to-month.

Full Integration

The OnDeck system is a seamless addition to your current marine electronics (MFD via Garmin Marine Network, engines, NMEA 2000 sensors).

In The Box:

• OnDeck Hub


• OnDeck securitysensor


• OnDeck temperature sensor


• OnDeck shore power sensor


• OnDeck relay switch 12 Vdc(1x)


• Power cable


• In/out data cable (19-pin), sensor/relay output


• Garmin Marine Network cable


• NMEA 2000 drop cable


• NMEA 2000 T-connector

¹ An active subscription plan is required. Both OnDeck Hub and users device must have connectivity to a 3G/4G network; see coverage area for OnDeck

The Garmin OnDeck Hub 010-02134-00 offers a comprehensive remote monitoring and control solution designed specifically for marine vessels. This system allows boat owners to track, monitor, and manage multiple onboard systems conveniently from virtually anywhere using an active cellular connection. Its seamless integration with existing marine electronics ensures a smooth setup process, providing peace of mind with real-time alerts and updates on critical vessel parameters. The OnDeck Hub supports connectivity via 3G/4G networks, enabling reliable communication even when you are miles from your boat. Equipped with a built-in backup battery, it maintains functionality for up to 48 hours during power outages or if the boat's main battery is depleted. The system's cloud data storage capability ensures that vessel information, including security events, temperature changes, and system statuses, is securely stored for up to 30 days for review and analysis.

Features:

• Remote Control: Turn on or off up to 5 systems such as battery chargers or ice makers remotely via relay switches.

• Real-Time Monitoring: Receive updates on battery health, bilge activity, shore power status, temperature, and more with customizable alerts.

• Advanced Tracking: Internal GPS updates every 15 or 30 minutes and provides geo-fenced alerts if the vessel moves unexpectedly or triggers security sensors.

• Connectivity: Uses 3G/4G cellular networks for an always-on connection, enabling communication from nearly any location.

• Data Storage: Securely logs vessel data in the cloud for up to 30 days, accessible through the Garmin ActiveCaptain app.

• Backup Power: Features a 48-hour internal backup battery to maintain system operation during power interruptions.

• Easy Integration: Compatible with Garmin Marine Network, NMEA 2000 sensors, and marine electronics for a fully integrated system.

• Subscription Requirement: An active subscription plan is necessary to access all remote features and alerts, with flexible billing options available.
