Garmin Reactor 40 Hydraulic Autopilot Corepack with SmartPump for Enhanced Marine Navigation

Reactor 40 Hydraulic Corepack with SmartPump

Garmins Most Responsive Autopilot System on the Water

• Solid-state 9-axis Attitude Heading Reference System (AHRS) mounts in any orientation


• Minimal heading error, course deviation, rudder movement, and power consumption with a more comfortable ride


• Minimal commissioning and calibration


• One compact, brushless SmartPump fits most hydraulically steered boating applications


• Shadow Drive technology keeps you in control, even when autopilot is engaged

With a complete package designed for powerboats and sailboats, Garmin brings advanced marine technology to the boating public that was once only available for commercial boats. The Reactor 40 autopilot series is simply the most responsive autopilot system we have ever offered. Experience the ultimate hydraulic autopilot performance when paired with the one-size-fits-most, high-reliability, brushless SmartPump.

Solid-state 9-axis AHRS

With its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation. In addition, this system greatly minimizes heading error, course deviation, rudder movement, and power consumption while providing a comfortable ride for all on board.

Reacts to Conditions

This amazing autopilot actually reacts to the sea to hold your course. Even when the boat is pitching and rolling, you can remain confident that the Reactor 40 autopilot will keep you on your desired course.

Minimal Commissioning and Calibration

All autopilots require commissioning and calibration all of them. We know you just want to get on the water, so we made this process as fast and easy as possible. Thats the power of simple.

Full Integration with Garmin Chartplotters

You have full control of Reactor 40 from the chartplotter display. Combined with a compatible Garmin networked chartplotter andBlueChart g2 Visioncharts, you can enjoy optional features such as Auto Guidance, which automatically steers GPS paths.

One SmartPump Is the Easy Solution

The Reactor 40 autopilot with SmartPump puts an end to guessing which pump size will work with your particular boat. One SmartPump works for most boats; for optimum control and confidence, youll know you have the right pump for your boat. Plus, you get complete control in a smaller size with better thermal performance, higher reliability, and lower power consumption. It also includes color-coded connectors to make it very easy to install. Pretty smart.

Limit the Maximum Flow Rate

Reactor 40 with SmartPump automatically adjusts the maximum flow rate for a particular boat from 0 to 2.4 L per minute. It also uses a brushless motor, which provides increased reliability, longer pump life, reduced power consumption, quiet operation, a smaller package, improved thermal performance, and higher efficiency.

Eliminate Risk of Rudder Hard Over

The Reactor 40 autopilot with SmartPump is a complete autopilot package. SmartPump is 1 integrated unit comprised of a motor drive circuit with the pump in a single assembly. Equipped with Intelligent Rudder Rate Technology (IRRT), it slows the rudder rate when the vessel is at high speeds and speeds up the rudder rate when the vessel is at lower speeds to provide optimal performance and safety in all conditions. The brushless motor drive eliminates the risk of rudder hard over due to hardware or software failures.

Enjoy a Longer Lasting System

Boating environments are harsh, especially in saltwater. So our SmartPump is protected from the elements. SmartPump is engineered from corrosion-resistant components, including anodized aluminum and nickel-plated steel parts.

Experience Advanced Autopilot Technology

With a Reactor 40 with SmartPump aboard your boat, you can have control wherever you are on the boat. In addition to holding its course in virtually all weather and wind conditions, the system can smoothly perform a variety of preprogrammed trolling and search procedures. Plus, with a compatible Garmin networked chartplotter and BlueChart g2 Vision charts (sold separately), you gain optional features such as Auto Guidance, which automatically steers GPS paths.

Stay in Control with Shadow Drive Technology

The Reactor 40 with SmartPump features patented Shadow Drive technology. This gives you the security of knowing you maintain control, even when the autopilot is engaged. The Shadow Drive system automatically disengages the autopilot if the helm is turned, giving you the freedom to maneuver the boat. The autopilot automatically re-engages when you hold a steady course.

Connect to Networked Devices

The Reactor 40 autopilot with SmartPump for hydraulically steered boats is operated using up to 3 GHC helm control units. GHC communicates with the autopilot system via your NMEA 2000 network, so autopilot heading data can be shared easily with other devices. This enables MARPA and chart overlay when connected to a Garmin chartplotter. An optional handheld wireless remote control is also available; however, for the highest level of convenience, control GHC usinga compatiblequatix 3orquatix 5marine multisport smartwatch.

Add Even More Peace of Mind

Add an optionalGRF 10rudder feedback sensor, and you can further enhance the performance of your Reactor 40 autopilot with SmartPump.

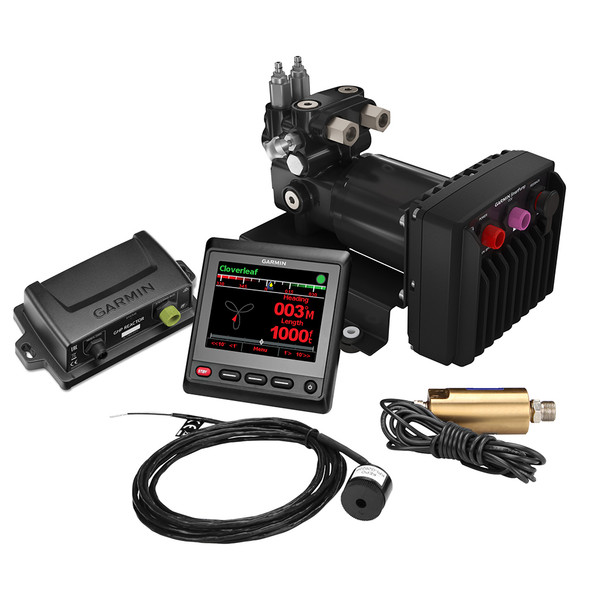

Whats In The Box

• SmartPump


• Reactor 40 CCU (Course Computer Unit)


• GHC 20 helm control display


• ECU (Electronic Control Unit) power cable


• Interconnect cable


• Shadow Drive


• Buzzer


• NMEA 2000 drop cables (2 meters)


• NMEA 2000 power cable


• NMEA 2000 T-connectors


• Male and female terminators


• Documentation

¹Auto Guidance is for planning purposes only and does not replace safe navigation operations.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Garmin Reactor 40 Hydraulic Autopilot Corepack with SmartPump offers advanced control for powerboats and sailboats, delivering the most responsive autopilot experience Garmin has ever developed. Featuring a solid-state 9-axis AHRS (Attitude Heading Reference System), this system can be mounted in any orientation, ensuring precise heading and course management even in challenging sea conditions. Its sophisticated technology minimizes heading errors, course deviations, and rudder movements while consuming less power, providing a smoother and more comfortable ride for everyone on board. The Reactor 40 is designed for quick and straightforward installation, with minimal commissioning and calibration required so you can spend more time on the water and less time setting up.

Features:

• Solid-state 9-axis AHRS: Mounts in any orientation for flexible installation and precise navigation

• Sea-reactive autopilot: Adjusts to sea conditions to maintain course despite pitching and rolling

• Easy commissioning and calibration: Simplifies setup for quick deployment

• Full Garmin chartplotter integration: Control and monitor from compatible Garmin display units

• SmartPump technology: One size fits most boats with high reliability and low power consumption

• Flow rate control: Automatically adjusts maximum flow from 0 to 2.4 L per minute for optimal performance

• Brushless motor: Ensures increased reliability, longer pump life, and quieter operation

• Intelligent Rudder Rate Technology: Adjusts rudder movement based on vessel speed for safety and performance

• Corrosion-resistant SmartPump: Built with anodized aluminum and nickel-plated steel for durability in harsh environments

• Shadow Drive technology: Maintains control by automatically disengaging when helm is turned, then re-engaging seamlessly

• Network connectivity: Operates with up to three GHC helm controls via NMEA 2000, enabling data sharing and advanced features

• Optional remote control: Compatible with Garmin quatix 3 and 5 marine smartwatches for convenient operation
