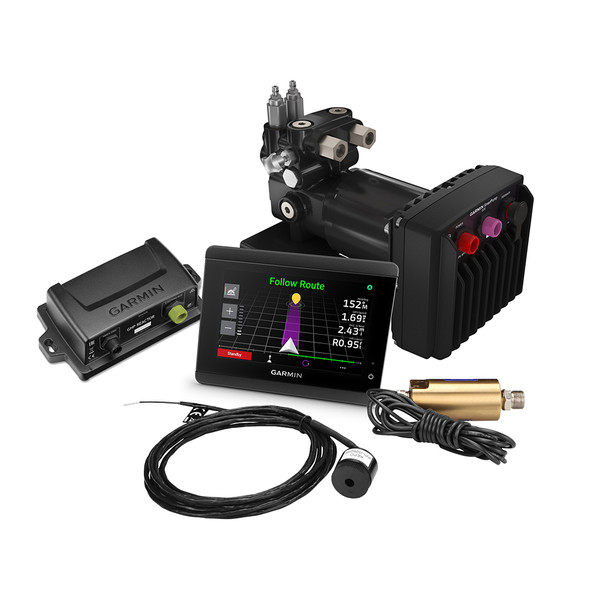

Garmin Reactor 40 Hydraulic Corepack with SmartPump v2 and GHC 50 Autopilot Instrument Pack

Reactor 40 Hydraulic Corepack with SmartPump v2 GHC 50 Autopilot Instrument Pack

Every Captain Needs a Co-Pilot. Designed for powerboats, this Reactor 40 hydraulic corepack with SmartPump v2 and GHC 50 display gives you the extra hand you need, so you can explore paradise worry-free.

Features:

• This Reactor 40 corepack is the perfect companion for your hydraulically steered system.


• With its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation. It even reduces power consumption, minimizes heading error, and more.


• Even when youre pitching or rolling, this autopilot reacts to sea conditions to keep you on course.


• You just want to get on the water, so we made calibration fast and easy. Thats the power of simplicity.


• Control your autopilot from anywhere on your boat by using your compatible Garmin devices, including the Reactor autopilot remote, select quatix marine smartwatches, and more (requires a compatible Garmin chartplotter or GHC 50 autopilot instrument.)


• The SmartPump v2 is a one-size-fits-most solution that provides optimal control and confidence on the water. Plus, gain better thermal performance, higher reliability, and lower power consumption.


• Gain more freedom when maneuvering your boat. This corepack allows for optional Shadow Drive technology to automatically disengage the autopilot when you turn the wheel.


• Want more The optional GHC 50 autopilot instrument enhances your autopilot experience.


• When connected to your compatible Garmin chartplotter, all Reactor 40 corepacks offer powerboat and sailing features, including heading hold and step turns plus wind hold and tack/jibe when paired with a wind sensor (sold separately.)

Technical Specifications - SmartPump v2:

• Dimensions (H x W x D) - 7 3/4" x 7 1/2" x 9 5/8" (197 mm x 190 mm x 244 mm)


  • Weight - 16.5 lbs (7.5 kg)


  • Temperature range - From 5F to 131F (from -15C to 55C)


  • Material - Electronics Control Unit (ECU) - fully gasketed, aluminum alloy. Bracket - carbon steel. Manifold - aluminum alloy. Motor - aluminum alloy


  • Power cable length - 9 ft (2.7 m)


  • Power input - 11.5-30 Vdc


  • Fuse - 40 A, blade-type


  • Main power usage (standby) - less than 1 A.


  • Main power usage (engaged) - 5-10 A and peak - 34 A


  • Flow rate - Configurable from 0 to 2.4 L per minute


  • Compatible with steering cylinder sizes from 4-24 cu in. 7-second lock to lock up to 17 cu in





Technical Specifications - CCU:

• Dimensions: 3 19/32" diameter (91.4 mm)


• Weight: 5.6 oz (159 g)


• Temperature range: From 5F to 131F (from -15C to 55C)


• Case material: Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards


• CCU cable length: 9.5' (3 m)


• NMEA 2000 power input: 9-16 V


• NMEA 2000 LEN: 3 (150 mA)

Technical Specifications - Buzzer/Alarm:

• Dimensions (L Diameter) - 29/32" 1.0" (23 mm 25 mm)


• Weight - 2.4 oz (68 g)


• Temperature range - from 5F to 131F (from -15C to 55C)


• Cable length - 10' (3.0 m)

Technical Specifications - Reactor 40:

• Unit dimensions (W x H x D) - 4.3" x 4.4" x 1.9" (10.9 x 11.2 x 4.8 cm)


• Display resolution (W x H) - 320 x 240 pixels


• Display Type - QVGA color LCD display


• NMEA output - NMEA 2000


• Supply voltage - 10 to 20V


• Operating temperature - -15 C to 70 C (5 F to 158 F)

Technical Specifications - GHC 50:

• Dimensions (H x W x D) - 5.5 x 4.1 x 2.0 (14.0 x 10.5 x 5.1 cm)


• Display Type - 800 x 480 WVGA


• Display Size - 5" (12.7 cm)


• Touch Display - Yes


• Knob Control - With GRID 10/20


• Remote Control via ANT+ Connectivity - Yes


• Wi-Fi Connectivity - Yes


• NMEA 2000 Networking - Yes


• Ethernet - Yes

What's in the Box

• GHC 50 Marine Autopilot Display


• SmartPump v2


• Reactor 40 CCU (Course Computer Unit)


• ECU (Electronic Control Unit) power cable


• Interconnect cable


• Shadow Drive


• Buzzer


• NMEA 2000 drop cables (2 meters)


• NMEA 2000 power cable


• NMEA 2000 T-connectors


• Male and female terminators


• Documentation

*Sold as an Individual

The Garmin Reactor 40 Hydraulic Corepack with SmartPump v2 and GHC 50 display offers a comprehensive autopilot solution designed specifically for powerboats. This system provides precise course control, enabling you to navigate safely and confidently in various sea conditions. The corepack integrates a compact, fully integrated hydraulic autopilot unit with advanced features to support both recreational and professional marine operators. Its robust design ensures reliable performance even in challenging environments, making it an essential component for any powerboat owner seeking automation and ease of navigation.
Featuring the SmartPump v2, this autopilot delivers improved thermal performance, higher reliability, and lower power consumption, all while offering seamless control over steering functions. The autopilot's 9-axis AHRS (Attitude and Heading Reference System) allows flexible mounting options and reduces heading error, ensuring precise navigation regardless of boat pitch or roll. Control can be managed remotely via compatible Garmin devices, including the Reactor remote and select Garmin smartwatches, providing convenient access from anywhere onboard. The system also supports Shadow Drive technology, which automatically disengages the autopilot when you turn the wheel, offering greater maneuverability and safety.
The GHC 50 autopilot display enhances your experience with an easy-to-use interface featuring an 800 x 480 WVGA touchscreen and Wi-Fi, Ethernet, and NMEA 2000 connectivity. The display supports multiple features like heading hold, step turns, wind hold, and tack/jibe when paired with a compatible wind sensor. The entire package includes essential components such as the course computer unit (CCU), electronic control unit (ECU), shadow drive, and various cables and accessories, all designed for straightforward installation and operation. Whether you're cruising or racing, the Garmin Reactor 40 system ensures your powerboat maintains its course with minimal effort, allowing you to focus on enjoying your time on the water.
Constructed with durable materials, the components are built to withstand harsh marine environments. The Reactor 40's compact size and lightweight design make integration into existing navigation setups simple, while its compatibility with steering cylinders from 4 to 24 cubic inches provides versatile installation options. This autopilot system is ideal for those seeking a high-performance, reliable, and easy-to-use solution for powerboat navigation, enhancing safety and confidence during every trip on the water.

Features:

• Hydraulic corepack designed for powerboats with precise course control

• SmartPump v2 for improved thermal performance, reliability, and lower power consumption

• 9-axis AHRS provides flexible mounting and reduces heading error

• Auto-reacts to sea conditions, maintaining course even during pitching or rolling

• Easy calibration process for quick setup

• Remote control compatibility with Garmin devices, including Reactor remote and select smartwatches

• Shadow Drive technology automatically disengages autopilot when steering manually

• GHC 50 autopilot display with 800 x 480 WVGA touchscreen, Wi-Fi, Ethernet, and NMEA 2000 connectivity

• Supports advanced navigation features like heading hold, step turns, wind hold, and tack/jibe with optional sensors

• Complete kit includes core components, cables, shadow drive, and accessories for straightforward installation
