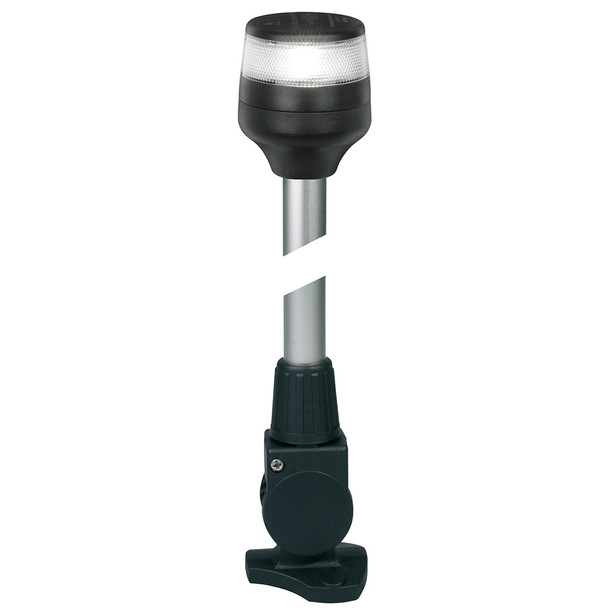

Hella Marine NaviLED 360 Compact All Round Lamp - 2 Nautical Miles Visibility - 12-Inch Fold Down Base - Black

NaviLED 360 Compact All Round Lamp - 2nm - 12" Fold Down Base - Black

Hella marine NaviLED 360 lamps feature single LED efficiency, advanced Multivolt electronics and precision optics for reliable and highly visible all round lighting

Using only high performance materials the NaviLED 360 Compact series is long term durable in demanding marine environments.

A power consumption of less than 1W power offers exceptional power efficiency for a 2 NM all round anchor lamp.

Each lamp is completely sealed (IP67) and manufactured using Swiss Made Grilamid with unsurpassed properties. Long term stability against UV degradation coupled with high impact and chemical resistant meaning these lamps will not yellow, become embrittled or corrode.

Internationally approved the NaviLED 360 series meets the requirements of COLREG, USCG, ABYC-16, RCD and WHEELMARK. Multivolt circuitry provides constant illumination and circuit protection from 9-33V DC.

Hella marine LED navigation lamps are expertly designed and precision manufactured in New Zealand and backed a 5-year warranty for complete peace of mind.

Specifications:

• Material Description: UV resistant, enhanced impact acrylic lens.Anodized aluminium lamp base and pole


• Minimum Visible Distance: 2 Nautical Miles (Yachts and Powerboats)


• Cable: Pre-wired with 1.5M of twin core marine cable


• Operating Voltage: Multivolt 9-33V DC


• Voltage Protection: Spike protected to +500 volts. Reverse polarity protected to -500 volts


• Power Consumption: < 1.0W


• Degree of Protection: IP 67 - Completely Sealed


• Weight: 250g (including cable)




• Approvals: IMO Col Reg 72, Wheelmark, USCG, ABYC A-16, RCD, Maritime NZ

The Hella Marine NaviLED 360 Compact All Round Lamp is a high-efficiency navigation light designed for reliable marine use. Featuring a single LED with advanced multivolt electronics and precision optics, this lamp provides highly visible all-round lighting with a minimum visibility range of 2 nautical miles, suitable for yachts and powerboats. Its compact design and power consumption of less than 1 watt make it an energy-efficient choice for marine illumination.
Constructed from durable, high-performance materials, the NaviLED 360 series is built to withstand demanding marine environments. The sealed IP67 enclosure ensures complete protection against dust and water ingress, while the Swiss-made Grilamid lens resists UV degradation, impacts, and chemicals. The anodized aluminum base and pole enhance durability and resistance to corrosion, making this lamp suitable for long-term use in harsh conditions.
This navigation lamp complies with international standards including COLREG, USCG, ABYC-16, RCD, and Wheelmark. Its multivolt circuitry operates seamlessly within a voltage range of 9 to 33 volts DC, with spike protection up to +500 volts and reverse polarity protection to -500 volts, ensuring consistent performance. Pre-wired with 1.5 meters of marine twin-core cable, the lamp is ready for easy installation. Weighing approximately 0.96 pounds, it is lightweight yet rugged, backed by a 5-year warranty for peace of mind.
Designed and manufactured in New Zealand, the Hella Marine NaviLED 360 Compact is a reliable, energy-efficient, and compliant navigation solution for marine vessels seeking high visibility and durability in a compact form factor.

Features:

• Power Efficiency: Less than 1 watt power consumption for energy savings

• Visibility Range: Minimum of 2 nautical miles for effective navigation

• Construction: UV resistant, impact-resistant acrylic lens paired with anodized aluminum base and pole

• Protection: Fully sealed with IP67 rating for water and dust ingress protection

• Voltage Compatibility: Multivolt circuitry supporting 9-33V DC for versatile use

• Circuit Protection: Spike protected up to +500V and reverse polarity protected

• Pre-wired: Includes 1.5 meters of marine twin-core cable for straightforward installation

• Compliance: Meets COLREG, USCG, ABYC-16, RCD, and Wheelmark standards

• Durability: Swiss-made Grilamid lens offers long-term stability against UV, impacts, and chemicals

• Manufacturing Origin: Precision engineered in New Zealand with a 5-year warranty
