Description

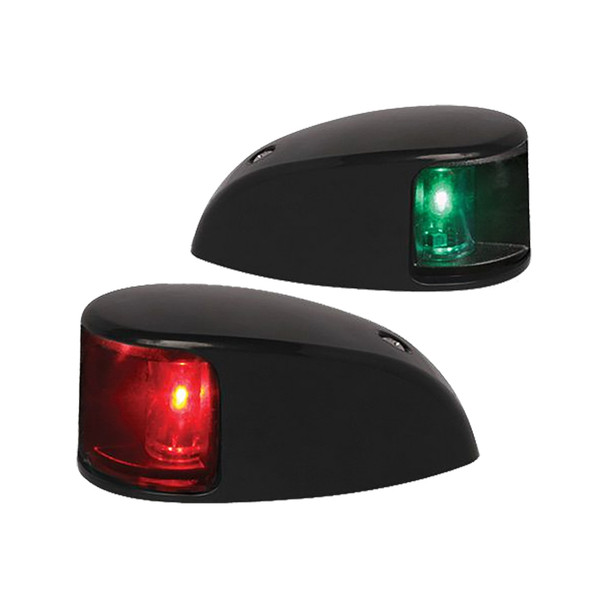

NaviLED Deck Mount Port Starboard Pair - 2nm - Colored Lens/Black Housing
Compact deck mount LED navigation lamps.
Attractive, power saving and ultra reliable.
Ultra low current draw
NaviLED lamps use less than 10% of the power required to run a bulb navigation lamp of the same visible distance. Port and Starboard lamps consume less than 2W combined!
No bulbs, No maintenance, Ultra long service life
Hella marine LED technology has no filaments to break making NaviLED lamps extremely shock and vibration proof for proven reliability and safety in demanding conditions.
Multivolt 8-28V DC
Advanced electronics ensure reliable illumination and lamp protection even under severe voltage fluctuations and low battery voltages.
Safe and highly visible
Hella marine optics deliver 100% correct light output and enhanced visibility compared to bulb navigation lamps.
Fully sealed for life. IP 67 certified
Each NaviLED lamp is a completely sealed unit. High impact housings ensure durability from waves and impact.
Specifications:
- Material Description: UV resistant, enhanced impact resistant acrylic lens High impact shroud
- Minimum Visible Distance: 2 Nautical Miles (Yachts and Powerboats)
- Cable: Pre-wired with 500mm of twin core marine cable
- Operating Voltage: Multivolt 8-28V DC
- Voltage Protection: Spike protected to +500 volts. Reverse polarity protected to -700 volts
- Power Consumption: Port and Starboard less than 2W combined
- Degree of Protection: IP 67 - Completely Sealed
- Weight: 75g (including cable)
- Approvals: IMO Col Reg 72, RINA, USCG, ABYC A-16, Maritime NZ
The Hella Marine NaviLED Deck Mount Port and Starboard Pair offers reliable and energy-efficient navigation lighting for yachts and powerboats. Designed with compact dimensions, these LED lamps provide high visibility at a minimum power draw, making them ideal for vessels seeking durability and efficiency. The lamps feature a colored lens with a sleek black housing, ensuring both functionality and aesthetic appeal. Their advanced LED technology guarantees no filament failure, resulting in an ultra long service life with no need for bulb replacements. The sealed design and high-impact acrylic lens protect against harsh marine environments, waves, and impacts, ensuring reliability in demanding conditions. With a minimum visible distance of 2 nautical miles, these lamps meet international safety standards, including IMO Col Reg 72 and USCG approvals. The integrated electronics support a wide operating voltage range of 8-28V DC, providing consistent illumination even during voltage fluctuations or low battery states. Power consumption is kept below 2W combined for port and starboard lamps, significantly reducing energy use while maintaining bright, correct light output for safe navigation. Each lamp is pre-wired with a 20-inch marine cable for easy installation and features spike and reverse polarity protection for added safety. The IP 67 rating certifies their complete sealing against dust and water ingress, ensuring long-term durability. Constructed from UV-resistant, impact-resistant acrylic with a high-impact shroud, these lamps are built to withstand the rigors of marine environments. Weighing only 2.65 ounces each, they are lightweight yet rugged, making them suitable for a variety of vessel sizes and types. Whether for new installations or upgrades, Hella Marine NaviLED lamps provide a dependable, maintenance-free lighting solution backed by industry standards and certifications.
Features:
- Energy-efficient LED technology draws less than 2W combined for port and starboard lamps
- Universal multivolt operation from 8V to 28V DC with spike and reverse polarity protection
- Sealed IP 67 housing offers complete protection against water and dust ingress
- High-impact acrylic lens and housing for durability against impacts and waves
- Minimum visible distance of 2 nautical miles for safe navigation
- Pre-wired with 20 inches of marine-grade cable for straightforward installation
- Compliant with IMO Col Reg 72, RINA, USCG, ABYC A-16, and Maritime NZ standards
- Shock and vibration resistant with no filaments, ensuring long service life
