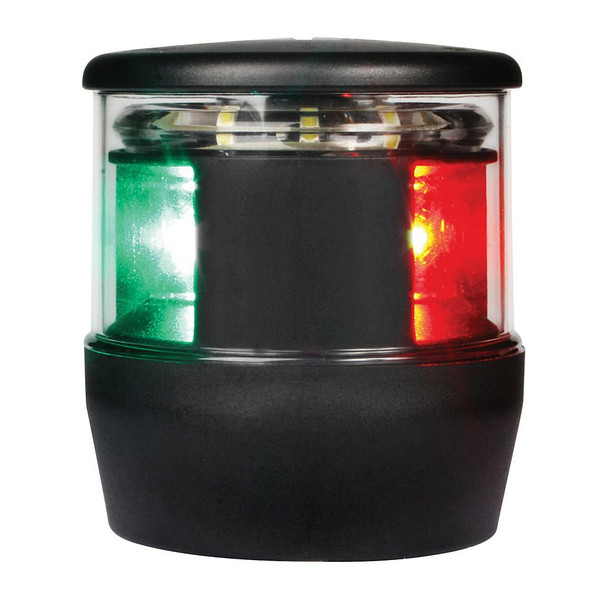

Hella Marine NaviLED TRIO Tri Color Navigation Lamp - 2 nautical miles

NaviLED TRIO Tri Color Navigation Lamp - 2nm

LED Tri Color with Anchor navigation lamp.

Advanced materials and state of the art technology for reliability, efficiency and safety at sea.

Ultra low current draw. Power saving on board.

Port, Starboard and Stern draws less than 3.5W

Fully sealed for life. IP 67 Certified.

Completely sealed, impervious to saltwater and contaminants

Safe and highly visible.

Hella marine lens and optics technology ensures ultra precise horizontal and vertical cut-off angles, clearly indicating a vessels movement and heading

Ultra durable materials. Ultra long service life.

Advanced heavy duty Grilamid lens and housing, plus proven Hella marine LED technology combines to provide outstanding resistance to vibration, impact and shock loads. Relentless test programs have helped lift product reliability to new standards for ongoing performance and safety in the most demanding conditions.

Unique installation and removal system.

The NaviLEDTrio installs on a unique 316 stainless steel mounting shaft for a secure attachment and reliable electrical connections.

Specifications:

• Material Description: UV resistant, high impact nylon


• Lens Material: UV resistant, ultra heavy duty Grilamid lens


• Mounting Shaft: 316 stainless steel


• Minimum Visible Distance: 2 Nautical Miles (Yacht)


• Cable: Pre-wired with 400mm of triple core marine cable


• Operating Voltage: Multivolt 9-33V DC (early version 8-28V DC)


• Voltage Protection: Spike protected to +500 volts Reverse polarity protected to -700 volts


• Power Consumption: Port, Starboard and Stern - Less than 3.5W combined All Round White / Anchor - Less than 1.5W


• Degree of Protection: IP 67 - Completely Sealed


• Weight: 400g (including cable)


• Approvals: BSH, IMO Col Reg 72, USCG, ABYC A-16, Maritime NZ

The Hella Marine NaviLED TRIO Tri Color Navigation Lamp offers reliable and efficient navigation lighting designed for demanding marine environments. Featuring advanced LED technology, this tri-color lamp provides port, starboard, and stern signals with an ultra-low power draw of less than 3.5W, contributing to significant onboard energy savings. Its fully sealed, IP67-rated construction ensures protection against saltwater, dust, and contaminants, making it ideal for long-term maritime use.
Constructed with durable materials, the NaviLED TRIO combines an ultra heavy-duty Grilamid lens and housing with proven Hella marine LED technology. This combination results in outstanding resistance to vibration, impact, and shock loads, ensuring consistent performance even under harsh conditions. The lamp's precise lens and optics technology deliver clear horizontal and vertical cut-off angles, enhancing vessel visibility and safety by accurately indicating movement and heading.
Installation is straightforward with a unique mounting system utilizing a 316 stainless steel shaft for secure attachment and reliable electrical connections. The pre-wired cable extends 16 inches, simplifying setup and wiring. Approved by major maritime standards such as BSH, IMO Col Reg 72, USCG, ABYC A-16, and Maritime NZ, the NaviLED TRIO is suitable for various vessels requiring dependable navigation lighting. Its compact design, weighing just 14 ounces, makes it a practical choice for a range of marine applications. Whether used on yachts or commercial vessels, this lamp ensures maximum visibility, safety, and durability in marine navigation.
Designed for longevity, the NaviLED TRIO operates efficiently across a voltage range of 9-33V DC, with spike and reverse polarity protection. Its low power consumption and robust construction meet the highest standards for safety and reliability, making it an optimal choice for maritime navigation lighting solutions.

Features:

• LED Tri Color with Anchor navigation lamp for multi-directional signals

• Ultra low current draw: port, starboard, and stern less than 3.5W; all round white/anchor less than 1.5W

• Fully sealed IP67 rated construction, impervious to saltwater and contaminants

• Hella marine lens and optics technology for precise horizontal and vertical cut-off angles

• Heavy-duty Grilamid lens and housing for resistance to vibration, impact, and shock

• Unique installation system with 316 stainless steel mounting shaft for secure attachment

• Pre-wired with 16 inches of triple core marine cable for easy setup

• Operating voltage range of 9-33V DC with spike and reverse polarity protection

• Certified to major maritime standards including BSH, IMO Col Reg 72, USCG, ABYC A-16, and Maritime NZ

• Compact and lightweight design suitable for various marine vessels
