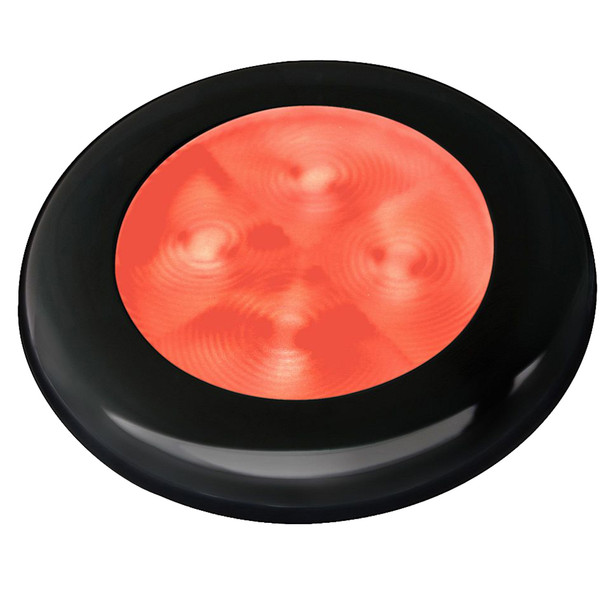

Hella Marine Slim Line LED Courtesy Lamp with Red LED - Black Bezel, 12V

Slim Line LED 'Enhanced Brightness' Round Courtesy Lamp - Red LED - Black Plastic Bezel - 12V

Attractive, energy efficient lighting for interior and exterior use.

Hella Marine round LED courtesy lamps can be installed almost anywhere on board.

Over 3 x brighter than regular Soft Light White and Warm White LED courtesy lamps.

Advanced lens technology provides a cool and even spread of soft light without glare or eye strain. Hella Marine LED courtesy lamps consume a fraction of the energy of traditional bulb lamps and run very cool due to their low current draw of less than 0.5W (less than 0.04A @ 12V). This provides safer installation into light weight materials where the heat of incandescent lamps may cause damage to the surrounding structure.

Each lamp is completely sealed, highly shock, impact and vibration resistant, perfectly suited for the demanding marine environment.

Enhanced brightness lamps include a surface mounting ring with 3 x stainless steel screws. Stainless steel and white rim lamps include a white spacer, black rim lamps a black spacer.

Specifications:

• Lens Material: UV resistant enhanced impact acrylic


• Rim Material: UV resistant plastic. 316 stainless steel


• Dimming: Dimmed via Hella Marine Dimmer 5XA 998 572-001


• Cable: Pre-wired with 120mm of single core marine cable


• Operating Voltage: 12V DC or 24V DC


• Power Consumption: < 0.5W ( < 0.042A @ 12V / < 0.02A @ 24V )


• Degree of Protection: IP 67 - Completely Sealed


• Mounting: Stainless steel screws included


• Weight: 50g (including cable)

The Hella Marine Slim Line LED Courtesy Lamp offers a sleek and energy-efficient lighting solution suitable for both interior and exterior applications on marine vessels. Designed with a black plastic bezel and featuring a vibrant red LED, this lamp provides enhanced visibility and aesthetic appeal. Its compact, slim profile makes it ideal for installation in tight spaces where traditional lighting might be cumbersome.

Equipped with advanced lens technology, the lamp delivers a cool, evenly distributed soft light that minimizes glare and eye strain, making it perfect for navigation, courtesy lighting, or ambiance enhancement. The LED's brightness is over three times greater than standard soft white or warm white courtesy lamps, ensuring effective illumination without excessive power consumption. With a low current draw of less than 0.5W, the lamp consumes minimal energy, reducing load on the vessel's electrical system and preventing heat-related damage to surrounding materials.

Constructed to withstand challenging marine environments, each lamp is fully sealed with an IP67 rating, making it resistant to water, dust, shock, impact, and vibration. The UV resistant impact acrylic lens and durable plastic rim ensure longevity and reliable performance in harsh conditions. Installation is straightforward with stainless steel screws included, and the lamp features pre-wired marine cable for quick setup. Compatible with dimming controls via the Hella Marine Dimmer 5XA 998 572-001, it offers customizable lighting options to suit various needs.

Designed for versatility, the lamp is suitable for 12V DC or 24V DC systems, making it adaptable to different marine power configurations. Its lightweight design, weighing only about 1 ounce, facilitates easy installation without adding significant weight to the vessel. Whether used for courtesy lighting, navigation, or accent illumination, the Hella Marine Slim Line LED Courtesy Lamp combines durability, efficiency, and aesthetic appeal to enhance your marine environment.

Features:

• Enhanced brightness: Over three times brighter than standard soft white or warm white LED courtesy lamps

• Low power consumption: Less than 0.5W or 0.042A at 12V, ensuring energy efficiency

• Durable construction: Fully sealed IP67 rating, UV resistant impact acrylic lens, and shock-resistant design

• Versatile mounting: Surface mount with stainless steel screws included, suitable for various surfaces

• Compatibility: Operates on 12V DC or 24V DC systems with dimming options available
