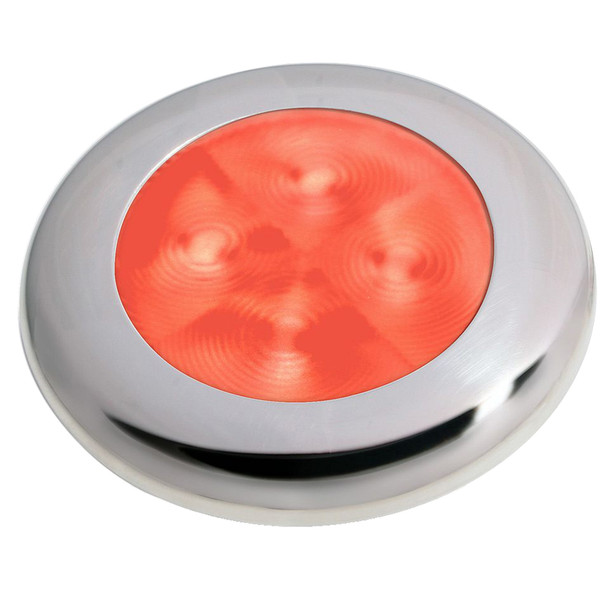

Hella Marine Slim Line LED Red Courtesy Lamp with Stainless Steel Bezel - 12V

Slim Line LED 'Enhanced Brightness' Round Courtesy Lamp - Red LED - Stainless Steel Bezel - 12V

Attractive, energy efficient lighting for interior and exterior use.

Hella Marine round LED courtesy lamps can be installed almost anywhere on board.

Over 3 x brighter than regular Soft Light White and Warm White LED courtesy lamps.

Advanced lens technology provides a cool and even spread of soft light without glare or eye strain. Hella Marine LED courtesy lamps consume a fraction of the energy of traditional bulb lamps and run very cool due to their low current draw of less than 0.5W (less than 0.04A @ 12V). This provides safer installation into light weight materials where the heat of incandescent lamps may cause damage to the surrounding structure.

Each lamp is completely sealed, highly shock, impact and vibration resistant, perfectly suited for the demanding marine environment.

Enhanced brightness lamps include a surface mounting ring with 3 x stainless steel screws. Stainless steel and white rim lamps include a white spacer, black rim lamps a black spacer.

Specifications:

• Lens Material: UV resistant enhanced impact acrylic


• Rim Material: UV resistant plastic. 316 stainless steel


• Dimming: Dimmed via Hella Marine Dimmer 5XA 998 572-001


• Cable: Pre-wired with 120mm of single core marine cable


• Operating Voltage: 12V DC or 24V DC


• Power Consumption: < 0.5W ( < 0.042A @ 12V / < 0.02A @ 24V )


• Degree of Protection: IP 67 - Completely Sealed


• Mounting: Stainless steel screws included


• Weight: 50g (including cable)

The Hella Marine Slim Line LED Courtesy Lamp offers an attractive, energy-efficient lighting solution for both interior and exterior applications on marine vessels. Featuring a bright red LED light, this lamp is designed to enhance visibility and safety aboard boats, yachts, and other marine environments. Its compact, slim profile makes it easy to install in tight spaces and areas where discrete lighting is preferred. The lamp's robust construction and sealed design ensure reliable operation in harsh marine conditions, resistant to shock, impact, and vibration. This durability is complemented by the UV-resistant acrylic lens and stainless steel bezel, which provide long-lasting performance even under prolonged exposure to sunlight and water. The advanced lens technology ensures a cool, evenly distributed soft light without glare or eye strain, making it suitable for navigation, courtesy lighting, or signaling needs. Operating at 12V DC, the lamp consumes less than 0.5 watts, significantly less than traditional incandescent lamps, reducing energy consumption and heat generation. The included surface mounting ring with stainless steel screws simplifies installation. Optional dimming capability is available when used with the Hella Marine Dimmer 5XA 998 572-001, allowing users to adjust brightness levels to suit specific conditions. The pre-wired cable with 4 inches of marine-grade single-core cable ensures a straightforward connection. With an IP67 rating, the lamp is completely sealed against dust and water ingress, making it ideal for demanding marine environments. Its lightweight design, weighing approximately 1.76 ounces, combined with stainless steel and high-impact acrylic materials, guarantees reliable performance and longevity in challenging conditions.

Features:

• Bright red LED light enhances visibility and safety aboard vessels

• Energy-efficient design consumes less than 0.5W, reducing power usage

• Advanced lens technology provides a cool, even, glare-free soft light

• Sealed IP67 rating ensures complete protection against dust and water

• Robust construction with UV-resistant acrylic lens and stainless steel bezel

• Easy installation with included stainless steel screws and surface mounting ring

• Compatible with dimmers for adjustable brightness levels

• Pre-wired with marine-grade wiring for straightforward setup

• Durable design resistant to shock, impact, and vibration in marine conditions
