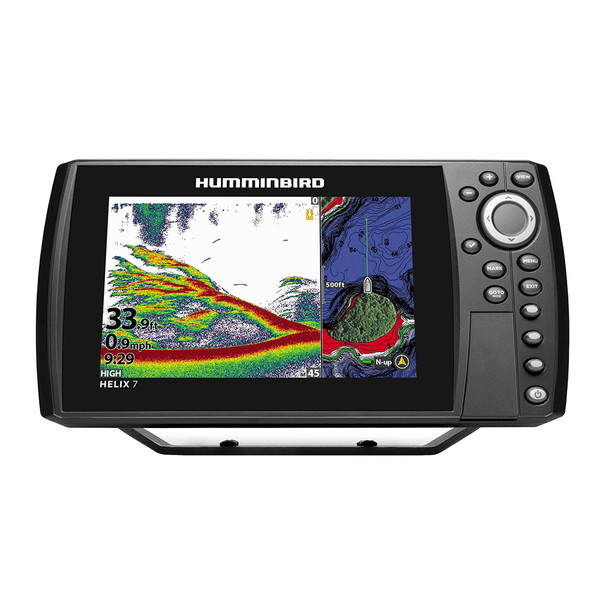

Humminbird HELIX 7 CHIRP GPS G4N Fish Finder with Built-in GPS and Dual Spectrum Sonar

HELIX 7 CHIRP GPS G4N

The HELIX 7 CHIRP GPS G4N fish finder features Dual Spectrum CHIRP Sonar, AutoChart Live, Internal GPS, and Humminbird Basemap built-in. An upgraded high-definition 7" display will give you the best view of the many pre-loaded split screen view options so that you'll never miss a fish. All HELIX 7 G4N models support Ethernet networking, Bluetooth(R), NMEA 2000(R), Wi-Fi, and are compatible with the One-Boat Network(TM), which means you'll have total control of your fishing machine at your fingertips.

Features:

• Keypad control: Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any conditions.


• Dual Spectrum CHIRP sonar: Before you cast, know what's down there thanks to highly detailed fish arches and a clear view of the fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.


• Internal GPS and Humminbird Basemap: Our enhanced base map provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.


• Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster and CoastMaster products, as well as your choice of compatible Navionics charts.


• AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird LakeMaster features. Map depth contours, bottom hardness, and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity.


• One-Boat Network Compatible: These Humminbird models seamlessly integrate and communicate with other Humminbird and Minn Kota products to unlock more features and capabilities for anglers everywhere. Make the more of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network.


• Ethernet Networking: High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.


• Bluetooth: Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors. Additional features include wireless software updates from the Humminbird FishSmart App and a display of smartphone notifications on your Humminbird.


• NMEA 2000 networking built-in: Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking.


• Includes control head, transom-mount transducer, power cable, gimbal mounting bracket, and mounting hardware.


• 1-Year Limited Warranty

Specifications:

• Display Size - Diagonal: 7"


• Display Pixel Matrix: 1024H x 600V


• Sonar-Standard: Dual Spectrum CHIRP


• Sonar-Coverage: 20, 42 60 @ -10dB


• Sonar-Optional: 53 kHz, 50/Low Airmar CHIRP


• CHIRP - Frequencies Supported: 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)


• Sonar-Frequencies Supported: 50/83/200 kHz


• Depth-Sonar: 1,200 ft (standard transducer), 3,500 ft (optional 50 kHz)

The Humminbird HELIX 7 CHIRP GPS G4N offers anglers a powerful combination of advanced sonar technology and navigation features in a compact 7-inch display. Equipped with Dual Spectrum CHIRP Sonar, this fish finder delivers highly detailed images of fish arches, structures, and bottom contouring, enabling precise fishing and exploration. The included high-definition display provides clear split-screen views, enhancing your ability to monitor multiple data sources simultaneously. Its user-friendly keypad control system allows quick access to pre-loaded views and settings, ensuring reliable operation in all weather conditions.

Internal GPS combined with Humminbird Basemap offers comprehensive mapping of over 10,000 lakes and coastal areas across the continental U.S., helping you navigate confidently while fishing. AutoChart Live further enhances your experience by enabling real-time mapping of underwater terrain, including depth contours, vegetation, and bottom hardness. With up to eight hours of recording time and compatibility with AutoChart Zero Line SD cards, you can create detailed maps tailored to your fishing spots.

Designed for seamless connectivity, the HELIX 7 G4N supports Ethernet networking for connecting multiple devices, Bluetooth for wireless control of compatible accessories, and NMEA 2000 for integrating additional boat data. The unit is also compatible with the One-Boat Network, allowing integration with Minn Kota trolling motors and other Humminbird products for a unified fishing experience. The included transom-mount transducer ensures optimal sonar performance, and the device's versatile features make it suitable for both freshwater and coastal fishing adventures. Backed by a one-year limited warranty, the Humminbird HELIX 7 CHIRP GPS G4N is a reliable and feature-rich choice for serious anglers seeking top-tier performance on the water.

Features:

• Keypad control: Easy access to views and settings with softkey controls for reliable operation.

• Dual Spectrum CHIRP sonar: Provides detailed fish arches and structure images using Wide and Narrow modes.

• Internal GPS and Humminbird Basemap: Offers detailed mapping of lakes and coastal areas for navigation and fishing.

• AutoChart Live: Create real-time maps of underwater terrain with up to eight hours of recording capacity.

• One-Boat Network Compatible: Seamlessly integrates with other Humminbird and Minn Kota devices for enhanced control.

• Ethernet Networking: Connect multiple devices for a comprehensive fishing system.

• Bluetooth: Wireless control of compatible anchors and access to smartphone notifications.

• NMEA 2000 support: Connect additional boat systems for performance and weather data.

• Includes transducer, power cable, mounting hardware, and control head.
