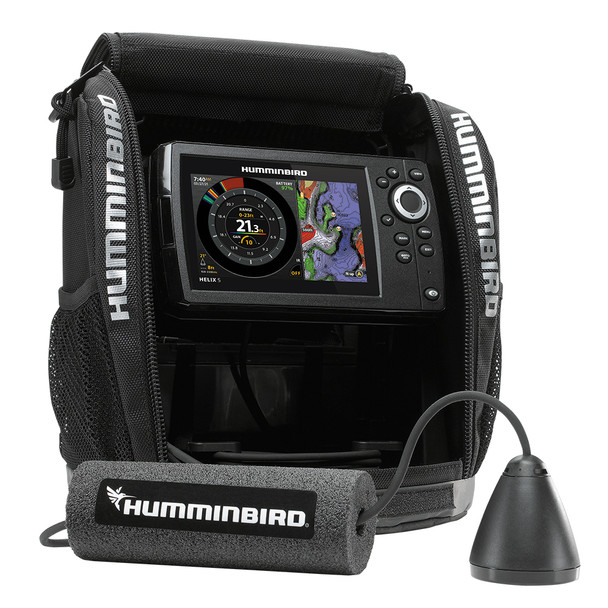

Humminbird ICE HELIX 5 CHIRP GPS G3 Fishfinder and Sonar Combo

ICE HELIX 5 CHIRP GPS G3 - Sonar/GPS Combo

The ICE HELIX 5 CHIRP GPS G3 will not only help you catch the fish but will also help you find where to catch them. Take advantage of outstanding features like Dual Spectrum CHIRP Sonar with 3/4" target separation, CHIRP Interference Rejection, built-in GPS with Humminbird Basemap, and compatibility with both LakeMaster(r) or Navionics(r) maps for precision fishing. Additional features designed specifically for the ICE angler, including AutoChart Live ICE, Jig Charge Mode, and split-screen views separate this unit from all others on the ICE. Take it all in on an ultra-bright 5" full-color HD LCD display.

Features:

• Dual Spectrum CHIRP Sonar: See high-resolution returns of individual fish, bait, and structure on both the flasher and traditional 2D sonar views at greater depths and range, with target separation down to 3/4".


• CHIRP Interference Rejection: Six settings keep competing for sonar signals from cluttering your screen, providing a clear view in both sonar and flasher modes.


• Adjustable Sonar Zoom: Hone in on fish, whether they are tight to the bottom, or suspended high in the water column. Utilize 2X zoom on the flasher screen or up to 16X zoom on the 2D sonar view.


• Internal Precision GPS Built-in: Take the guesswork out of finding your fishing spot. Pinpoint your location by marking waypoints of your most productive areas and navigate out to your spot and back safely with GPS tracks.


• Humminbird Basemap Built-in: Our enhanced standard Basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes.


• AutoChart Live ICE: Create real-time 1-foot contour maps of your fishing spots to find fish faster. Create maps on ICE to show humps and drop-offs or entire reefs, while utilizing Humminbird LakeMaster features, Depth Highlight, Shallow Water Highlight, and Water Level Offset.


• MicroSD Card Reader: Single card reader slot used for premium mapping, software updates or to save screenshots, sonar recordings, and waypoints from your ICE HELIX.


• Ultra Bright and Detailed LCD Display: The ICE HELIX screen provides everything you need to know, on a crystal-clear display with adjustable brightness. Whether in a fish house or on open ICE, you'll easily be able to see digital depth display, sonar returns, and more exclusive features, all shown in real-time.


• Jig Charge Mode: Use your ICE HELIX to charge up your glow-painted spoons and jigs and get back down to the hot bite quickly.

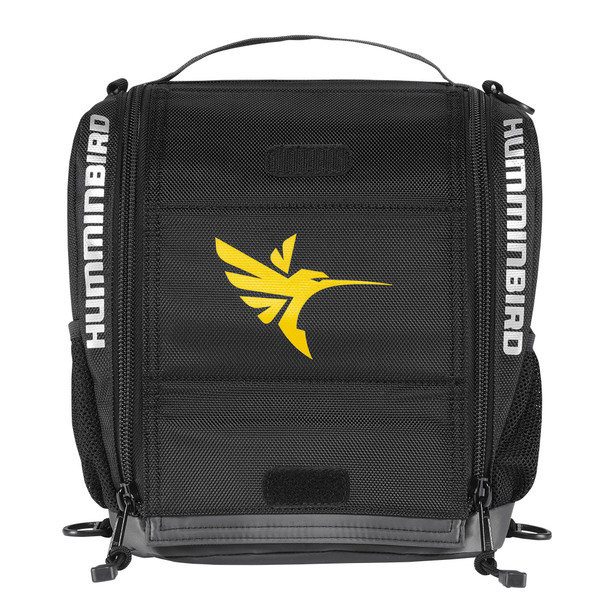

• Portable Shuttle and Carrying Case: The soft-sided carrying case and shuttle mount protect your Humminbird ICE HELIX for safe transport and include built-in cable and transducer management.


• Year-Round Capable: The ICE HELIX 5 CHIRP G3 works with all compatible HELIX 5 CHIRP G3 transducers. Simply install an accessory transducer, power cord, and gimbal mount on your boat and you'll be ready to hit the water even after the ICE melts.


• Whats Included: ICE HELIX 5 CHIRP GPS G3 fishfinder, Dual Spectrum CHIRP ICE transducer, 9Ah battery and charger, ICE shuttle, hardware, power cable, and portable bag.


• 1-Year Limited Warranty

Specifications:

• Display Size - Diagonal: 5"


• Display Pixel Matrix: 800H x 480V


• Sonar-Standard: Dual Spectrum CHIRP


• Sonar-Coverage: 15 21 @ -3dB


• Sonar-Optional: 50 kHz, 50/Low Airmar CHIRP


• CHIRP - Frequencies Supported: 50/200 (28-75/130-250 kHz), 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)


• Sonar-Frequencies Supported: 50/80/200 kHz


• Depth-Sonar: 400 ft


• Interface: Keypad Control


• Features: Dual Spectrum CHIRP, Interference Rejection, Jig Charge Mode, Portable, Built-In GPS, Built-In Mapping, AutoChart Live Ice


• Memory Card Slot: Single Micro SD


• Power Draw: 615 mA


• Power Input: 10.8-20 VDC


• Power Output Peak-to-Peak: 4000 Watts


• Power Output RMS: 500 Watts


• Screen Snap Shot: Included


• Sonar Recording: Included


• Mount-Standard: Portable


• Transducer Mount Location: Portable


• GPS Chartplotting: Included


• GPS Trackplotting: Included


• LakeMaster Compatibility: Yes


• Coast Master Compatibility: Yes


• Navionics Gold/HotMaps Compatibility: Yes


• Navionics Platinum + Compatibility: Yes


• Platinum Compatibility: Yes


• Heading Sensor GPS Compatibility: Yes


• Upgradable Software: Yes


• View Preset Keys: No


• X-Press Menu System: Yes


• Custom Digital Readout: Yes


• Custom View Selections: Yes


• Display Colors Grayscale: 256 Color


• Speed: Included


• Temperature: Built-In


• Temperature Alarm: Yes


• Temperature Graph: No


• Transducer Included: XI 9 1521


• HDMI Compatible: No


• MEGA Live Compatibility: No

The Humminbird ICE HELIX 5 CHIRP GPS G3 offers advanced features tailored for ice anglers seeking precision and clarity on the ice. Its 5-inch full-color HD LCD display provides excellent visibility in any lighting condition, allowing you to monitor sonar returns, depth, and navigation data in real-time. The dual spectrum CHIRP sonar delivers high-resolution images of fish, bait, and structure with target separation down to 3/4 inch, making it easier to distinguish individual targets at various depths. This sonar system supports multiple frequencies, including 50/200 kHz and 83/200 kHz, with a maximum depth coverage of 400 feet, ensuring comprehensive scanning of underwater terrain beneath the ice. The unit’s interference rejection feature minimizes clutter from multiple sonar signals, maintaining a clear view during demanding conditions.

The built-in GPS with Humminbird Basemap provides accurate positioning, waypoint marking, and navigation. It includes detailed maps of over 10,000 lakes and is compatible with LakeMaster and Navionics mapping options for enhanced underwater and shoreline detail. AutoChart Live ICE functionality allows you to create real-time 1-foot contour maps of your favorite spots, highlighting humps, drop-offs, and reefs directly on the ice. The device features a MicroSD card slot for easy map updates, software upgrades, and data storage such as sonar recordings and waypoints. For added convenience, Jig Charge Mode enables you to quickly recharge glow-painted jigs and spoons, ensuring you're ready for the next strike.

Designed for portability and durability, the Humminbird ICE HELIX 5 G3 comes with a portable shuttle and soft-sided carrying case that manages cables and transducer storage efficiently. It is compatible with all ICE transducers and can be used year-round, making it versatile for both ice and open-water fishing. Included accessories comprise the fishfinder unit, dual spectrum CHIRP transducer, 9Ah battery with charger, ice shuttle, hardware, power cable, and carrying case. With a 1-year limited warranty, this system provides a reliable solution for serious ice anglers aiming for better catches and efficient navigation on the ice.

Features:

• Dual Spectrum CHIRP Sonar: High-resolution imaging of fish, bait, and structures with target separation down to 3/4 inch.

• CHIRP Interference Rejection: Six settings to minimize clutter and ensure clear sonar display in busy environments.

• Adjustable Sonar Zoom: Up to 16X zoom on 2D sonar and 2X on flasher to focus on specific depths or suspended targets.

• Built-in GPS with Humminbird Basemap: Accurate positioning, waypoint marking, and detailed lake charts for over 10,000 lakes.

• AutoChart Live ICE: Create real-time 1-foot contour maps of underwater terrain directly on the ice.

• MicroSD Card Slot: For map updates, data storage, and software upgrades.

• Ultra-Bright Full-Color LCD Display: Clear visibility of sonar returns, depth, and navigation features in any lighting condition.

• Jig Charge Mode: Recharge glow-painted jigs and spoons quickly for continuous fishing action.

• Portable Design with Shuttle and Carrying Case: Easy transport and cable management for all-season use.

• Year-Round Compatibility: Works with all compatible ICE and boat transducers, suitable for ice and open-water fishing.
