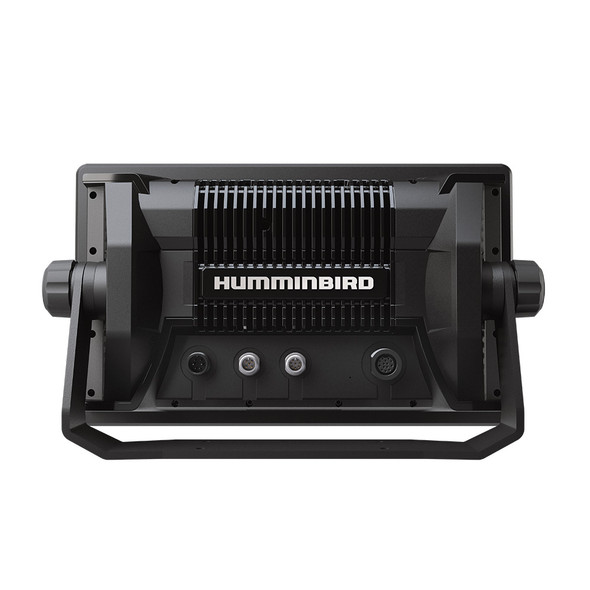

Humminbird XPLORE 12 CMSI+ Fish Finder with Full HD Touchscreen and Mega Imaging Plus

XPLORE 12 CMSI+

THE XPLORE 12 CMSI+ features a 12 ultra-clear display with intuitive Cross Touch, MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP Sonar, and internal GPS with Humminbird Basemap. Unique to the XPLORE Series is the inclusion of Humminbird LakeMaster and CoastMaster map cards with 13 regions in the United States and Canada. This XPLORE 12 CMSI+ model includes Wi-Fi, NMEA 2000, Bluetooth, and Ethernet networking for compatibility with the One-Boat Network family of Humminbird, Minn Kota, and Cannon products.

Features:

Full-HD Display with Cross Touch interface:

• XPLORE delivers eye-popping detail with a 1280H x 800V display. See the incredible detail of sonar and chart images that will ensure you never miss a thing. Control it all using the touchscreen or the keypadits up to you.

Dual Spectrum CHIRP Sonar:

• Before you cast, know whats down there thanks to highly-detailed fish arches and a clear view of the fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.

MEGA Side Imaging+:

• See the world below like never before with crystal-clear Side Imaging viewing out to 200 feet on either side of your boat. Youll unlock more fish and structure with 20% more detail and 60% more range capability than MEGA Side Imaging sonar.

MEGA Down Imaging+:

• Get unprecedented underwater clarity with Down Imaging coverage down to 200 feet below your boat. Youll unlock more fish and structure with 20% more detail and 60% more depth capability than MEGA Down Imaging sonar.

Industry-leading Humminbird Sonar:

• Equipped with MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar to keep you on the fish. MEGA Imaging+ provides views up to 250 under and out to either side of your boat and Dual Spectrum CHIRP shows exceptional 2D sonar with superior target separation and fish clarity.

Internal GPS and Humminbird Basemap:

• Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.

Premium Chart Compatible:

• Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbirds LakeMaster and CoastMaster products, as well as your choice of compatible Navionics charts. Includes LakeMaster and CoastMaster mapping cards with North American standard data.

AutoChart Live:

• Create real-time maps of your fishing spots, with access to patented Humminbird LakeMaster features. Map depth contours, bottom hardness, and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity.

One-Boat Network Compatible:

• Many Humminbird models seamlessly integrate and communicate with Minn Kota and Cannon products to unlock more features and capabilities for anglers everywhere. Make more of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network.

Ethernet Networking:

• High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.

Bluetooth:

• Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors, as well as Cannon Optimum downriggers. Additional features include wireless software updates from the Humminbird One-Boat App and a display of smartphone notifications on your Humminbird.

NMEA 2000 Networking Built-in:

• Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking.

Warranty:

• 2-Year Limited Warranty

Includes:

• Control head


• Power adapter


• Unit cover


• Mounting bracket


• Transducer

Compatible With

Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, Minn Kota Talon/Raptor, Minn Kota i-Pilot Link, Minn Kota Built-In MEGA SI, MEGA Live, NMEA 2000, MEGA 360, Radar, AutoPilot, One-Boat Network

Specifications:

• Memory Card Slot: Dual Micro SD


• Sonar-Standard: Dual Spectrum CHIRP, MEGA Side Imaging+, MEGA Down Imaging+


• Sonar-Optional: 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low


• CHIRP - Frequencies Supported: Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz)


• Sonar-Frequencies Supported: 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA


• Depth-Sonar: 3,500 ft (optional 50 kHz), 1,200 ft (standard transducer)


• CHIRP - Imaging Frequencies Supported: 455 kHz SI+ (405-505 kHz), 455 kHz (420-520 kHz), MEGA SI+ (1050-1175 kHz)


• Depth-Down Imaging: 200 ft (MEGA), 400 ft (455 kHz)


• Range-Side Imaging (Side-To-Side): 800 ft (455 kHz), 250 ft (MEGA)


• Interface: Touch Screen, Keypad Control


• Power Input: 10.8-20 VDC


• Power Output Peak-to-Peak: 8000 Watts


• Power Output RMS: 1000 Watts


• Screen Snap Shot: Included


• Sonar Recording: Included


• Mount-Standard: Gimbal


• Mount-Standard Size: 14.145 in W x 8.911 in H x 3.989 in D


• Mount-Optional: In-Dash Mounting Kit


• Mount-Optional Size: 14.145 in W x 8.911 in H x 3.989 in D


• Transducer Mount Location: Transom


• GPS Chartplotting: Included


• GPS Receiver: Internal


• GPS Trackplotting: Not Supported


• Waypoints, Routes, Tracks/Points: 10,000, 50, 50/20,000


• 360 Imaging Compatibility: Yes


• MEGA Live Compatibility: Yes


• Humminbird Basemap: Included


• LakeMaster Compatibility: Yes


• CoastMaster Compatibility: Yes


• Navionics Gold/HotMaps Compatibility: Yes


• Navionics Platinum+ Compatibility: Yes


• Platinum Compatibility: Yes


• Minn Kota Advanced GPS Navigation Compatibility: Yes


• Minn Kota i-Pilot Link Compatibility: Yes


• Minn Kota Talon Shallow Water Anchor Compatibility: Yes


• Radar Compatibility: Yes


• 5-Port Ethernet Switch Compatibility: Yes


• AIS Compatibility: Not Supported


• Autopilot Compatibility: No


• Heading Sensor GPS Compatibility: No


• Heading Sensor GPS (NMEA 2000) Compatibility: Yes


• NMEA2000: Included


• Target Separation: 2.5 in


• Upgradable Software: Yes


• View Preset Keys: Yes


• X-Press Menu System: Yes


• Custom Digital Readout: Yes


• Custom View Selections: Yes


• Display Colors Grayscale: 24-Bit


• Display Type: Color TFT


• Speed: Included


• Temperature: Built In


• Temperature Alarm: Yes


• Temperature Graph: Yes


• HDMI Compatible: No


• Warranty: Two-Year Warranty

The Humminbird XPLORE 12 CMSI+ is a high-performance fish finder designed for serious anglers seeking detailed underwater views and advanced navigation features. Featuring a vibrant 12-inch Full HD color TFT display with a Cross Touch interface, this unit offers intuitive control through both touchscreen and keypad, allowing you to easily access sonar, charts, and settings. The crystal-clear display ensures you can interpret sonar images and mapping data with precision, even in bright sunlight, making it easier to identify fish and underwater structures.

Equipped with industry-leading Dual Spectrum CHIRP Sonar, the XPLORE 12 CMSI+ delivers detailed images of fish arches and structure, with two search modes—Wide for broad coverage and Narrow for focused detail. The device’s MEGA Side Imaging+ and MEGA Down Imaging+ provide unprecedented underwater clarity, extending out to 200 feet below and 200 feet to each side of your boat. These imaging capabilities reveal more fish-holding structures, cover, and bottom features, giving anglers a significant advantage.

The internal GPS, combined with Humminbird Basemap, offers comprehensive mapping of over 10,000 lakes and coastal areas across the U.S. and Canada. Users can create real-time AutoChart Live maps of their favorite spots, recording depth contours, bottom hardness, and vegetation. The unit also supports premium chart options, including LakeMaster, CoastMaster, and Navionics charts, providing versatility for various fishing environments. Connectivity features such as Wi-Fi, Bluetooth, Ethernet, and NMEA 2000 enable seamless integration with Minn Kota, Cannon, and other compatible marine electronics, enhancing your overall fishing and navigation experience.

Designed for customization and expandability, the XPLORE 12 CMSI+ supports multiple networking options, including Ethernet and NMEA 2000, allowing you to build a comprehensive fish-finding system. Wireless control of accessories like shallow water anchors and downriggers is available via Bluetooth, and the unit supports high-speed data transfer for software updates and notifications. With a 2-year limited warranty, this fish finder is built to perform reliably on the water and is compatible with a wide range of accessories, including transducers, mounts, and additional mapping options, making it an ideal choice for anglers who demand precision and advanced features in their fishing gear.

Features:

• Full-HD 12-inch color TFT display with Cross Touch interface: Delivers sharp, detailed sonar and chart images with intuitive control options.

• Dual Spectrum CHIRP Sonar: Provides highly detailed 2D images with wide and narrow modes for versatile searching.

• MEGA Side Imaging+ and MEGA Down Imaging+: Extend your underwater view up to 200 feet below and 200 feet to the sides with 20% more detail and 60% more range than previous MEGA models.

• Industry-leading sonar technology: Includes MEGA Imaging+ and Dual Spectrum CHIRP for superior target separation and fish clarity.

• Built-in GPS with Humminbird Basemap: Offers detailed underwater topography and points of interest, with over 10,000 lakes and coastal coverage.

• AutoChart Live: Create real-time maps of your fishing spots, recording depth, bottom hardness, and vegetation with up to 8 hours of recording capacity.

• Connectivity: Wi-Fi, Bluetooth, Ethernet, and NMEA 2000 enable seamless integration with other marine electronics and accessories.

• Compatibility with premium charts: Supports LakeMaster, CoastMaster, Navionics Gold/HotMaps, and Platinum+ for comprehensive mapping options.

• One-Boat Network integration: Connects with Minn Kota and Cannon products for advanced boat control and fish-finding features.

• Versatile mounting options: Includes a control head, mounting bracket, unit cover, power adapter, and transducer, suitable for various boat configurations.

• Power and performance: 8000 Watts peak-to-peak power output, with a depth capacity of up to 1,200 feet for sonar and 200 feet for imaging.

• Additional features: Supports waypoints, routes, and tracks with capacity for 10,000 points, includes snapshot and sonar recording functions, and features a user-friendly interface.
